Super X11DPG-OT-CPU User's Manual

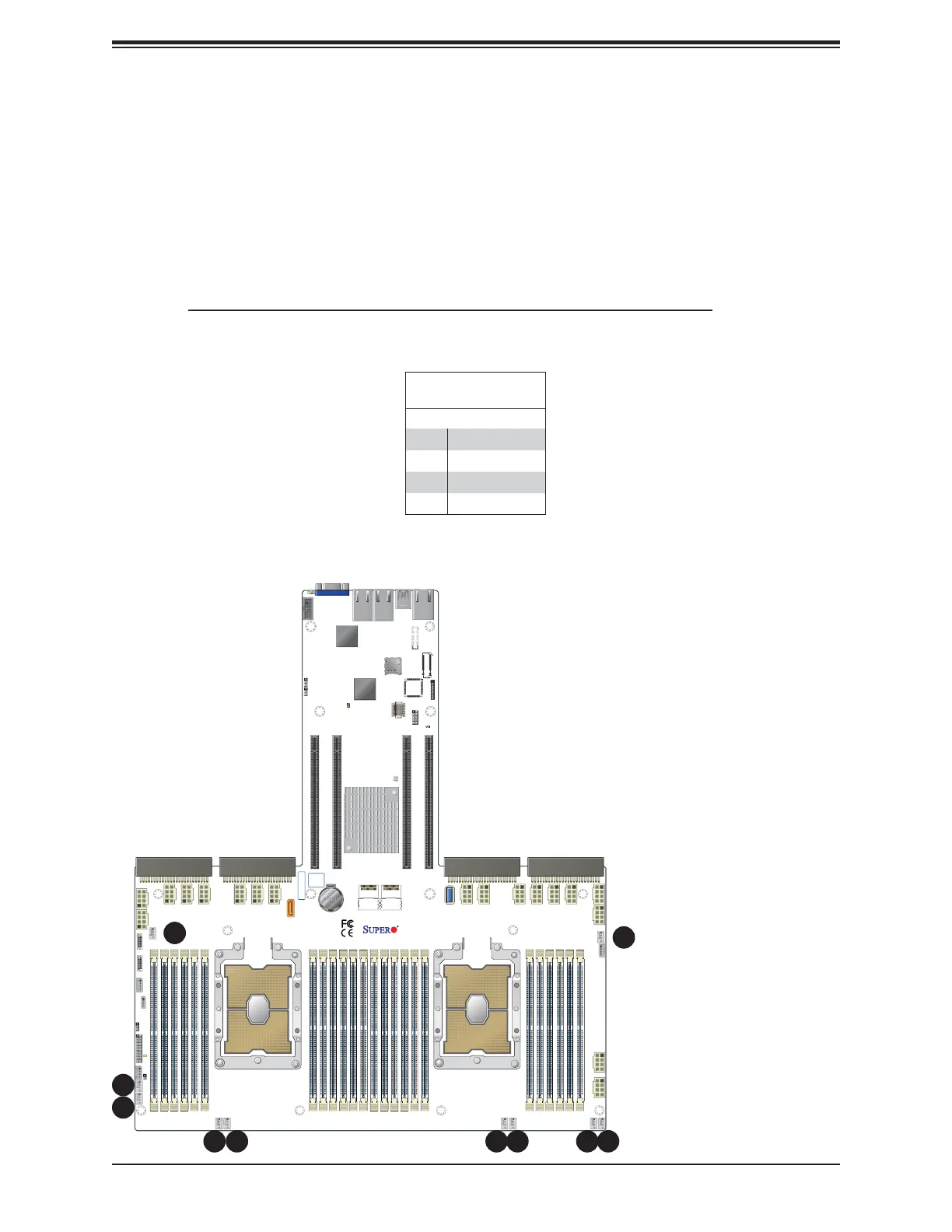

Onboard Fan Headers
There are ten onboard fan headers (FAN1-FAN10) is located on the motherboard. FAN1-
FAN8 are used for system cooling, and FAN9/FAN10 are used as Active CPU heatsink fans.
All onboard fans are 4-pin fan headers, which are backward compatible with traditional 3-pin
fans. However, only 4-pin fans can support fan speed control (via Hardware Monitoring in the
BMC). Please use all 3-pin fans or all 4-pin fans on the same motherboard.
Headers
Fan Header
Pin Defi nitions
Pin# Defi nition
1 Ground (Black)
2 +12V (Red)
3 Tachometer
4 PWM Control
IPMI CODE
BIOS
LICENSE
X11DPG-OT-CPU
REV:1.00
SMCI-Proprietary PCI-E x24 Slot
S-SATA0
JNCSI
CN10
FAN8
F
AN7
FAN10
FAN5
FAN4
FAN3
FAN9
J31J33
J34
JPW12JPW11
JPW21
JPW22
JPW19 JPW20
JPWR1
JPWR2
JPWR3 JPWR4 JPWR5
JPWR6
JPWR7
JPWR8
JPWR9
JPWR10
JPWR13
JPWR15
JPWR14
JPWR16
JPWR12
JPWR
11
CN11
LE2
LE1
JBT1
JF1
JRK1
BT1
JSDCARD1
JTPM1
JP2
JNVI2C1
JNVI2C2
JIPMB1
JUIDB1
JWD1
JPME1
JL1
JS2
JS1
BIOS
J32
FAN6
FAN2 FAN1
JPG1
SD CARD
SATA0-3 SATA4-7
UID
COM1
VGA
LAN2
LAN1
USB3/4
(3.0)
IPMI_LAN
USB1/2 (3.0)
CPU2
USB0
CPU1
BATTERY
P2-DIMMF2 P2-DIMME1 P2-DIMME2 P2-DIMMD1 P2-DIMMD2 P2-DIMMA2 P2-DIMMA1 P2-DIMMB2 P2-DIMMB1 P2-DIMMC2 P2-DIMMC1 P1-DIMMF2 P1-DIMME1 P1-DIMME2 P1-DIMMD1 P1-DIMMD2 P1-DIMMA2 P1-DIMMA1 P1-DIMMB2 P1-DIMMB1 P1-DIMMC2 P1-DIMMC1
LEDM1
BMC
SMCI-Proprietary PCI-E x24 Slot
SMCI-Proprietary PCI-E x24 Slot SMCI-Proprietary PCI-E x24 Slot
LAN
CTRL
PCH
LED1
JM2-1
1
9
8 7 6 5
4
3
2
10
1. FAN1
2. FAN2
3. FAN3
4. FAN4
5. FAN5
6. FAN6
7. FAN7
8. FAN8
9. FAN9
10. FAN10
