Super X11DPG-OT-CPU User's Manual

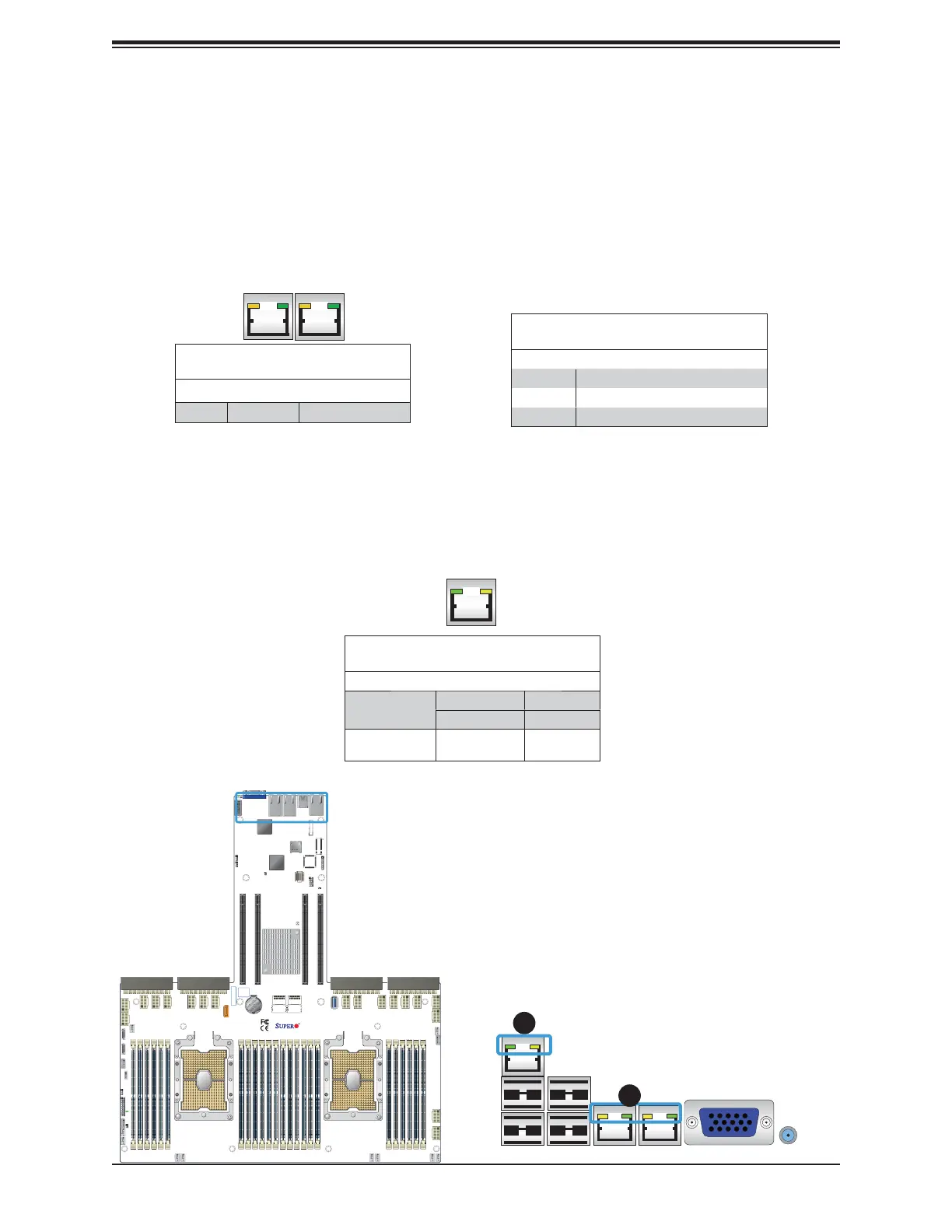

2.9 LED Indicators
1. LAN LEDs
2. IPMI LAN LEDs
1
LAN Link Indicator (Left)
LED Settings
LED Color Defi nition
Off No Connection, 10 or 100 Mbps
Green 10 Gbps
Amber 1 Gbps
IPMI-Dedicated LAN LEDs
In addition to LAN 1/LAN 2, an IPMI LAN is located on the I/O backplane of the motherboard.
The yellow LED indicates activity. Link LED, located on the left side of the LAN port indicates
the speed of the connection. See the table below for more information.
IPMI LAN Link LED (Left) &
Activity LED (Right)
Color State Defi nition
Link (Left) Green: Solid 100 Mbps
Amber: Solid 1 Gbps
Activity (Right) Yellow:
Blinking
Active
LAN LEDs
The LAN ports are located on the IO backplane on the motherboard. Each Ethernet LAN
port has two LEDs. The green LED indicates activity. Link LED, located on the left side of
the LAN port, may be green, amber or off indicating the speed of the connection. See the
tables at right for more information.
GLAN Activity Indicator (Right)
LED Settings
Color State Defi nition
Green Flashing Active
IPMI LAN
LAN 1/2
Link LED
Activity LED
IPMI CODE
BIOS
LICENSE
11D PG-O T-CPU
REV:1.00
2
Link LED
Activity LED
