Supermicro X11SSH-LN4F User Manual

25
Chapter 2: Installation
South Center Edge
North Center Edge

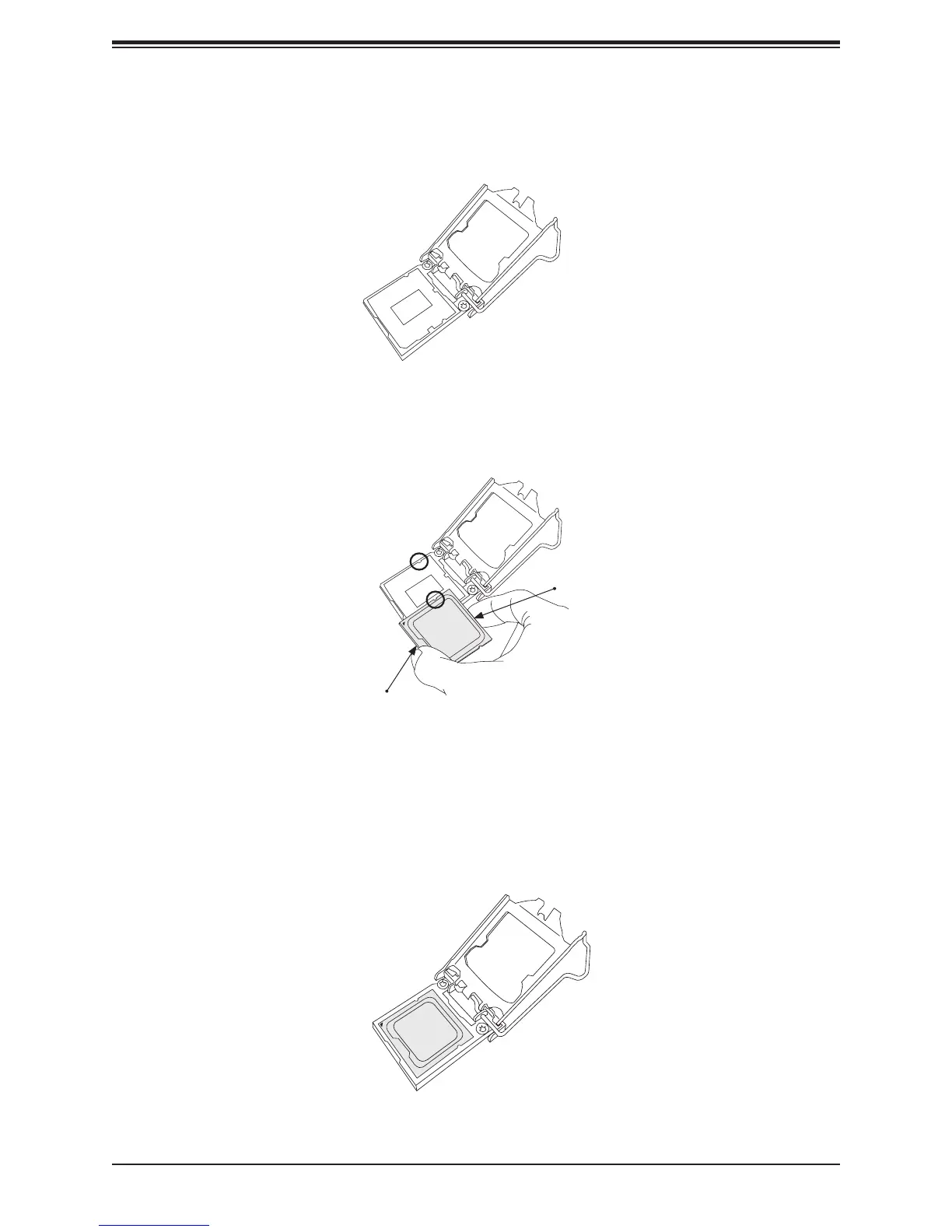

2. Gently lift the load lever to open the load plate. Remove the plastic cap.
3. Use your thumb and your index nger to hold the CPU at the North center edge and the
South center edge of the CPU.
4. Align the CPU key that is the semi-circle cutouts against the socket keys. Once it is
aligned, carefully lower the CPU straight down into the socket. (Do not drop the CPU on
the socket. Do not move the CPU horizontally or vertically).
