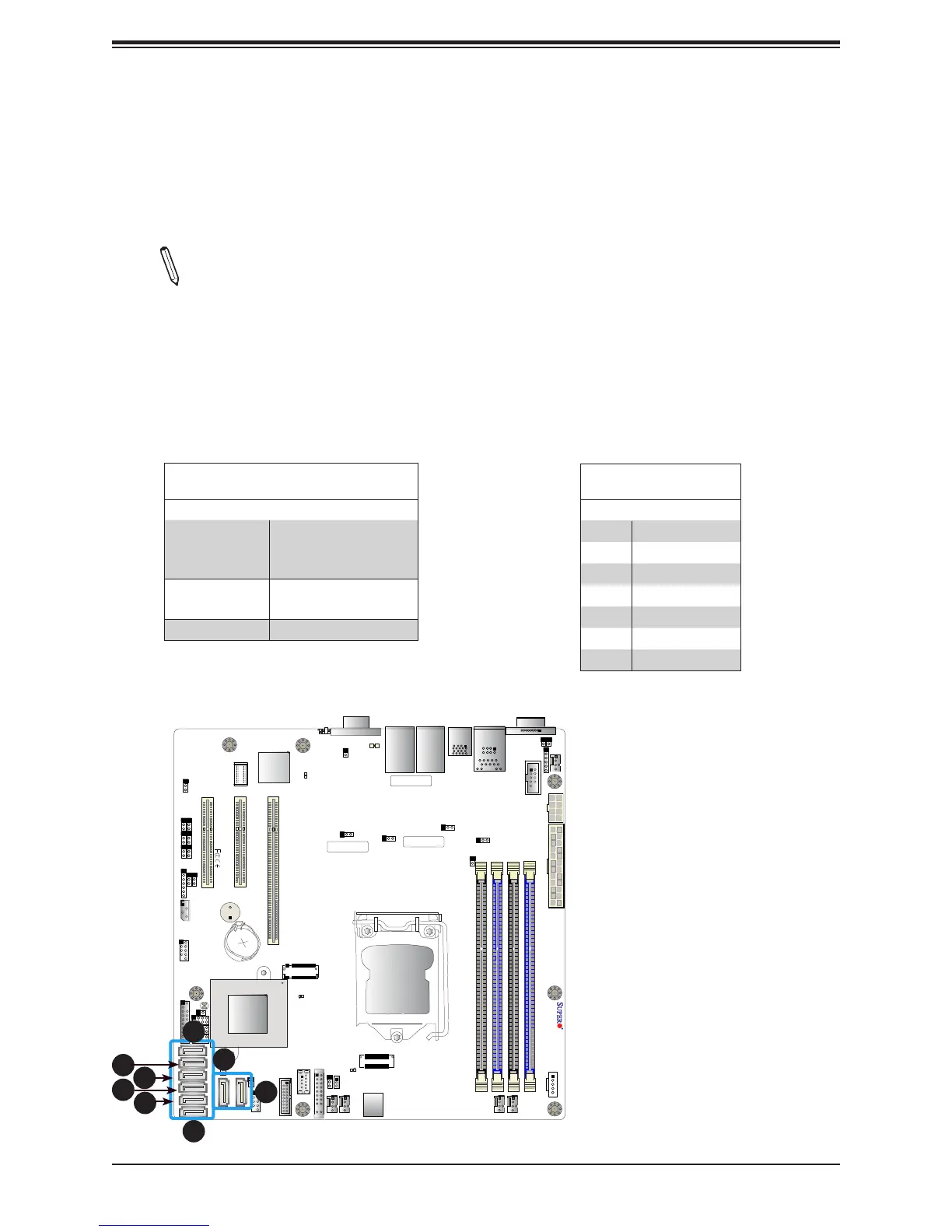

Eight SATA 3.0 connectors are located on the X11SSH-F/-LN4F motherboard, supported by
the Intel C236 PCH chip. These SATA ports support RAID 0, 1, 5, and 10. SATA ports provide
serial-link signal connections, which are faster than the connections of Parallel ATA. Refer to
the tables below for pin denitions.
Note 1: I-SATA0 and I-SATA1 are Supermicro SuperDOMs. These are yellow SATA-
DOM connectors with power pins built in and do not require separate external power
cables. These connectors are backward-compatible with non-Supermicro SATADOMs
that require an external power supply.
Note 2: For more information on the SATA HostRAID conguration, please refer to the
Intel SATA HostRAID user's guide posted on our website at http://www.supermicro.com.
SATA 3.0 Port
Pin Denitions
Pin# Signal
1 Ground
2 SATA_TXP
3 SATA_TXN
4 Ground
5 SATA_RXN
6 SATA_RXP
7 Ground
1
1. I-SATA0
2. I-SATA1
3. I-SATA2
4. I-SATA3
5. I-SATA4
6. I-SATA5
7. I-SATA6
8. I-SATA7
5
6
7
4
3
8
2
X11SSH-F/-LN4F SATA 3.0 Connector
Types
Port # Connection Type
I-SATA0-1
(Two)
SATA 3.0/6 Gb/s
RAID 0, 1, 5, 10
SuperDOM connectors
I-SATA2-7
(Six)
SATA 3.0/6 Gb/s
RAID 0, 1, 5, 10
Supported by Intel C236 PCH-Exp.
To Next Page
