X10DRi/X10DRi-T Motherboard User’s Manual
OPEN 1st
Gently push
down to pop the
load plate open.

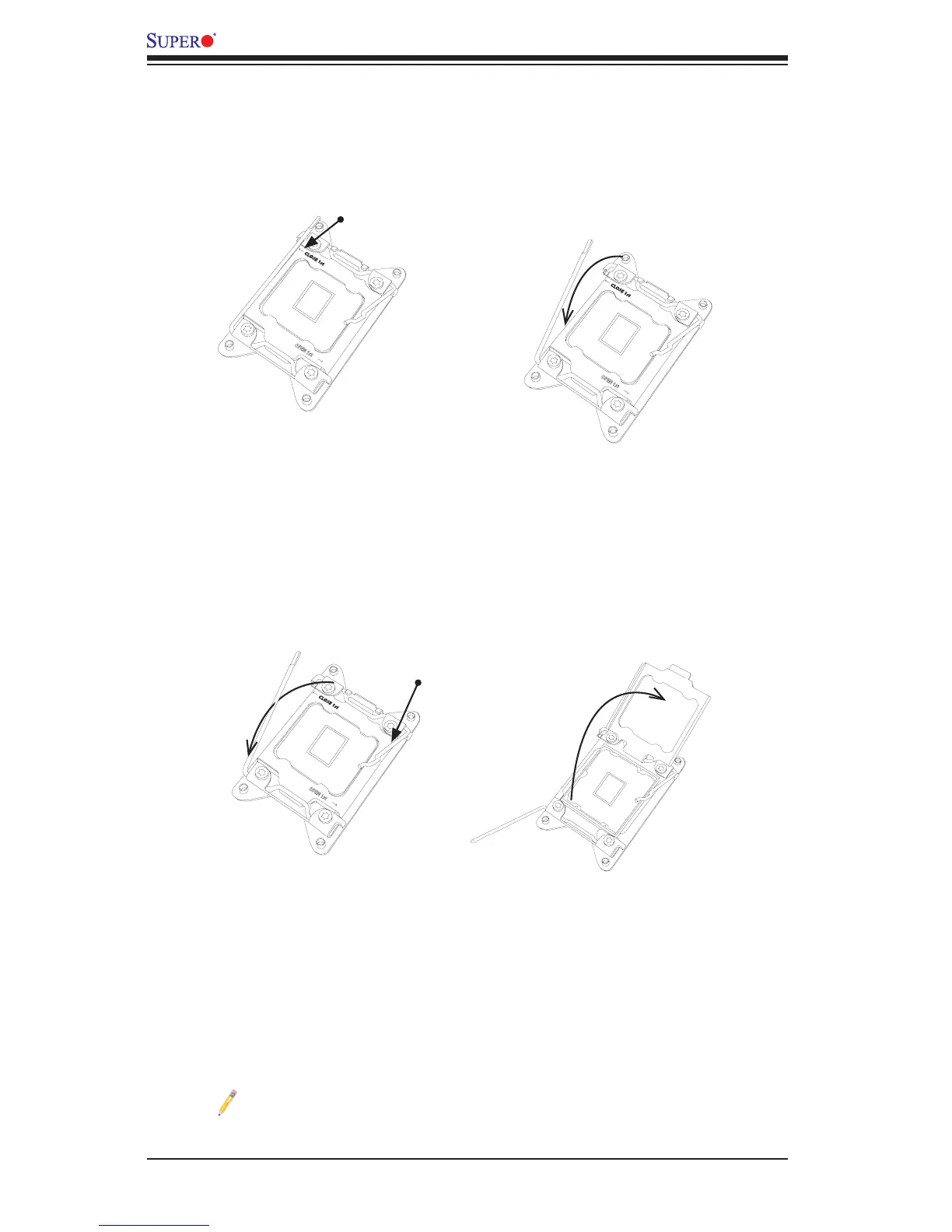

2. Press the second load lever labeled 'Close 1st' to release the load plate that
covers the CPU socket from its locking position.
3. With the lever labelled 'Close 1st' fully retracted, gently push down on the
lever labelled 'Open 1st' to open the load plate. Lift the load plate to open it
completely.
1
2
Press down on
Load
Lever 'Close 1st'
Pull lever away from
the socket
2
Note: All graphics, drawings and pictures shown in this manual are for il-
lustration only. The components that came with your machine may or may
not look exactly the same as those shown in this manual.
