Supero X9DAi User Manual

Chapter 2: Installation
2-21
JPWR1
JPI2C1
LE1
JTPM1
FAN5
FAN7
FAN6
FAN3
FANA
J18
JSD1
SP1
BT1
J29
JBR1
JWD1
STBY1
JPI1
JL1
P2 DIMMH2
P2 DIMMG2
P2 DIMMH1
P2 DIMMG1
P2 DIMME2
P2 DIMMF1
P2 DIMMF2
P1 DIMMA2
P1 DIMMA1
P1 DIMMB2
P1 DIMMB1
P1 DIMMD2
P1 DIMMD1
P1 DIMMC1
USB4
CPU2 Slot5 PCI-E 3.0 x16
CPU1 Slot3 PCI-E 3.0 x16
CPU1 Slot2 PCI-E 3.0 x4 in x8
CPU1 Slot1 PCI-E 3.0 x16
TPM/Port80
USB5/6
JF1
Always Populate DIMMxA First
I-SATA5
I-SATA4
I-SATA3
I-SATA2
I-SATA1
COM1
USB3.0
0/1
I-SATA0
P1 DIMMC2
JPME1
FAN1
CPU2
JSPDIF_In
T-SGPIO1
JBT1
BIOS
JD1
LAN1/2
USB2.0
0/1/2/3
JPWR2
J22
Intel
C602
CPU2 Slot6 PCI-E 3.0 x8
J21
T-SGPIO2
KB/MS
7.1 Audio
Audio
CTRL
GLAN
CTRL
CPLD
S I/O
JPL1
JPL2
CPU2 Slot4 PCI-E 3.0 x8
CLK Buffer
Battery
PS2
USB3.0 2/3
USB 3.0 CTRL
FAN4
FP Audio Header
1394a
CTRL
(CPU1Fan)
(CPU2 Fan)
CNF1
JSPDIF_Out
CNF2
J30
JI2C2
JI2C1
JI2C2
JOH1
X9DAi
Rev.
1.02
I-SAS/
SATA0~3
CPU1
P2 DIMME1
5
6
1. Backpanel USB 2.0 Port 0
2. BP USB 2.0 Port 1
3. BP USB 2.0 Port 2
4. BP USB 2.0 Port 3
5. BP USB 3.0 Port 0
6. BP USB 3.0 Port 1
7. FP USB 2.0 Port 4
8. FP USB 2.0 Port 5/6
9. FP USB 3.0 Port 2/3
1
2
3
4
7
8
9

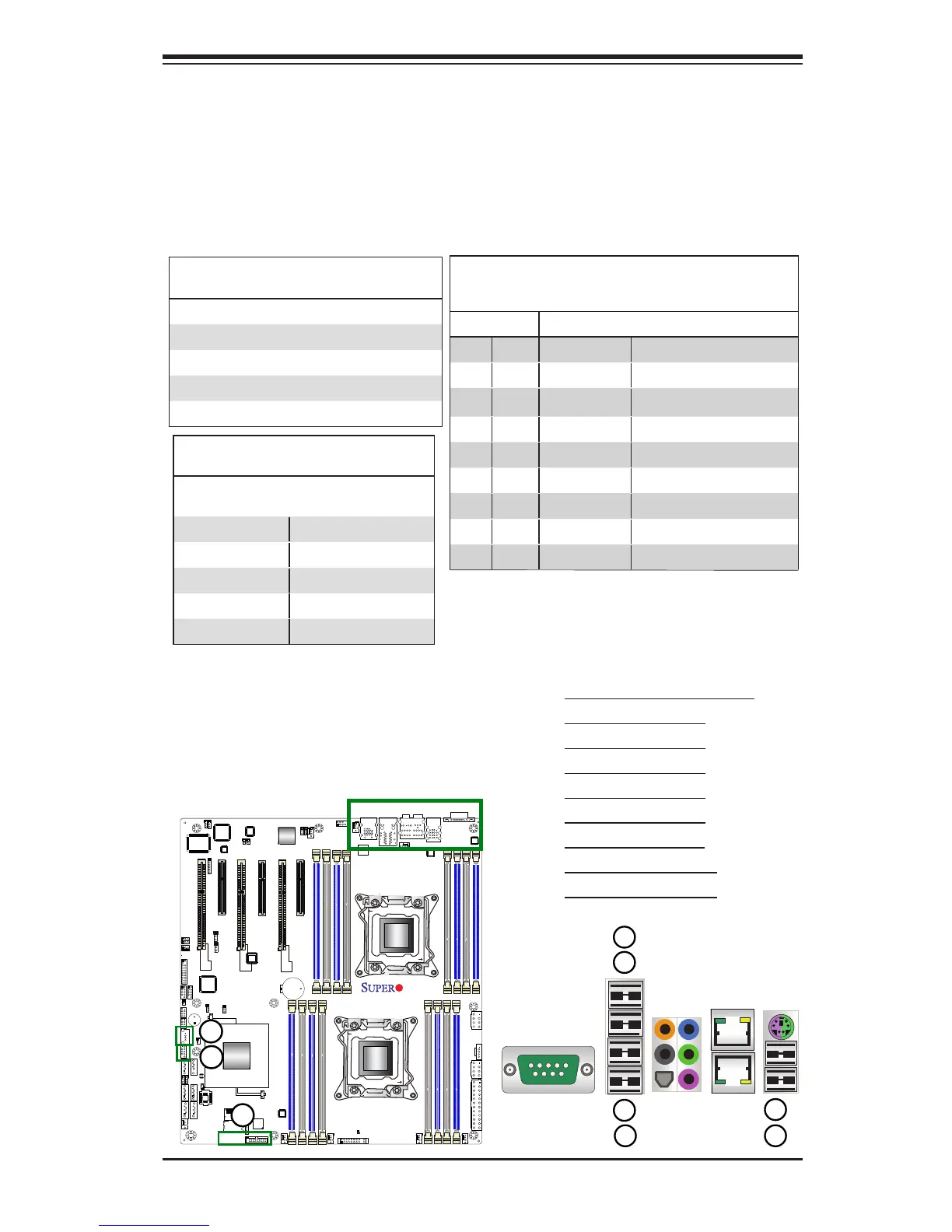

Universal Serial Bus (USB)
Four Universal Serial Bus 2.0 ports (USB 2.0 Ports 0~3) are located on the I/O back
panel. In addition, two USB 3.0 Ports (USB 3.0 Ports 0/1) are also located on the
backplane. Additionally, two USB 2.0 ports (USB 2.0 Ports 4, 5/6), a Type A USB,
and two USB 3.0 ports (USB 3.0 Ports 2/3) are used to provide front chassis access.
USB Cables are not included. See the tables on the right for pin denitions.
Back Panel USB (2.0) #0~3
Pin Denitions
Pin# Denition Pin# Denition
1 +5V 5 +5V
2 USB_PN1 6 USB_PN0
3 USB_PP1 7 USB_PP0
4 Ground 8 Ground
Front Panel USB (2.0) #4, 5/6
Pin Denitions
USB 5
Pin # Denition
USB 4/6
Pin # Denition
1 +5V 2 +5V
3 USB_PN2 4 USB_PN3
5 USB_PP2 6 USB_PP3
7 Ground 8 Ground
9 Key 10 Ground
Back Panel USB (3.0) #0/1, Front Accessible USB (3.0)
#2/3
Pin Denitions
Pin# Pin# Signal Name Description
1 10 VBUS Power
2 11 D- USB 2.0 Differential Pair
3 12 D+
4 13 Ground Ground of PWR Return
5 14 StdA_SSRX- SuperSpeed Receiver
6 15 StdA_SSRX+ Differential Pair
7 16 GND_DRAIN Ground for Signal Return
8 17 StdA_SSTX- SuperSpeed Transmitter
9 18 StdA_SSTX+ Differential Pair
