Superwinch EP Series - W I N C H a S S E M B Ly; Replacement Parts List

12
13
35
7
2
8
4
9
4
49
2
6
41
14
24
1
5
38
33
3
5
35
2
32
6
4
2
9
51
1
3
2
0
2
5
4
3
4
8
46
1
54
56
32
55
51
33
7
38
35
8
31
9
10
11
35
21
19 18
15
36
26
58
1
38
6
4
5
4
22
25
24
37
27
34
44
39
40
41
56
20
2
12
28
47
47
3
58
42
57
34
52
43
14
16
13
29

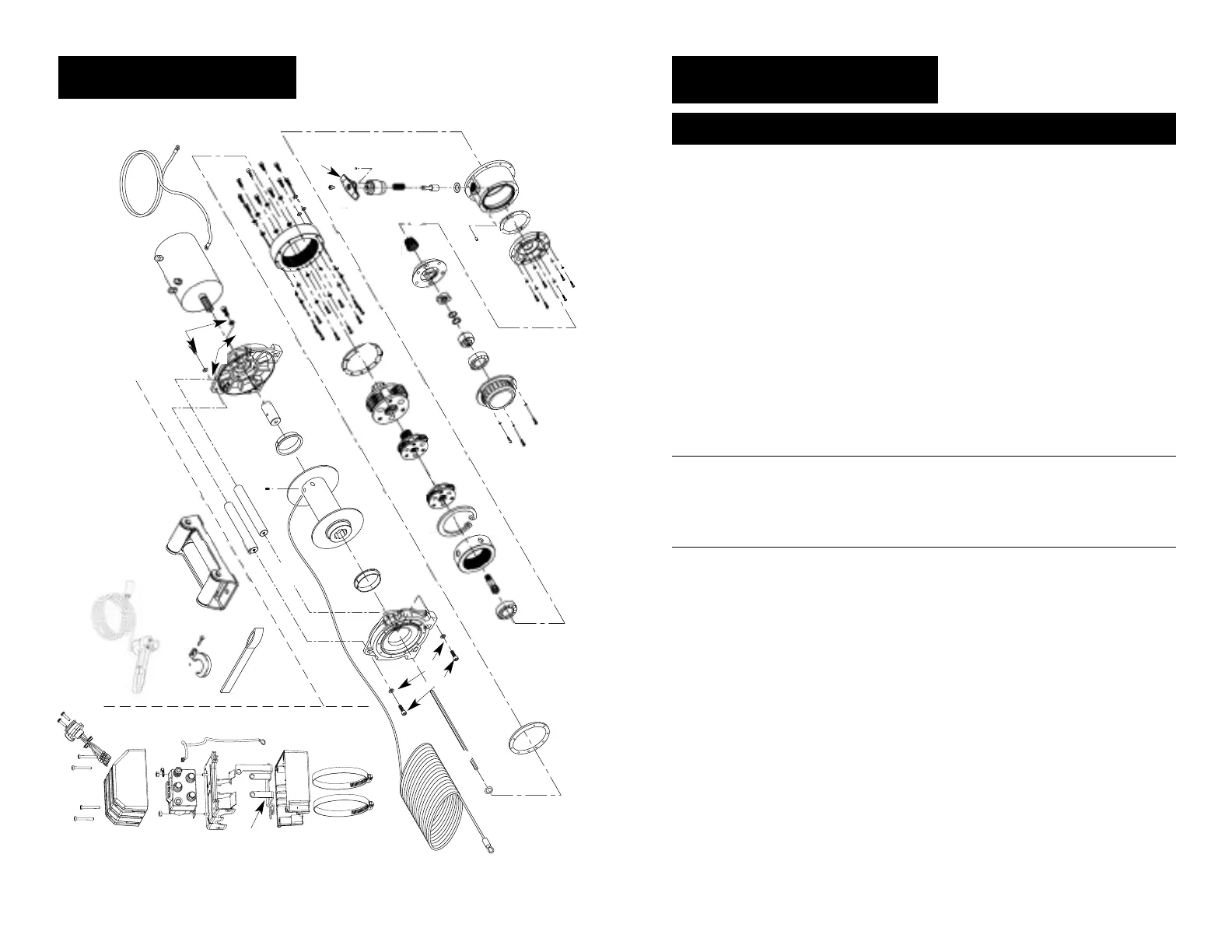

EP12.5 & 16.5
WINCH ASSEMBLY
1 Motor, EP12.5 & EP16.5, 12V 90-30520 1
Motor, EP12.5 & EP16.5, 24V 90-30521 1
2 Motor Support Rack 90-46030 1
3 Gear Support Rack 90-46031 1
4 Drum Bushing (2 per unit) 90-46032 2
5 Drum 90-46037 1
6 Motor Coupling 90-25075 1
7 1st Shaft 90-33463 1
8 1st Shaft Gear 90-33464 1
9 1st Stage Carrier EP12.5 90-33465 1
1st Stage Carrier EP16.5 90-33466 1
10 2nd Stage Carrier 90-33467 1
11 3rd Stage Carrier 90-33468 1
12 1st and 2nd Ring Gear 90-33469 1
13 3rd Ring Gear 90-33470 1
14 Gear Box Cover 90-46033 1
Freespool Assembly 90-46034 1
15 Washer 1
16 Clutch Sleeve 1
18 Spring 1
19 Clutch Knob 1
20 Spring Pin 1
21 Handle 1
43 Retaining Screw 1
Brake Assembly 90-46035
22 Spiral Spring 1
24 Brake Cam 1
25 Cone Brake Disc 1
27 Brake Clutch Base 1
34 Bearing 1
37 C-Rings (2 per assembly) 2
28 Brake Cover 90-46036 1
29 Tie Bar (3 per Unit) 90-33471 3
31 C-Ring 90-25076 1
32 Handsaver Strap 87-31120 1
33 Wire Rope EP12.5 90-33472 1
Wire Rope EP16.5 90-33473 1
34 Bearing 90-25088 1
35 Gasket A (2 per unit) 90-25077 2
36 Gasket B 90-25078 1
38 Tie Bar Screws 90-17382 6
39 Solenoid 12V 90-14452 1
Solenoid 24V 90-14454 1
40 Solenoid Mounting Plate 90-33458 1
41 Lower Solenoid Box 90-41145 1
42 Remote Switch Socket 90-25048-01 1
44 Upper Solenoid Box 90-41144 1
47 Spring Washer 90-17384 6
51 Roller Fairlead 90-30511 1
52 Remote Switch Assembly 90-33450-01 1
55 Clevis Hook (EP12.5) 90-20507 1
Clevis Hook (EP16.5) 90-33474 1
56 Band Clamp 90-25072 2
57 C Ring 90-17383 1
58 Motor Leadwire and Buss Bar Set 90-20511 1
∆ Mounting Hardware 90-25079 1
∆ Not Shown.
REPLACEMENT
PARTS LIST
Reference
Number Description Part Number Qty
