Superwinch S5000 - Torque Specifications

19
REPLACEMENT
PARTS LIST
Reference
Number Description Part Number Qty
TORQUE SPECIFICATIONS
Drum Support Plate 50-60 lb in
Screws
Hawse (Roller Fairlead) 45-55 lb in
Screws
Base Screws 65-75 lb in
Motor 35-40 lb in
TORQUE SPECIFICATIONS
Over torquing
could damage
your winch and void your warranty.
52 12V Wired Solenoid Assembly 89-32327 1
24V Wired Solenoid Assembly 89-32328 1
53
S3000, S4000 8AWG x 5' (neg.) Leadwire Assy. 89-23306-01 1
S5000 2AWG x 5' (pos.) Leadwire Assembly 89-22635-34 1
54
S3000, S4000 8AWG x 5' (pos.) Leadwire Assy.89-23306-04 1
S5000 6AWG x 5' (neg.) Leadwire Assembly. 90-20187-06 1
55 Ground Strap 89-23356 1
56 5/16 Hel Spring Lock Washer 89-23227-08 1
57 5/16-18 Hex Nut 90-23149-07 1
60 6AWG x 3 1/2" Leadwire Assembly 90-23292-06 1
61 12V Solenoid 90-20329 2
24V Solenoid 90-20331 2
62 Buss Bar Assembly 92-10200 1
63 Buss Bar 92-20126 2
64
S3000, S4000 8AWG x 9 3/8" Leadwire Assy. 89-23292-21 1
S5000 6AWG x 9 3/8" Leadwire Assembly 90-20187-08 1
65
S3000, S4000 8AWG x 6" Leadwire Assembly 89-23306-02 1
S5000 6AWG x 6" Leadwire Assembly 89-23292-19 1
66 12V Solenoid Sub-Assembly 90-32250 1
24V Solenoid Sub-Assembly 90-32250-01 1
67 Socket Half Connector 90-25048 1
68 Remote Control Assembly 90-40270-02 1
69 Safety Label. 3/4" icon, 3 x 2 89-20330 1
18
ROLLER FAIRLEAD
SCREWS
MOTOR
SCREWS
DRUM SUPPORT
PLATE SCREWS
DRUM SUPPORT
PLATE SCREWS
67
68
61
54
52
64
63
62
61
60
56
57
55
53
65
63

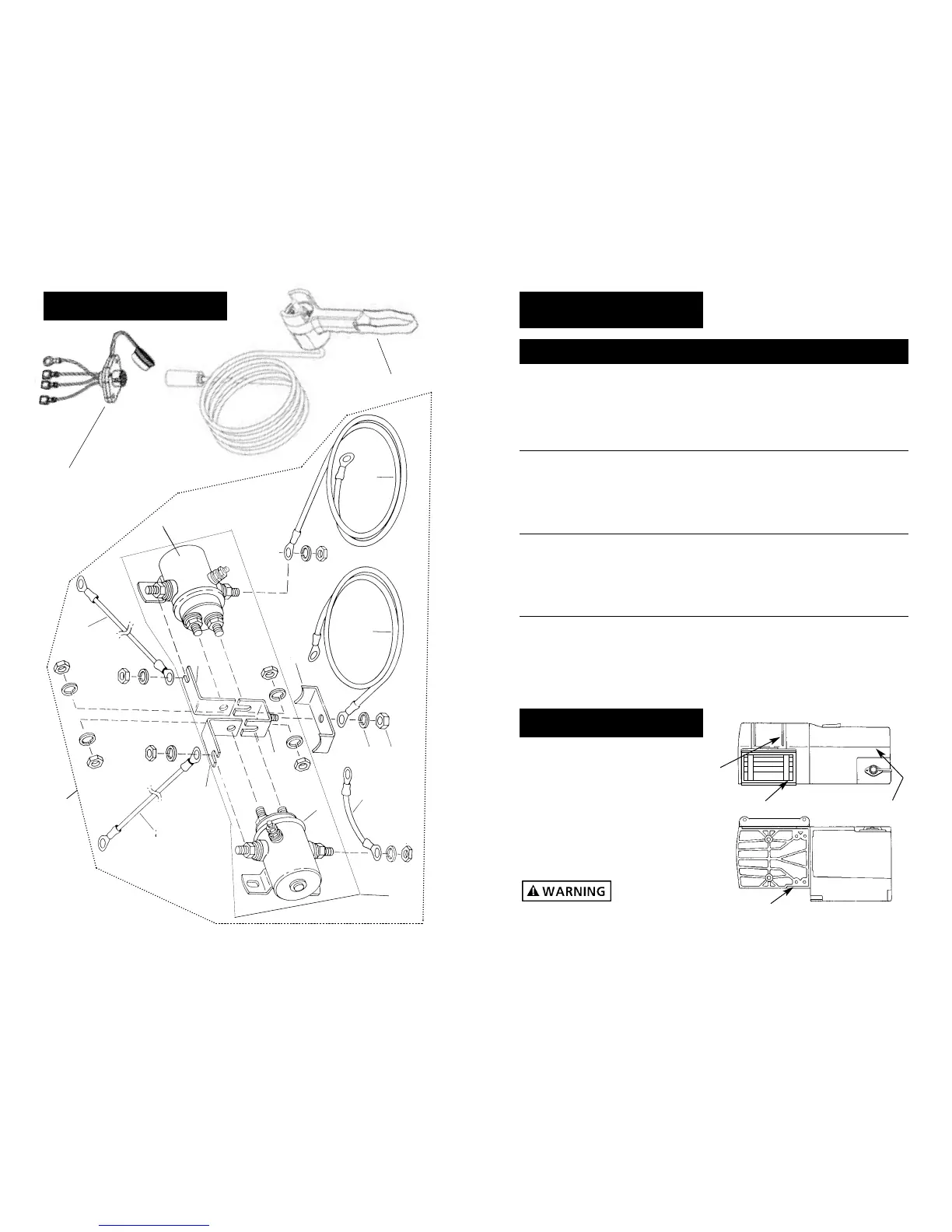

SOLENOID ASSEMBLY
67
68
66
