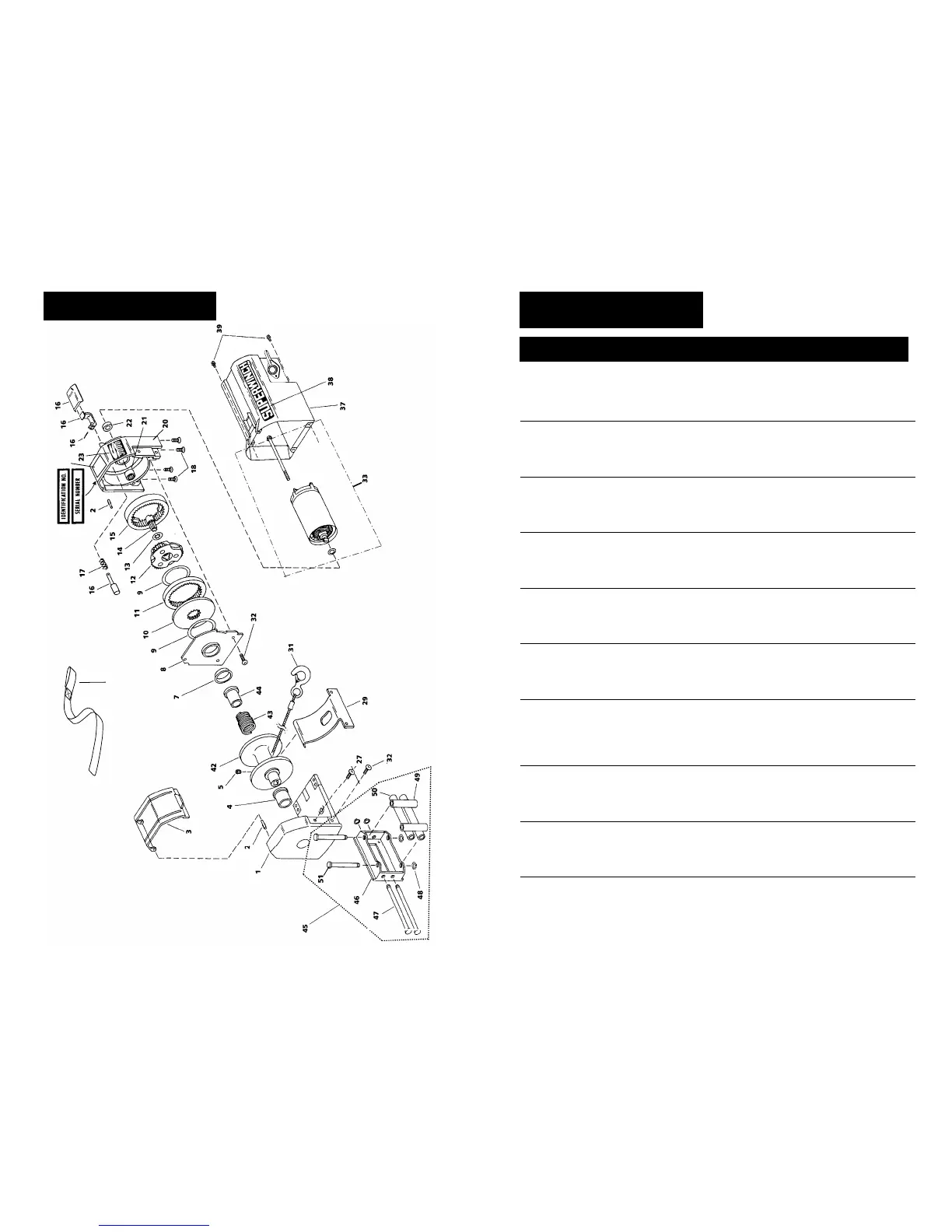

Superwinch S5000 - W I N C H a S S E M B Ly

1 Base 89-52021 1
2 Groove Pin 89-23303-01 2
3 Cable Guard 89-32268 1
4 Main Bearing 89-22268 1
5 M6 x 1 x 8mm Cup Pt. Set Screw 90-23164-12 1
7 Drum Bearing 89-22269 1
8 Drum Support 89-40092 1
9 Thrust Washer 90-12574 2
10 Drive Plate 89-32263 1
11 Rotating Ring Gear 89-32265 1
12 Planetary Carrier Assembly 89-22141 1
14 Sun Gear 89-33303 1
15 Stationary Ring Gear 89-32266 1
16 Free Wheel Repair Kit 89-10580 1
(Includes Shaft, Lever, Handle, and Rivet)
17 Free Wheel Spring 90-23152-08 1
18 M6 x 1 x 16mm Flat Head Screw 89-22291-01 4
20 Housing Assembly (includes 21 & 22) 89-40104 1
21 Needle Bearing (.8125 x 1.125 x .750) 89-23263-03 1
22 Motor Shaft Bearing 89-12002 1
23 S5000 Logo 89-17332 1
S4000 Logo 89-17331 1
S3000 Logo 89-17330 1
27 M6 x 1 x 13mm Button Head Screw 89-22290-01 2
29 Cable Tension Spring 89-32295 1
30 Handsaver 87-31120 1
31 Wire Rope Assembly w/hook 1/4"x50' (S5000) 1577A 1
Wire Rope Assembly w/hook 7/32"x60' (S4000) 1514A 1
Wire Rope Assembly w/hook 3/16"x60' (S3000) 1511C 1
32 M6 x 1 x 16mm Button Head Screw 89-22290-02 5
33 12 Volt Complete Motor (S5000) 90-33294 1
24 Volt Complete Motor 89-33298 1
12 Volt Complete Motor (S4000) 90-32295 1
24 Volt Complete Motor 89-33297 1
12 Volt Complete Motor (S3000) 90-33276 1
24 Volt Complete Motor 89-33296 1
37 Motor Cover 89-52024 1
38 “Superwinch” Nameplate 89-22277 1
39 M4 x 0.7 x 6mm Hex Washer Head Screw 89-22292-01 4
42 Drum 89-40085 1
43 Brake Spring 89-22342 1
44 Brake Adapter 89-22287 1
45 Roller Fairlead 89-40123 1
46 Roller Fairlead Frame 89-40113 1
47 Roller Fairlead Shaft (Long) 89-22334-02 2
48 Retainer Ring 90-23029-08 4
49 5/8 x 2.352 Roller 90-12568-04 2
50 5/8 x 4.735 Roller 90-12568-06 2
51 Roller Fairlead Shaft (Short) 89-22334-01 2
17
REPLACEMENT
PARTS LIST
Reference
Number Description Part Number Qty
Safety
69
WINCH ASSEMBLY
16
30
