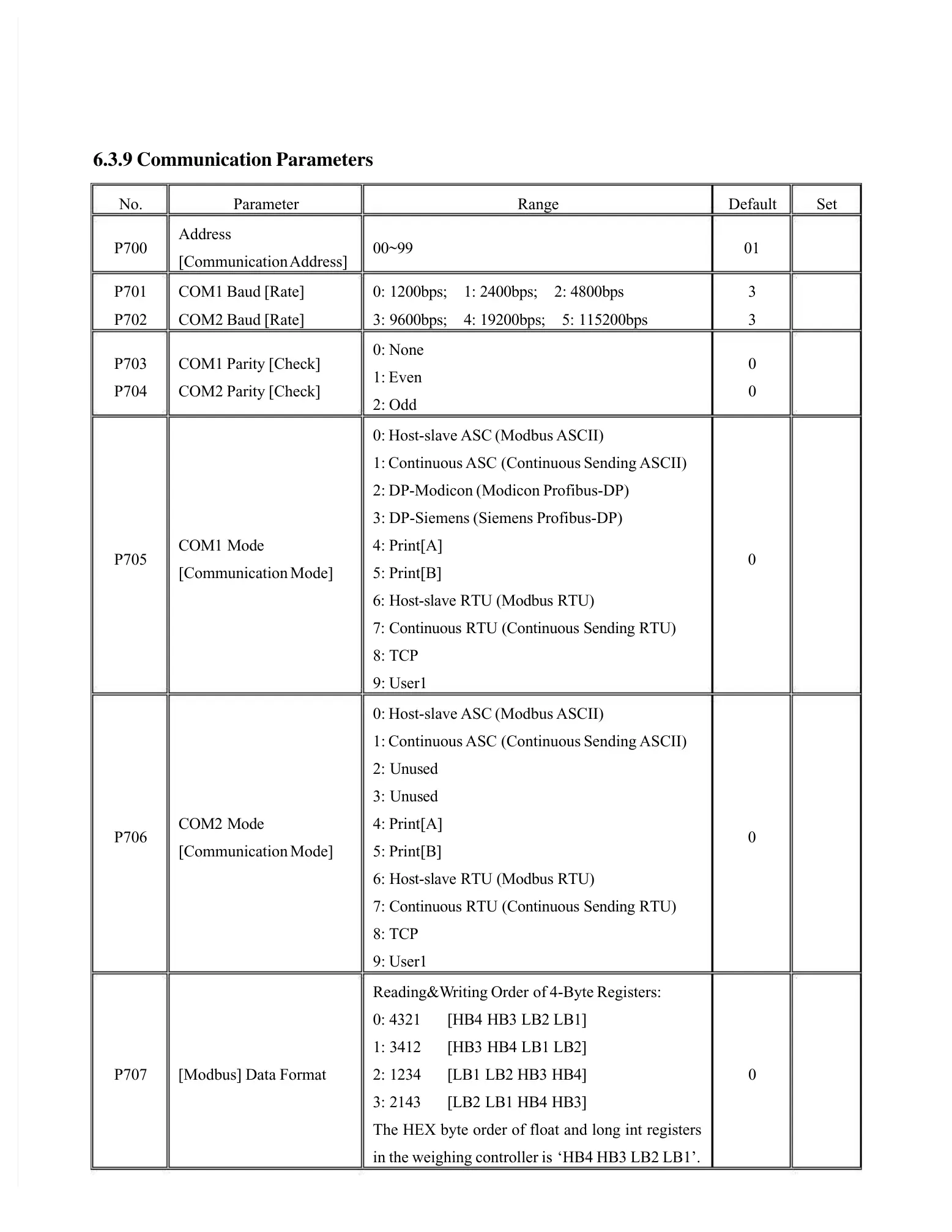

6.3.9 Communication Parameters
No.
Parameter
Range
Default
Set
P700
Address
[Communication Address]
00~99 01
P701
P702
COM1 Baud [Rate]
COM2 Baud [Rate]
0:
1200bps;
1:
2400bps;
2:
4800bps
3:
9600bps;
4:
19200bps;
5:
115200bps
3
3
P703
P704
COM1 Parity [Check]
COM2 Parity [Check]
0: None
1: Even
2: Odd
0
0
P705
COM1 Mode
[Communication Mode]
0: Host-slave ASC (Modbus ASCII)
1: Continuous ASC
(Continuous Sending ASCII)
2: DP-Modicon (Modicon Profibus-DP)
3: DP-Siemens (Siemens Profibus-DP)
4: Print[A]
5: Print[B]
6: Host-slave RTU (Modbus RTU)
7: Continuous RTU (Continuous Sending RTU)
8: TCP
9: User1
0
P706
COM2 Mode
[Communication Mode]
0: Host-slave ASC (Modbus ASCII)
1: Continuous ASC
(Continuous Sending ASCII)
2: Unused
3: Unused
4: Print[A]
5: Print[B]
6: Host-slave RTU (Modbus RTU)
7: Continuous RTU (Continuous Sending RTU)
8: TCP
9: User1
0
P707
[Modbus]
Data
Format
Reading&W
riting Order
of 4-Byte Registers:
0:
4321
[HB4
HB3
LB2
LB1]
1:
3412
[HB3
HB4
LB1
LB2]
2:
1234
[LB1
LB2
HB3
HB4]
3:
2143
[LB2
LB1
HB4
HB3]
The HEX byte order of float and long int registers
in the weighing controller is
‘HB4 HB3 LB2 LB1’.
0
