Supmeter BST100-E11 User Manual

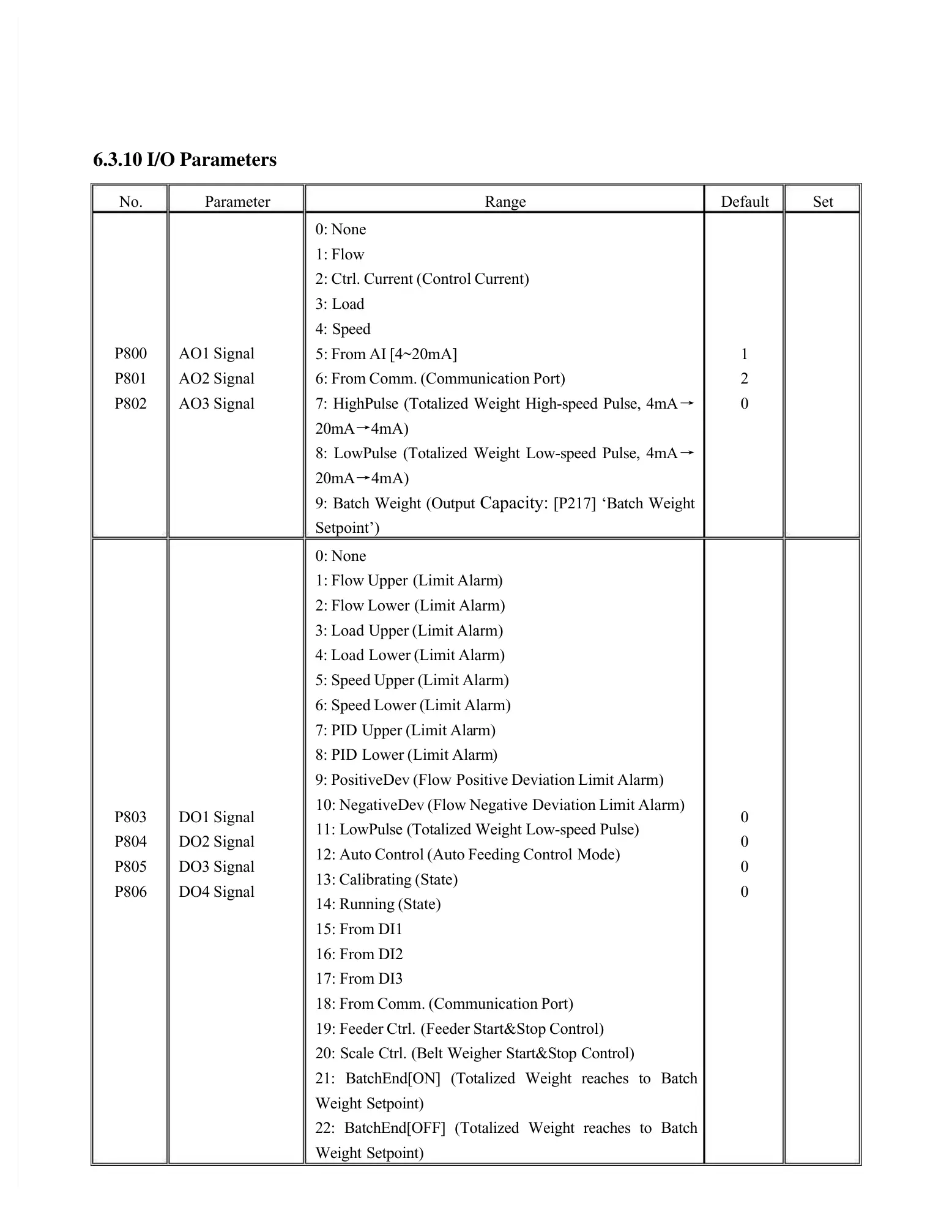

6.3.10 I/O Parameters
No.
Parameter
Range
Default
Set
P800
P801
P802
AO1 Signal
AO2 Signal
AO3 Signal
0: None
1: Flow
2: Ctrl. Current (Control Current)
3: Load
4: Speed
5: From AI [4~20mA]
6: From Comm. (Communication Port)
7: HighPulse (Totalized Weight High-speed Pulse, 4mA
→
20mA
→
4mA)
8: LowPulse (Totalized Weight Low-speed Pulse, 4mA
→
20mA
→
4mA)
9: Batch Weight (Output
Capacity:
[P217] ‘Batch Weight
Setpoint’)
1
2
0
P803
P804
P805
P806
DO1 Signal
DO2 Signal
DO3 Signal
DO4 Signal
0: None
1: Flow Upper
(Limit Alarm
)
2: Flow Lower
(Limit Alarm)
3: Load
Upper (Limit Alarm)
4: Load
Lower (Limit Alarm)
5: Speed Upper (Limit Alarm)
6: Speed Lower (Limit Alarm)
7: PID
Upper (Limit Ala
rm)
8: PID
Lower (Limit Alarm
)
9: PositiveDev (Flow
Positive Deviation Limit Alarm)
10: NegativeDev (Flow Negative
Deviation Limit Alarm)
11: LowPulse (Totalized Weight Low-speed Pulse)
12: Auto Control (Auto Feeding Control
Mode)
13: Calibrating (State)
14: Running (State)
15: From DI1
16: From DI2
17: From DI3
18: From Comm. (Communication Port)
19: Feeder Ctrl.
(Feeder Start&Stop Control)
20: Scale Ctrl. (Belt Weigher Start&Stop Control)
21: BatchEnd[ON] (Totalized Weight reaches to Batch
Weight Setpoint)
22: BatchEnd[OFF] (Totalized Weight reaches to Batch
Weight Setpoint)
0
0
0
0
