2023-11-30 56 2301122

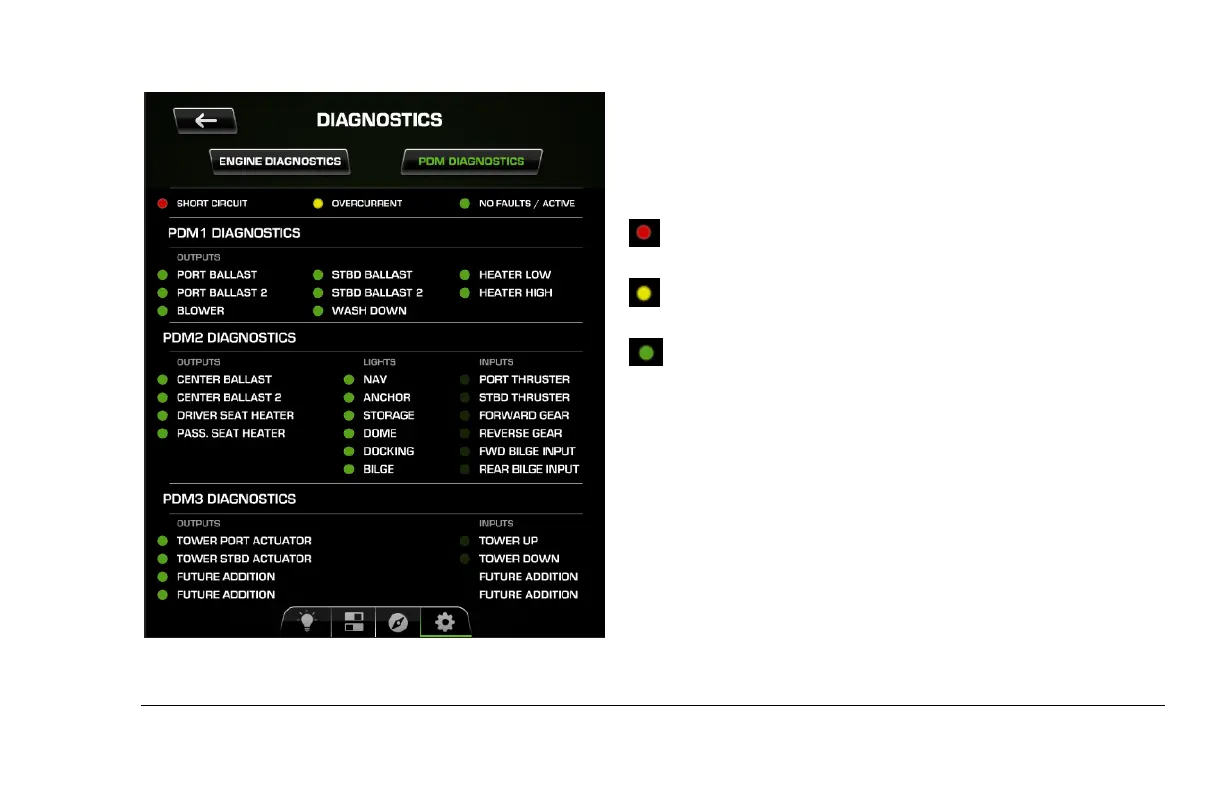

PDM Diagnostics
This screen provides diagnostics for the Power
Display Module.
A red light means a short circuit is present.
A yellow light means there is an overcurrent.
A green light means there are no faults and
the circuits are active.
