Installation
Using the CoreStation with the enclosure
CoreStation can be installed inside the enclosure (ENCR-10) for physical and electrical protection. The enclosure includes
a power status LED board, power distribution board, power supply, and tamper. The enclosure is sold separately.
Securing the battery

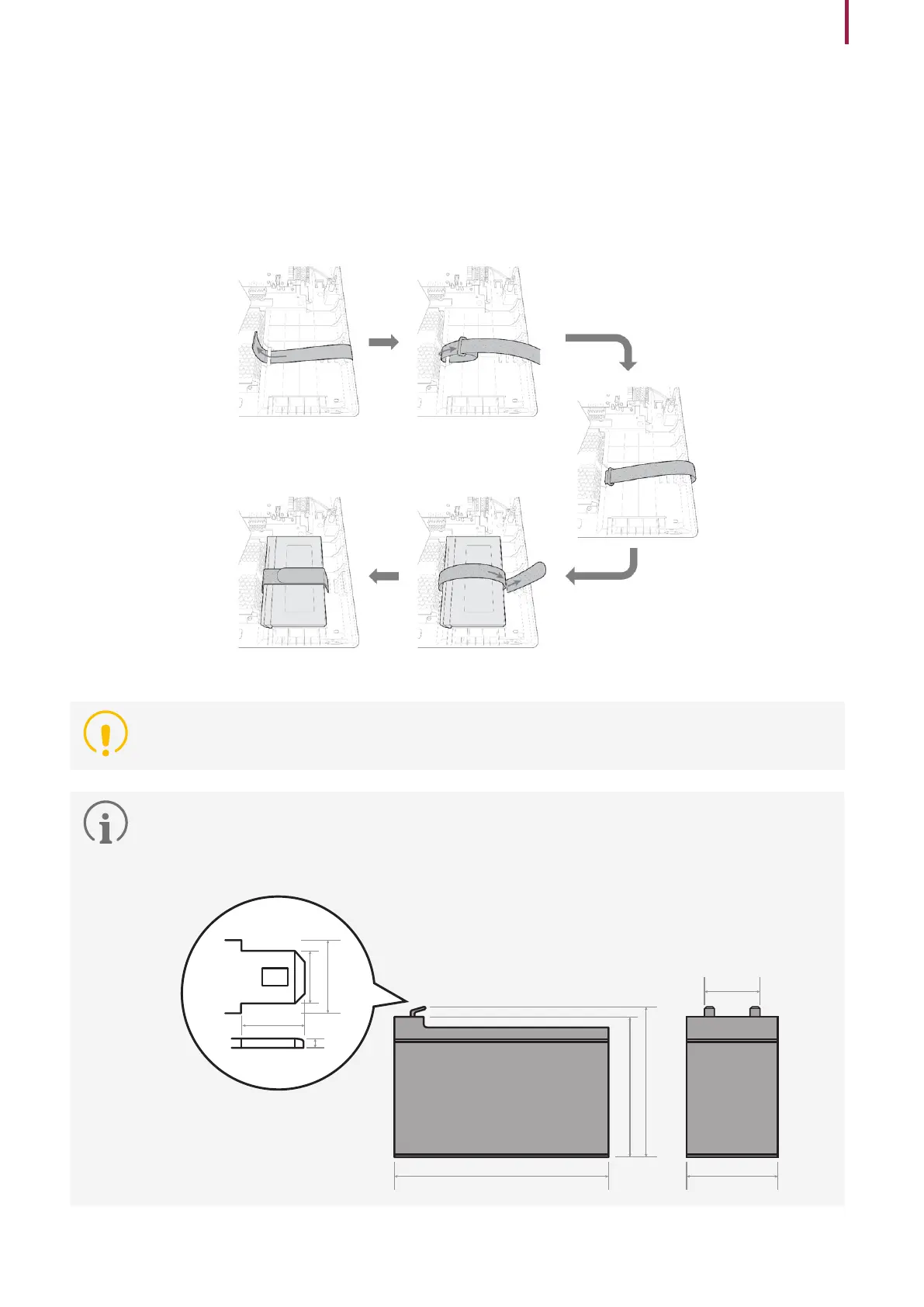

Insert the battery velcro strap into the enclosure and secure the battery.
•
Use a backup battery with 12 VDC and 7 Ah or higher. This product was tested with 'ES7-12' battery of
'ROCKET'. It is recommended to use a battery corresponding to 'ES7-12'.
•
The battery is sold separately.
•
If the dimension of the backup battery is larger than the recommended specification, it may not be able to be
mounted in the enclosure or the enclosure may not close after it is mounted. Also, if the shape and dimension
of the terminals are different, the battery cannot be connected using the cable provided.
43
94
99
4.75
6.6
0.8
6.35
Backup Battery
Terminal (Unit: mm)
To Next Page
