IMPORTANT:
Take caution during installation to not aim these antenna towards the other
antenna
OK
Aiming Directional Antennas
Installing the Yagi antenna:
The Yagi antenna should be aimed in the direction of your nearest
cell tower. If you’re not sure of the location of your carrier’s nearest
tower, go to www.antennasearch.com.
Once you have identied your install location, assemble the u-bolt,
bracket, nuts and washers onto a pole (available separately) as
shown in the illustration. Keep the connections loose enough to allow
the antenna to rotate until the optimum direction is found.
Orient the antenna with the drip hole at the bottom.
Place the Outside Amplier
Next assemble the bracket for the outside amplier the same way you
did the yagi bracket and secure in the same location within range of the
antenna cable connection.

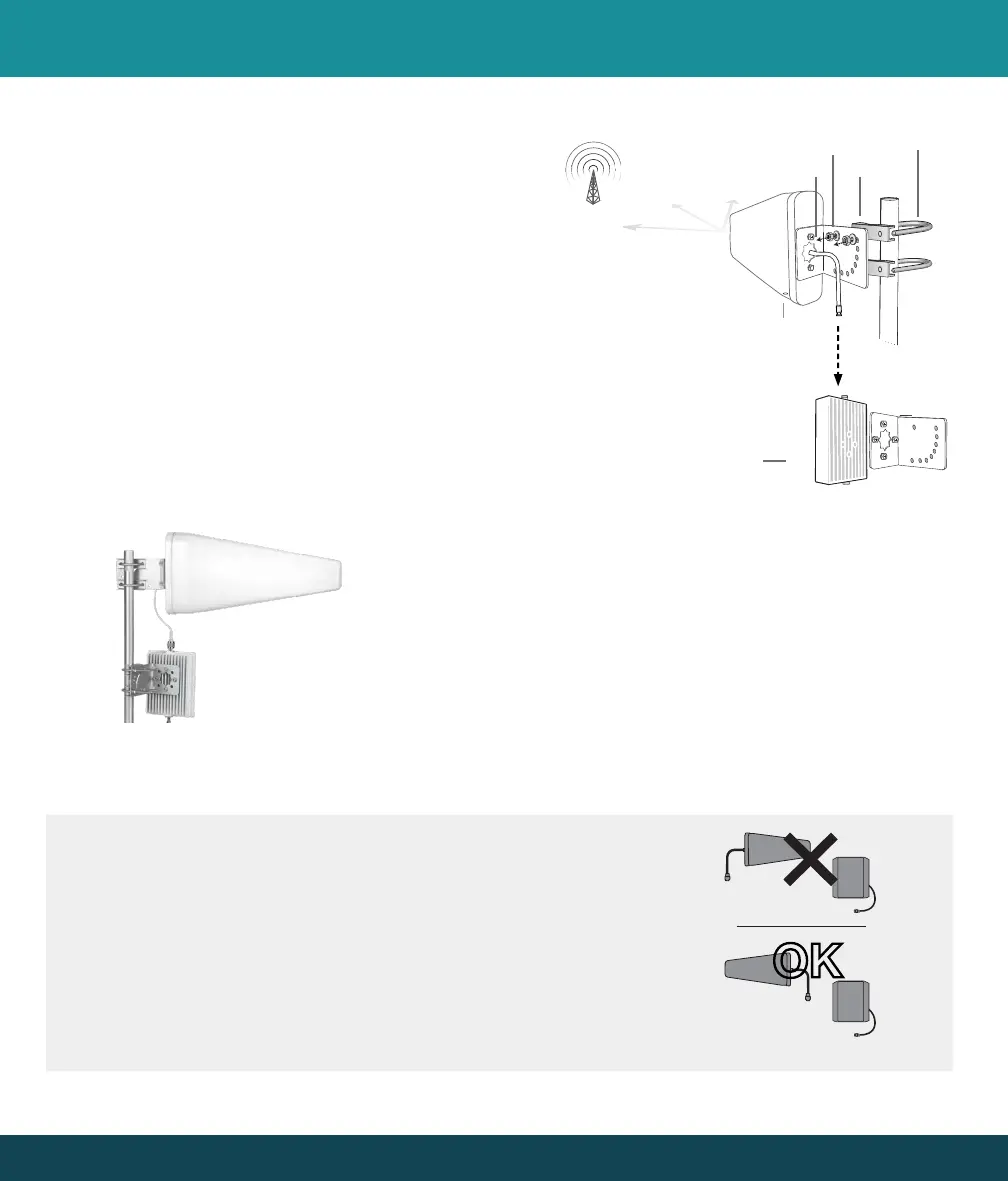

Connect the yagi cable connector to the outside amplier as shown here,
→↗⇱⇲⦬⤽↥⥁⤻↺⇝
Outside system assembled
Outside
Antenna
Nut
Washer
U-bolt
Bracket
Drip Hole
Outside Amp
Outside system assembly
