396-3815Y1 SureFire PumpRight for Raven RCM 10 Revised 12/04/2019
Parts List
Complete Columns
701-20460-950 Single Full Flow Column with 3/8" HB - 90 Degree Outlet
701-20460-940 Single Full Flow Column with 3/8” QC - 90 Degree Outlet
701-20460-960 Single Full Flow Column with 1/2” HB - 90 Degree Outlet
701-20460-935 Single Low Flow Column with 3/8” QC - 90 Degree Outlet
701-20460-920 Single Low Flow Column with 1/4" QC - 90 Degree Outlet
Fittings
701-20503-00 ORS x 3/4" HB - Straight Service Parts Only
701-20511-00 ORS x 3/8" HB - 90 Degree 701-20460-02 Wilger Flow Indicator Ball Retainer
701-20512-00 ORS x 1/2" HB - 90 Degree 701-20460-03
FKM O-Ring for indicator body & fittings
701-20513-00 ORS x 3/4" HB - 90 Degree 701-20460-04 Wilger Lock U-clip
701-20516-00 ORS x 1/4" QC - 90 Degree 701-20460-05 Flow Indicator Ball - 1/2" SS Ball
701-20517-00 ORS x 3/8" QC - 90 Degree 701-20460-06 Flow Indicator Ball - Maroon Glass
701-20518-00 ORS x 1/4" FPT - 90 Degree 701-20460-07 Flow Indicator Ball - Red Celcon
701-20519-00 ORS x 1/4" FPT - Straight 701-20460-08 Flow Indicator Ball - Green Poly
701-20520-00 ORS Male x ORS Female - 90 degree 701-20460-09 Flow Indicator Ball - Black Poly
701-20521-00 Wilger End Cap 701-20460-15 Viton O-Ring for column & fittings
701-20523-00 ORS Male x ORS Female x 3/8" FPT - Isolator 701-40225-05 Viton O-Ring for Orifice
701-20525-00 ORS Male x ORS Male x 1" FPT - Tee
Brackets & U-Bolts
400-1037A1 3-6 Row Bracket
400-3155Y1 7-12 Row Bracket
400-2011A1 White Backer Plate for 3-6 Row Bracket
400-2010A1 White Backer Plate for 7-12 Row Bracket
400-1315A2 Flow Indicator Bracket, 6-8 in wide hitch mount
Product Distribution
To assure proper and even distribution to each row, the product being applied
must be metered to each individual row. This metering is done by one of the 3
following methods which create back pressure so an equal amount of liquid is
applied to each row:
1. A metering orifice may be placed in the check valve cap in the line that leads to each
row. (See photo on page 13)
2. A dual metering tube kit with dual check valves may be used. (See pages 18-21)
3. A LiquiShift valve stack may be used that automatically selects which metering tube to use based on
system pressure.
B
Components
Liquid

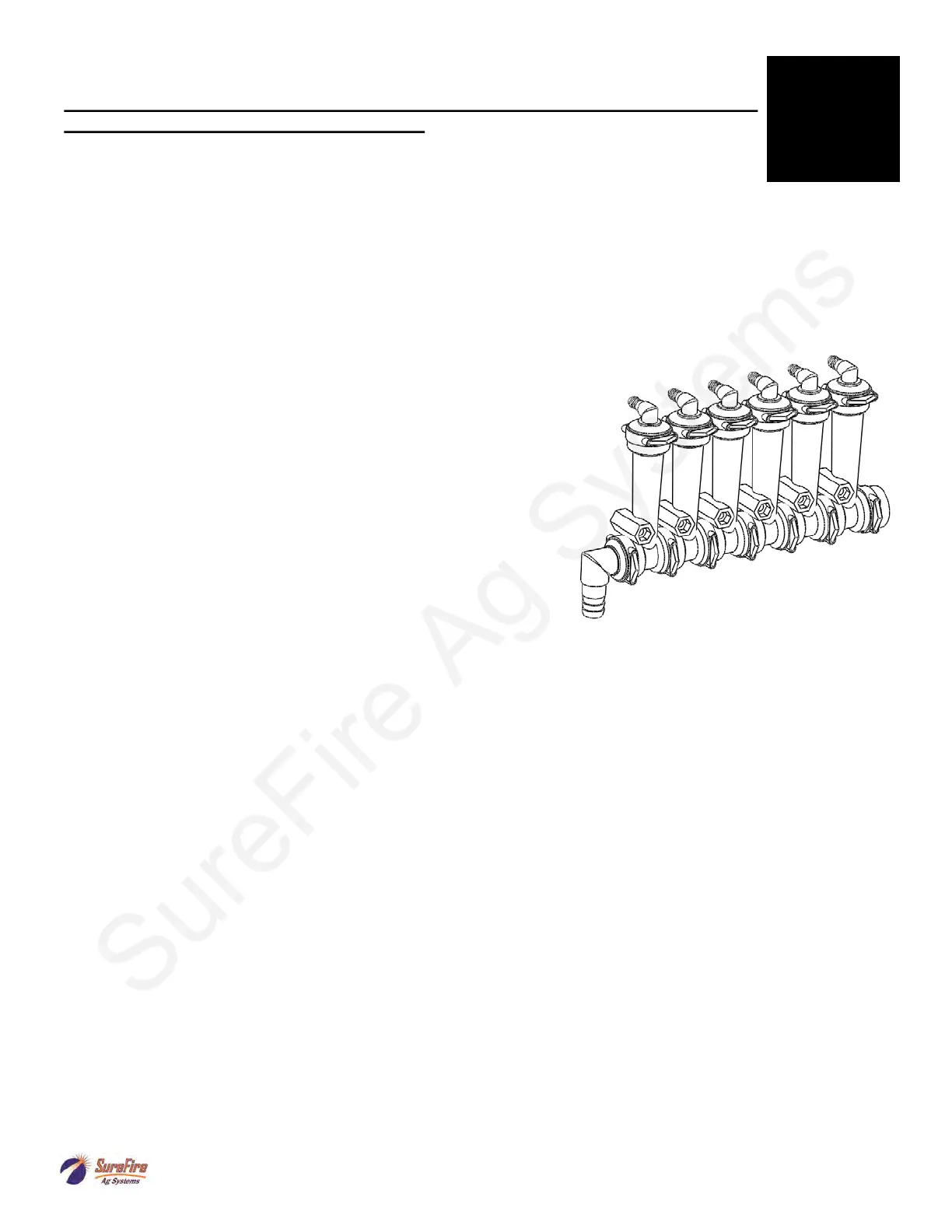

Floating Ball Flow Indicator & Manifold System
Flow indicators give a clear visual signal that a fertilizer
system is working. These indicators use an o-ring and wire
clip connection to snap together in any configuration
necessary.
SureFire has simple tee brackets and U-bolts that will
mount these to a variety of bar sizes.
Two main types of flow indicators are used. On 30”
row spacing, the low flow column with 1/4” push to connect
outlet is recommended for rates under 10 GPA. For rates over
10 GPA the full flow column with 3/8” hose barb outlet is
preferred.
