396-3815Y1 SureFire PumpRight for Raven RCM 42 Revised 12/04/2019

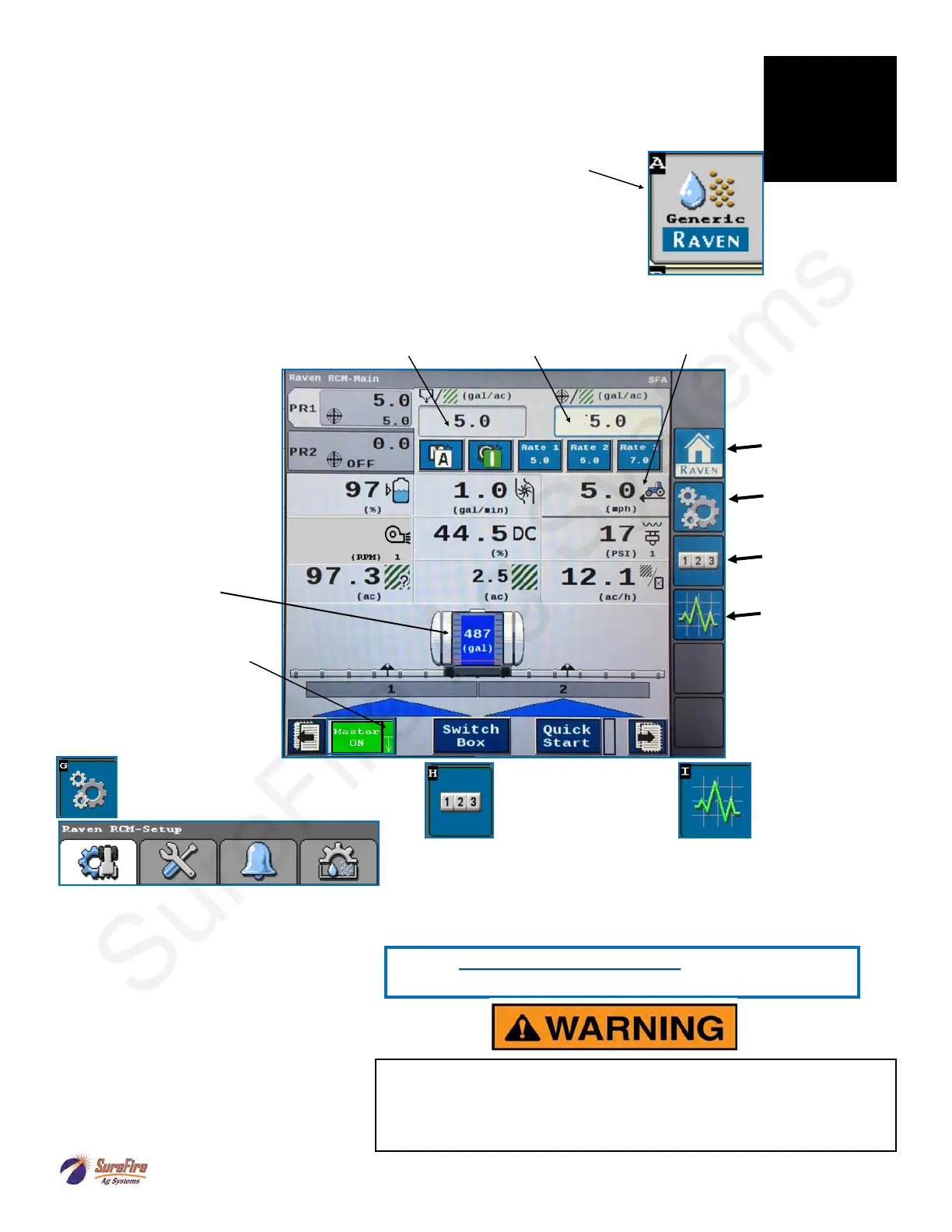

Following are screen shots typical of a Raven RCM setup. Your
setup and screens may vary since the RCM is capable of running
many different application scenarios.
To access the RCM, push this button. If this button is not present
the rate controller is not communicating with the display.
This button will take you to the Main Run Screen below.
Rate Control Module (RCM) Setup
Menu Structure
Navigation
Buttons
Raven RCM
Run Screen
Setup
Totals
Diagnostics
Main Run Screen
Actual Rate
Target Rate
Tractor Speed
Totals
• Current
• Job Summaries
• Lifetime Totals
Diagnostics
• System Information Menu
• Tests
• System Summary
• Product Summary
F
Setup &
Operation
Estimated Volume Re-
maining / Tank Refill
Button (press to refill
tank)
Implement Height
Switch Indicator,
Arrow will point up or
down to indicate im-
plement position if
height switch is
used.
Setup
• Applicator Setup > Profile > Height
Switch > Test Speed
• System Settings > Control Valve Setup
Rate Sensor Setup
Tank Fill Settings
Display Setup Menu
Pressure Sensor Setup
Auxiliary Functions Setup
(Advanced Tuning)
• Alarm Settings
• Rates Setup/ Display Smoothing /
Decimal Shift
73
See the Raven RCM Operation Manual for safety information
and additional setup/operating information.
The operator is responsible for knowing and understanding the
safe operation of this equipment. Systems with hydraulic
equipment require additional safety precautions to prevent serious
injury and/or death.
