396-3815Y1 SureFire PumpRight for Raven RCM 22 Revised 12/04/2019
SureFire recommends buying a Raven RCM Adapter Harness from SureFire that
will connect directly to the three connectors on the Raven RCM Controller.
D
Wiring & Elec.

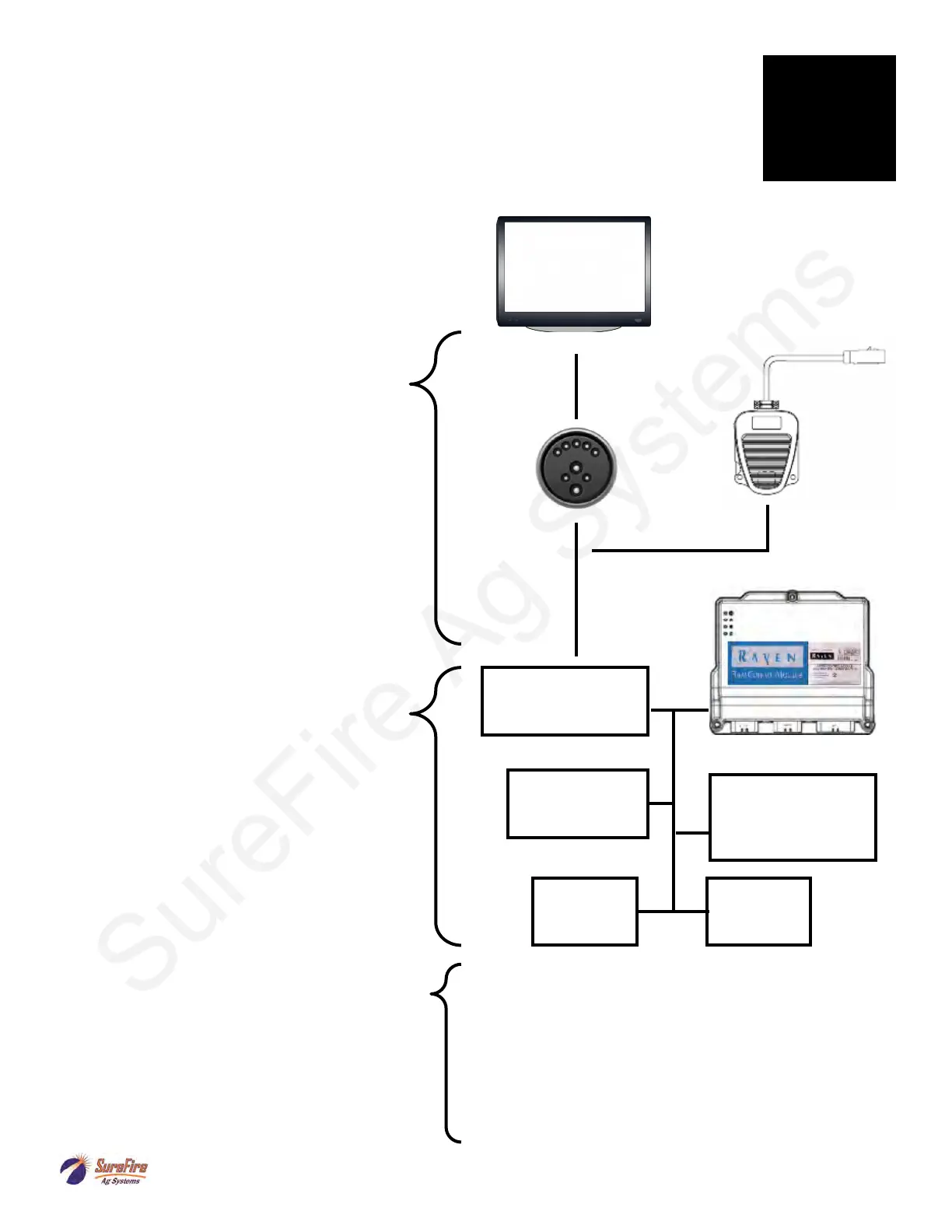

SureFire Harness Layout for RAVEN RCM
Footswitch & ISO
Extensions
(Purchase from SureFire)
Designed to integrate with many ISOBUS
virtual terminals, The Raven RCM’s
connection starts at the tractor’s ISOBUS
connection. Power and information is re-
layed to the Raven RCM using a Sure-
Fire Front ISO Extension which includes
a foot switch and CAN bus connections.
Already using the tractor ISOBUS? No
Problem. SureFire has an ISOBUS Y
harness that can be used in that in-
stance.
Final
Harnesses
(purchase from SureFire)
Final Harnesses connect the Raven RCM
Adapter Harness to pump drivers,
flowmeters, hydraulic motors, speed
sensors, pressure sensors, valves and
any other components in a liquid, dry or
NH3 application system.
Product
Harnesses
One is required for each
product being applied.
They start with a 12-pin
connector and are
unique to Liquid, Dry or
NH3 application.
Section
Harnesses
Each section harness starts
with a 14-pin connector that
allows up to 6 sections to
be controlled.
Raven RCM &
Adapter Harness
(purchase from SureFire)
These harnesses connect the CAN bus
to the Raven RCM. Each harness will
go directly to 12-pin product connectors
and 14-pin section connectors. SureFire
offers many different Raven RCM
Adapter Harnesses built for a specific
single-product or multi- product systems.
In-Cab Display
(user-provided)
Foot Switch
CAN Bus and Power
-in Connectors
CAN Bus and Power-
Out Connectors
(Terminator)
Implement Height
Switch
Product
Connector(s)
Section
Connector(s)
Foot Switch
Adapter
Front ISO Extension
Tractor
ISOBUS
To Next Page
