396-3815Y1 SureFire PumpRight for Raven RCM 24 Revised 12/04/2019

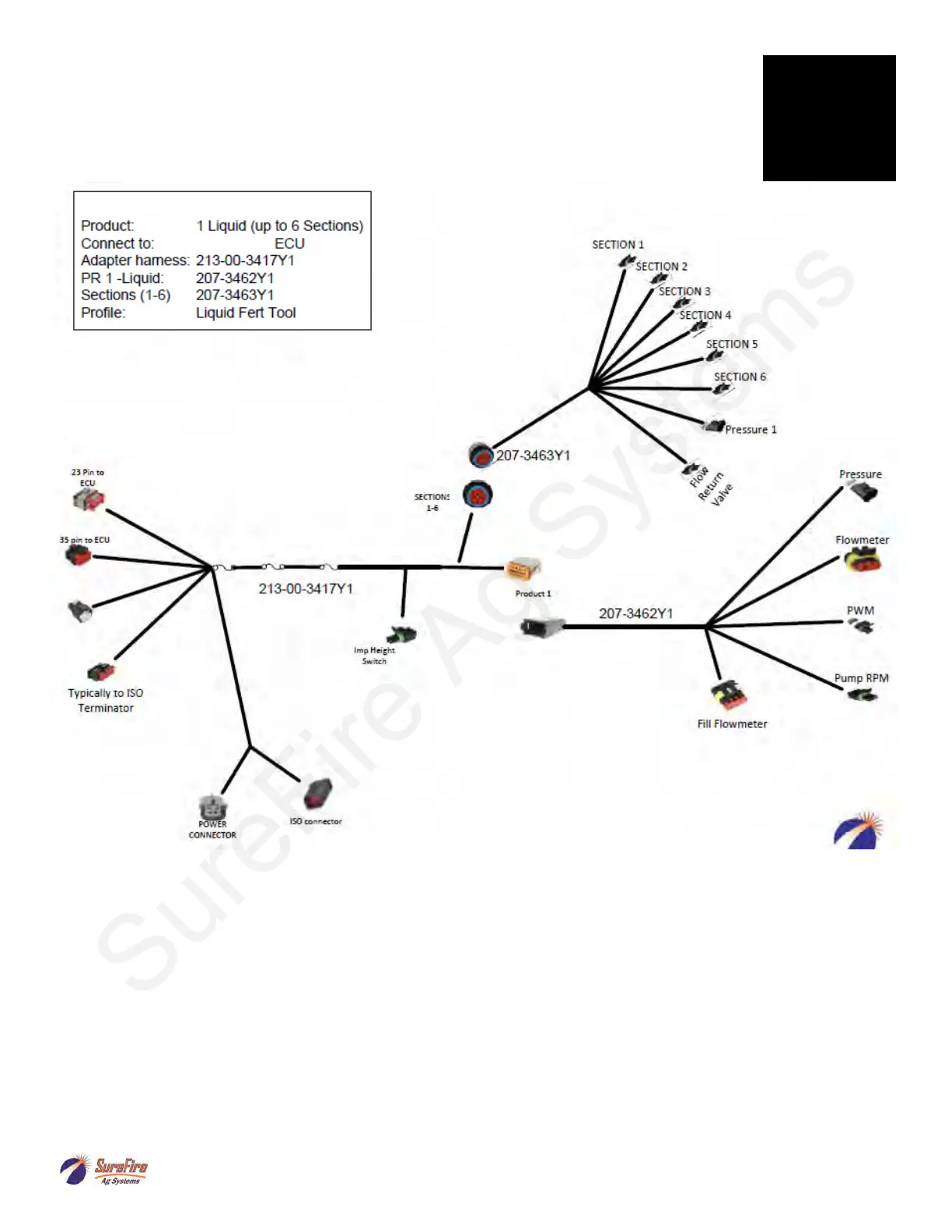

Example PumpRight & RCM Layout
The harnessing shown below would be used to connect a SureFire PumpRight
system with up to 6 section valves to the Raven RCM.
D
Wiring & Elec.
Using SureFire Direct to RCM ECU
Raven RCM
SureFire Ag Systems
