396-3815Y1 SureFire PumpRight for Raven RCM 65 Revised 12/04/2019
PR17 Assembly and Part Breakdowns
H
Maintenance
& Parts
PR17 Flowmeter Kits
Kit: 500-02-2082 EMag PR17 Flowmeter Kit (.13 - 2.6 GPM)
Kit: 500-02-2085 EMag PR17 Flowmeter Kit (.3 - 5 GPM)
Kit: 500-02-2090 EMag PR17/PR30 Flowmeter Kit (.6 - 13 GPM)

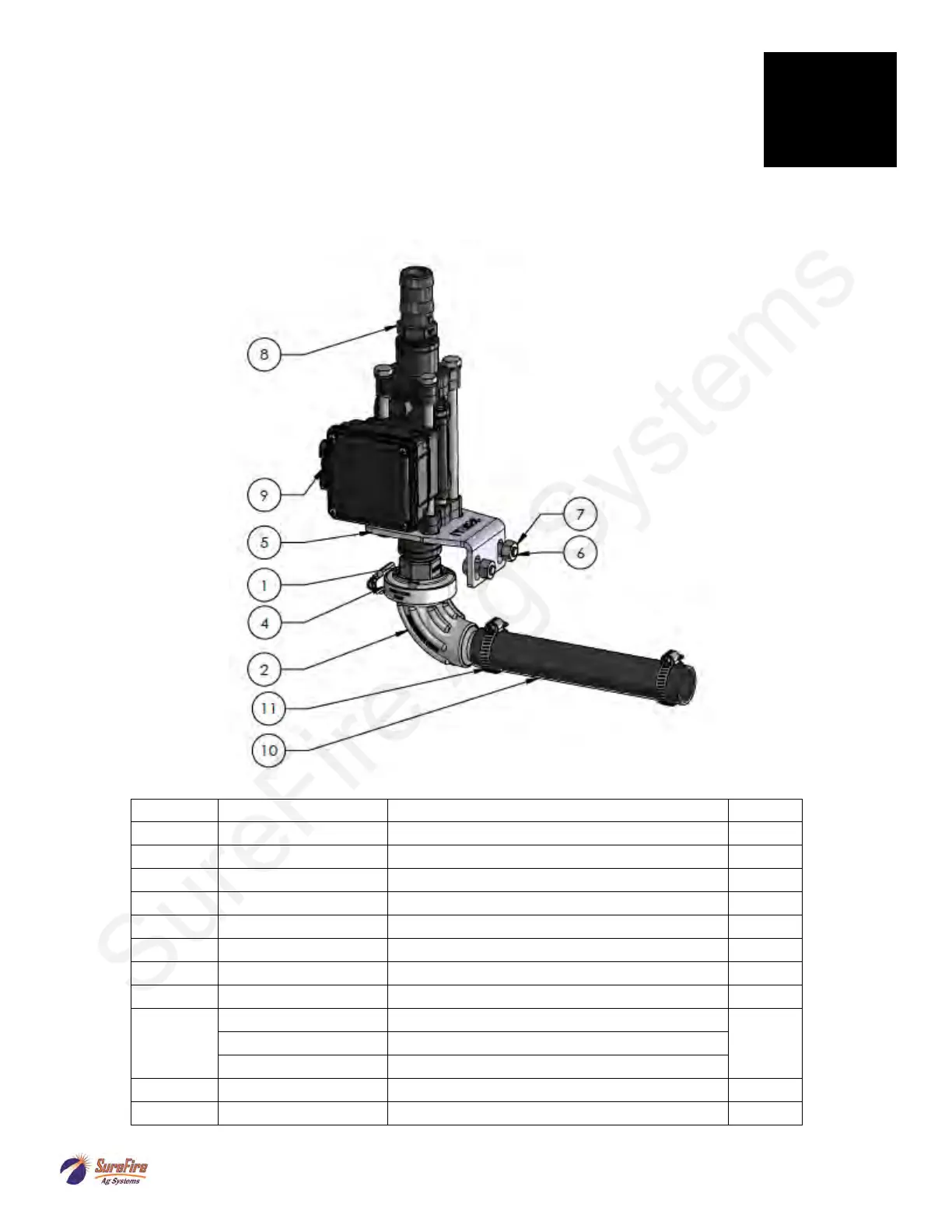

ITEM NO. PART NUMBER DESCRIPTION QTY.
1 105-100075MPT 1" Flange X 3/4" Male Thread 1
2 105-100BRBSWP90 1" Flange X 90° Sweep Hose Barb 1
3 105-100G 1" EPDM Manifold Gasket 1
4 105-FC100 1" Manifold Clamp 1
5 400-3826Y1 SS Flowmeter Mounting Bracket 1
6 300-050012-SS 5/16" x 3/4" HCS SS 2
7 323-05-SS 5/16" Flange Nut SS 2
8 101-075100 3/4" MPT x 1" HB 1
9
204-01-46211CUF00 Electro Magnetic Flow meter 0.13-2.6 GPM
1 204-01-46211CUF01 Electro Magnetic Flow meter 0.3-5 GPM
204-01-46211CUF02 Electro Magnetic Flow meter 0.6-13 GPM
10 280-100-AG200-8L 1" AG200 Hose 1
11 350-1608 1" Hose Clamp 2
