PR40 Assembly and Part Breakdowns
H
Maintenance
& Parts

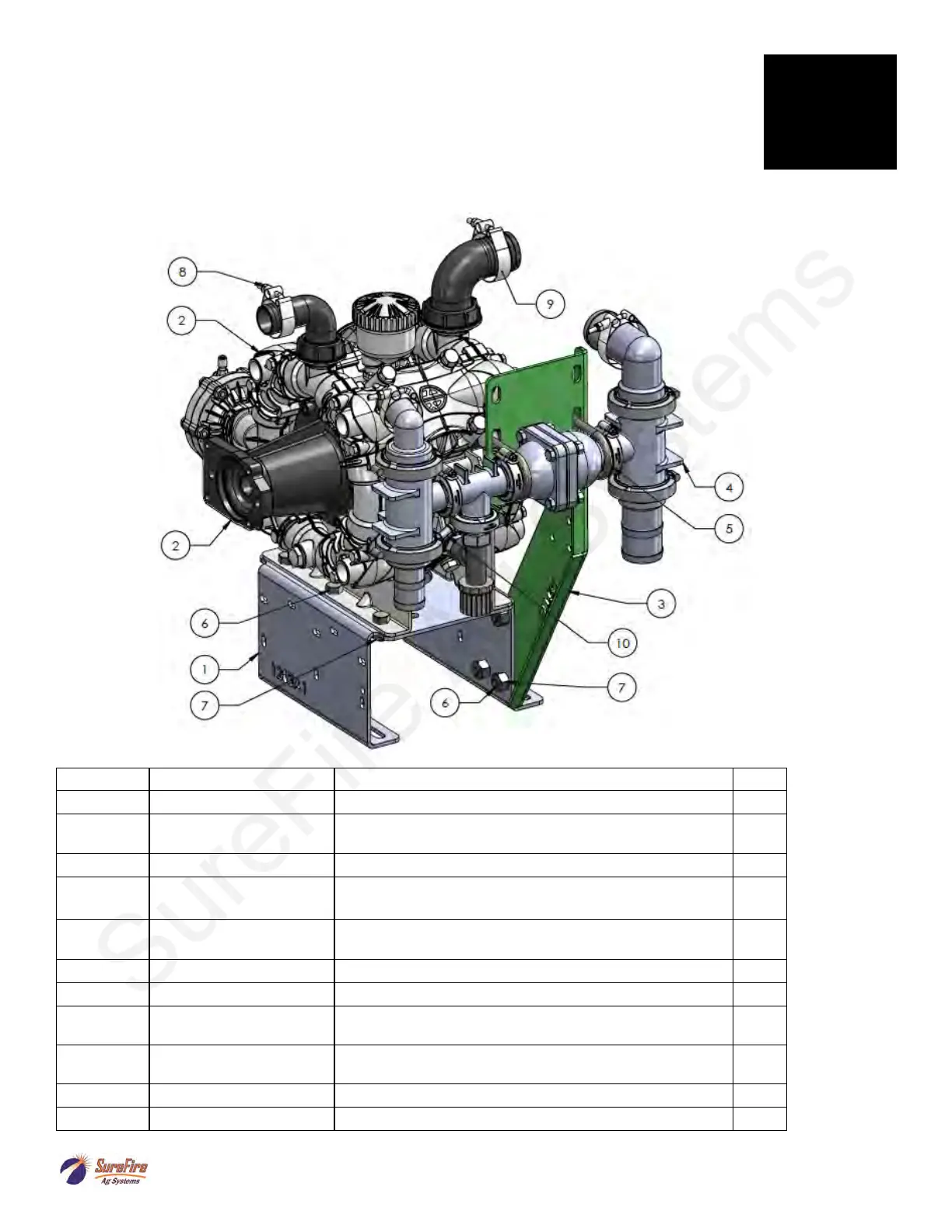

PR40 Pump Pre-Build Assembly
(Minus Flowmeter and Hydraulics)
Kit: 500-40-200040
See Page 78
See Page 76
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 400-1203A1 D160 - D250 Diaphragm Pump Bracket 1
2 290-02-PR40
PR40 Poly BlueFlex Diaphragm Pump - 40GPM -
290 PSI
1
3 400-1204A1 D160 - D250 MPRV Support 1
4 520-00-3015
Plumbing Assembly - D160 & D250 Hydraulic Dia-
phragm Pump
1
5 302-UB101
M100 U-Bolt Assembly - 1 SS Ubolt, 2 SS lock
washers, 2 SS nuts
2
6 300-080100-5 1/2" x 1" HCS G5 9
7 323-08 1/2" Flange Nut 9
8 350-TC181
T-Bolt Hose Clamp - 1.81 - 2.06" Diameter (fits 1
1/2" Enforcer or AG200)
2
9 350-TC231
T-Bolt Hose Clamp - 2.31 - 2.62" Diameter (fits 2"
Enforcer)
2
10 350-0605 SS Hose Clamp - Size 6 - 7/8" Diameter 2
11 291-02-9910-HYD1570 Hydraulic Flange Kit - D160, D250, PR40 & AR330 1
