396-3815Y1 SureFire PumpRight for Raven RCM 82 Revised 12/04/2019
D250 Assembly and Part Breakdowns
H
Maintenance
& Parts

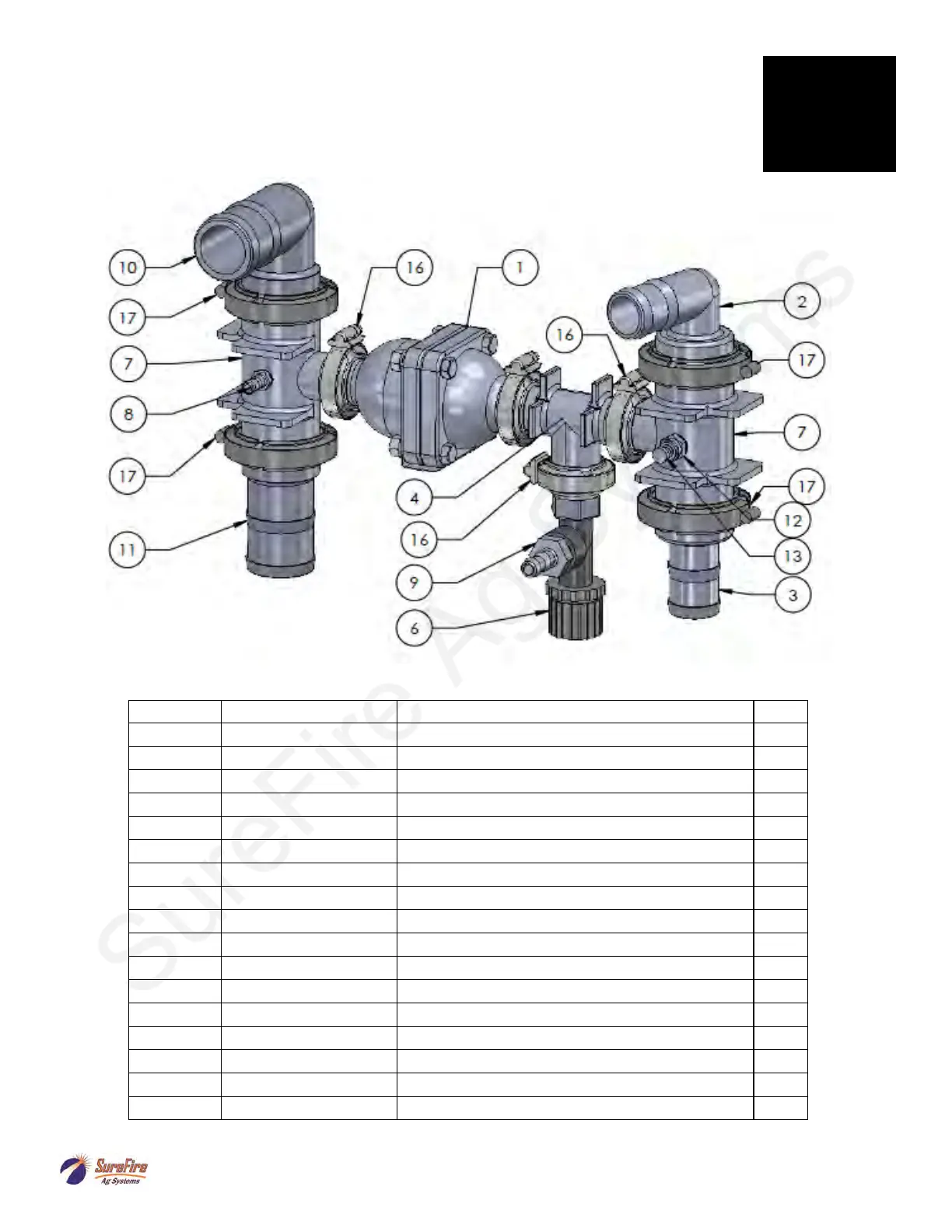

D250 & PR40 Pump Plumbing Assembly
Kit: 520-00-3015
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 102-MPRV100-100 Pressure Relief Valve - 100 PSI 1
2 105-200150BRB90 2" Manifold Flng 1-1/2 Barb 90 1
3 105-200150BRB 2" Manifold X 1-1/2" Barb 1
4 105-100TEE 1" Manifold Tee 1
5 105-100075FPT 1" Manifold x 3/4" FPT 1
6 102-23520-3-4 3/4" Throttling Valve with out spring - 150 PSI 1
7 105-200100TEE038 2"Std Port x 1" Flanged Tee 2
8 101-038050 3/8" MPT x 1/2" HB 1
9 101-075050 3/4" MPT x 1/2" HB 1
10 105-200BRB90 2" Manifold x 2" HB - 90 Degree 1
11 105-200BRB 2" Manifold x 2" HB 1
12 113-06-025038 QC to MPT - 1/4" QC x 3/8" MPT 1
13 113-05-025 Plug - 1/4" QC 1
14 105-100G 1" EPDM Manifold Gasket 4
15 105-150G 1 1/2" EPDM Gasket 4
16 105-FC100 1" Manifold Clamp 4
17 105-FC200 2" Manifold Clamp 4
To Next Page
