SureFlap MICROCHIP CAT FLAP - Important information; Safety warnings for installation

Page 6

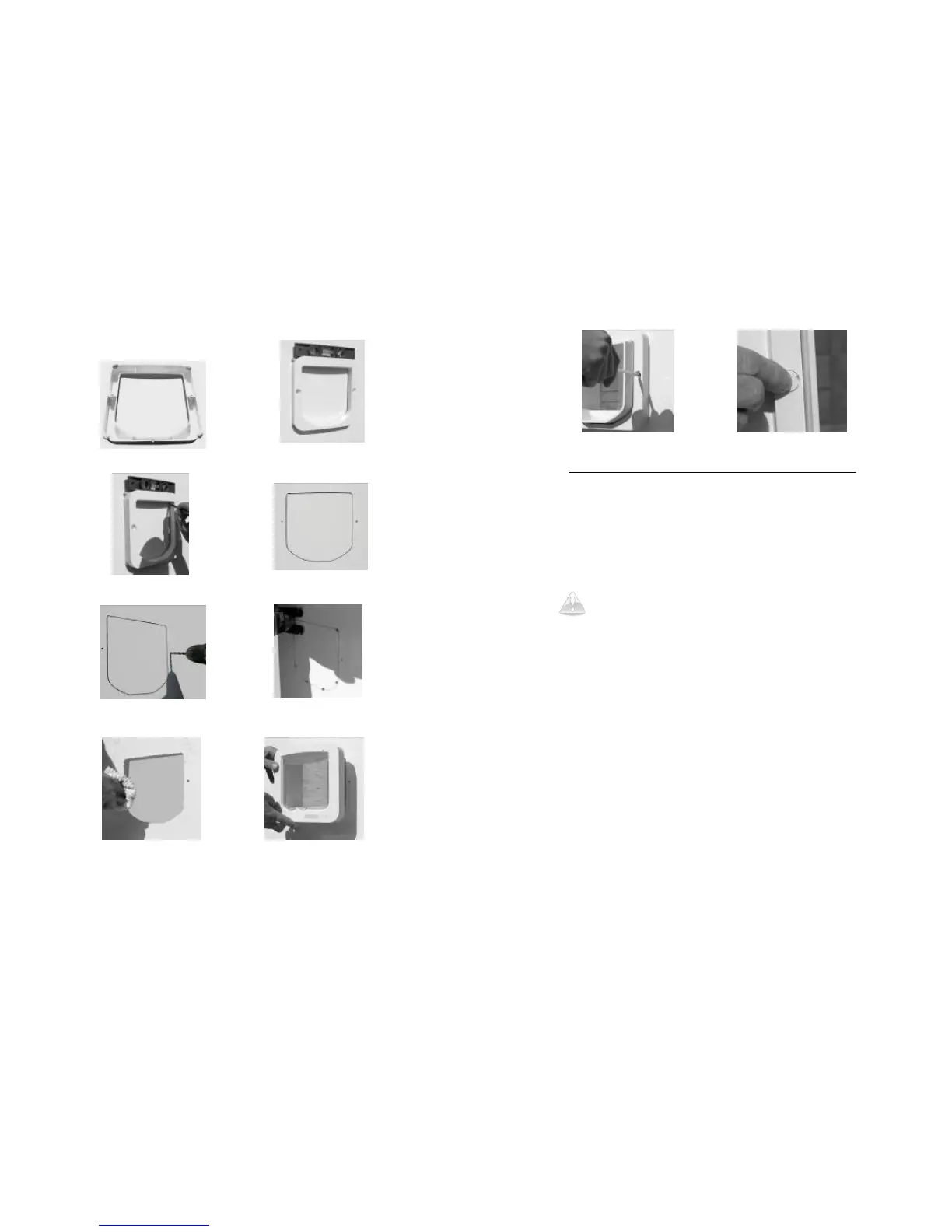

Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Page 7
Installation in glass doors or windows.
Cutting holes in glass is a skilled job and should only be carried out by a
professional glazier. They will cut a circular hole in a fresh pane of glass and
install this in your door or window. Note that toughened glass cannot be cut
after the toughening process. Your glazier will cut the hole to size and then
put the pane through the toughening process.
When working with cut glass always wear protective gloves as the
edges may be sharp.
In order to aid installation into glass doors or windows SureFlap also produces
a glass mount adaptor. For details of where to purchase this adaptor see our
website www.sureflap.co.uk. This adaptor is used as follows:
1. A circular hole 210mm in diameter is required in order to
accommodate the tunnel. See figure 11.
2. If installing SureFlap
TM
in a double glazed panel you may choose to
seal between the panels around the circular hole to avoid moisture
collecting inside. Avoid the use of metal in any such seal.
3. Slide one of the glass mount adaptor rings over the main assembly,
see figure 12.
4. From inside the house slide the tunnel of the main assembly
through the hole in the glass.
5. Mount the second glass mount adaptor and then the external frame
to the outside of the tunnel, see figure 14.
6. If mounting in a single pane use the shortest of the three pairs of
screws to screw the two halves of SureFlap
TM
together. A double
glazed panel may require the mid-sized screw, depending on its
thickness. See figure 15.
7. From the inside of the house you will now see your cat’s stylish new
entrance as in figure 16.
Figure 9
Figure 10
