Sussman ES - Condensate Return Systems

Sussman Boilers
Installation, Operation & Maintenance Manual
Condensate Return Systems
16
Notes:
1. Motor/Pump is closed - Coupled design
2. Pump capacity as follows:
3. Normal cold water level approximately 1/2 to 5/8 up to visible part of gauge glass.

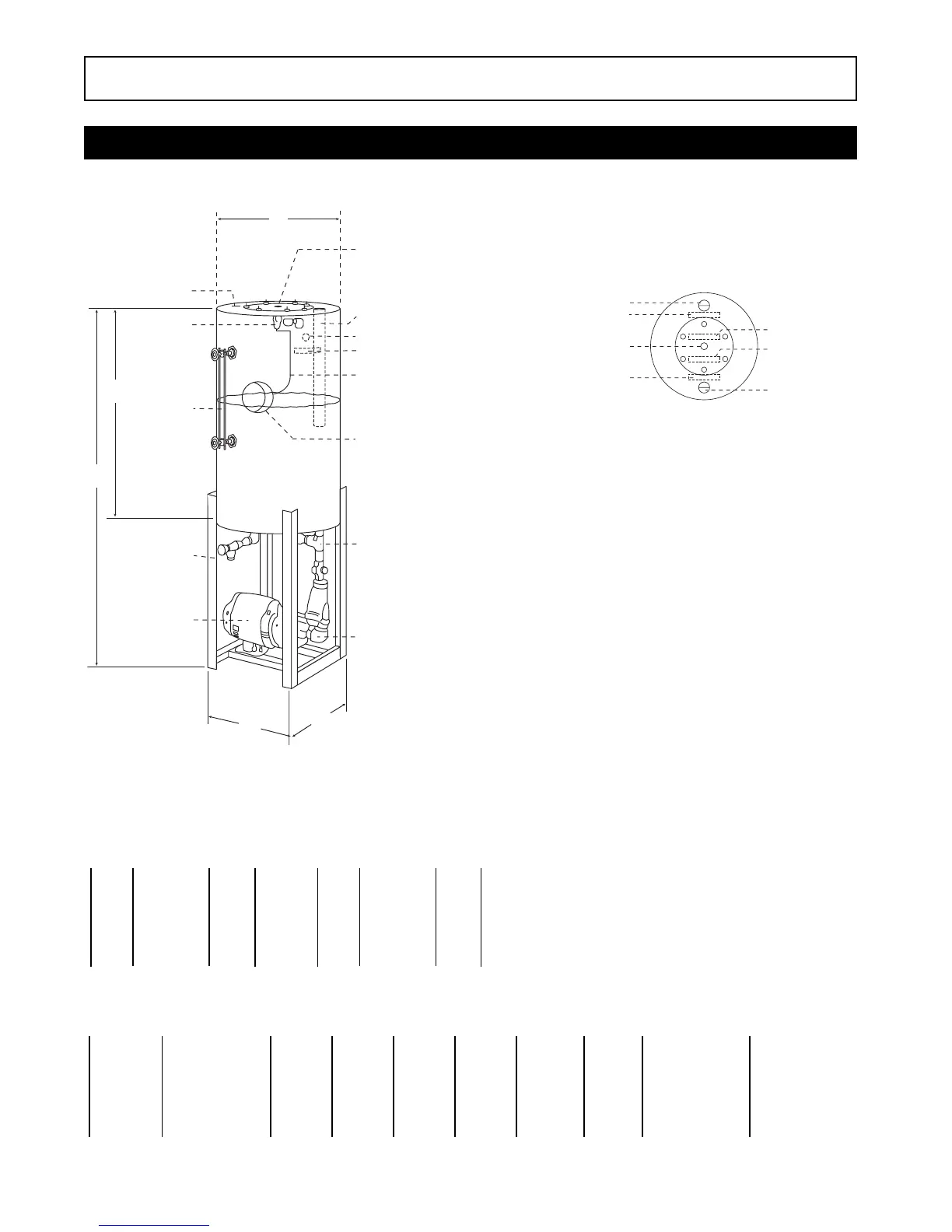

Models 38083V & 38084V
MODEL 38083V
___________________
PSIG HEAD GPM
___________________
54 125 ft. 3.2
___________________
75 175 ft. 2.9
___________________
97 225 ft. 2.7
___________________
_____________________________________________________________________________
PUMP MOTOR
MODEL Used on "A" "B" "C" "D" "E"` H.P. VOLT/PH/HZ
_____________________________________________________________________________
38083V ES12 - ES72 38-1/4" 18 14-1/4" 14 18 1/3 120 / 1 / 60
_____________________________________________________________________________
38084V ES100 - ES180 51-1/2" 18 14-1/4" 14 30 1/2 120 / 1/ 60
_____________________________________________________________________________
MODEL 38084V
___________________
PSIG HEAD GPM
___________________
54 125 ft. 4.6
___________________
75 175 ft. 4.3
___________________
97 225 ft. 4.0
___________________
B
E
A
D
C
9-
1
/2" DIA COVER PLATE
EASY ACCESS FOR MAINTENANCE
CONDENSATE RETURN FLASH TUBE
OVERFLOW OUTLET 1" NPT (farside)
OVERFLOW (label)
SIMPLE RUGGED LINKAGE
5" DIA UPPER FLOAT BALL
39011FB
SHUTOFF GATE VALVE
STRAINER CLEANOUT
VENT SAFETY BAR
FLOAT VALVE
39010-F
1-
1
/4"
SIGHT GLASS
99074-1
SITE GLASS ASSY
PN 99173C
1-
1
/4"
SIGHT GLASS
99074-1
PUMP EASY ACCESS
1-
1
/4" VENT WITH SAFETY BAR
VENT (label)
1/2" COLD WATER INLET COUPLING
WITH #100 MESH STRAINER
CONDENSATE RETURN (label)
TOP VIEW
COLD WATER INLET
(label)
LIMIT MAKEUP WATER PRESSURE
TO TO 30 PSI MAXIMUM” (label)
1-
1
/4" CONDENSATE
RETURN COUPLING
