Sussman Boilers
Installation, Operation & Maintenance Manual
17
Blowdown Separator Tanks-
Specifications and Data
Models BDT-ASME 36, 42, 48, 54
D
A
H
G
The Sussman Separator design incorporates a water
seal at the outlet which permits the operator to
introduce cold water from the bottom to mix with
the hot water and boiler steam blowdown in the
separator. This reduces the outlet temperature to
a level that makes it safe for discharge.
Note: 1BHP is approximately 10KW.

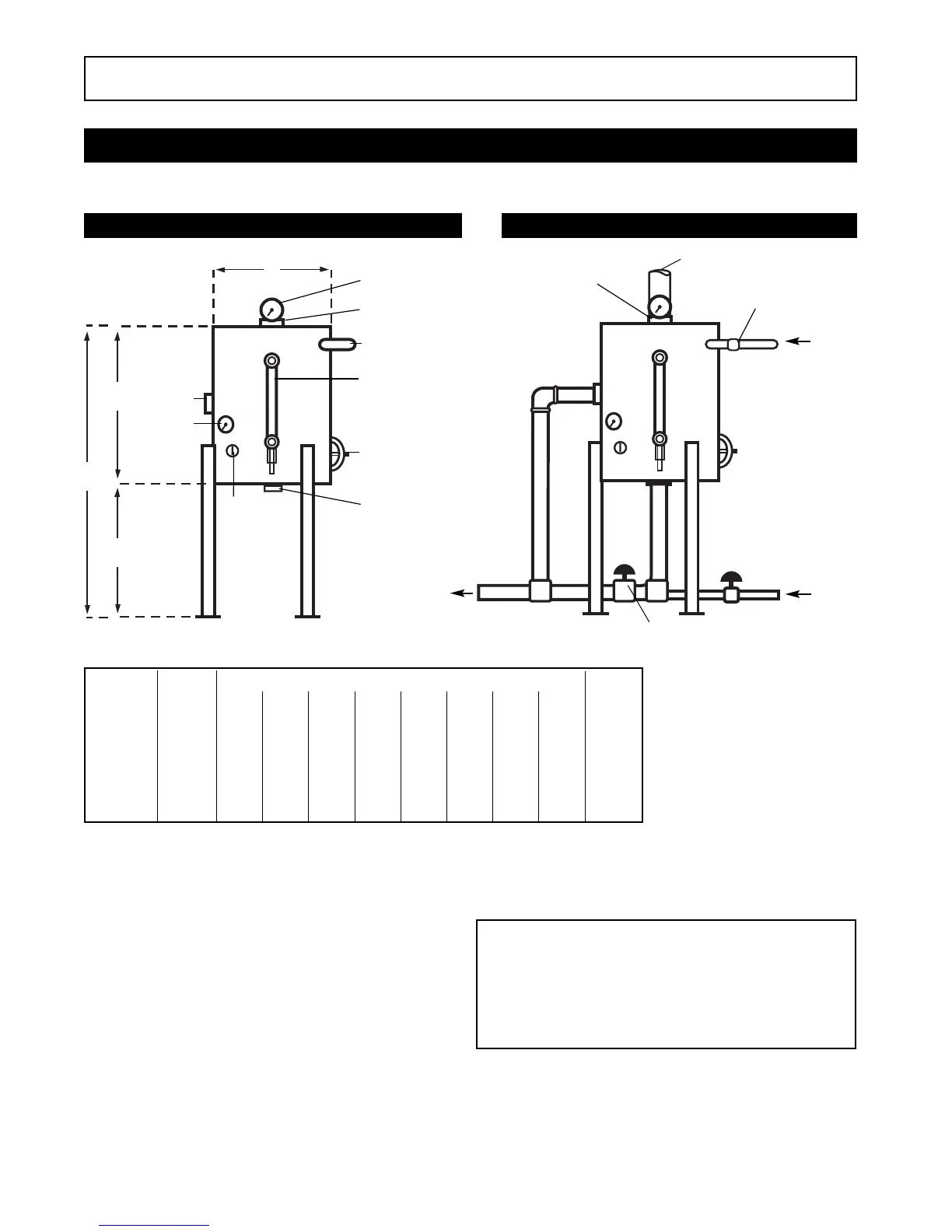

Dimensions and Features Suggested Hook-Up to Boiler
"C" Drain
Temperature
Gauge
Pressure Gauge
"E" Vent
"B" Inlet
Water Gauge
Handhole Assembly
3" x 4"
(except BDT-ASME 36)
"F" Cold Water Inlet
& Washout Drain
Maximum Boiler Working Pressure: 250 psi
Maximum Blowdown Separator Pressure: 65 psi
Blowdown Separators are sized in accordance with National Board Standards
Constructed in accordance with Section VII Division I ASME Boiler & Pressure Vessel Code
BOILER DIMENSIONS SHIPPING
________________________________________________
HP
A B C D E F G H WEIGHT
_______________________________________________________________________
BDT-ASME 36 0-5 18" 1" 2" 12" 2" 2" 14" 32" 125
_______________________________________________________________________
BDT-ASME 42 6-25 24" 1" 2" 18" 2-
1
⁄
2" 2" 18" 42" 230
_______________________________________________________________________
BDT-ASME 48 26-59 30" 1-
1
⁄4" 2" 16" 3" 2" 18" 48" 280
_______________________________________________________________________
BDT-ASME 54 60-100 38" 1-
1
⁄2" 3" 18" 4" 2" 18" 54" 290
Blowdown Separator
Blowdown Inlet
From Boiler
Blowdown Outlets
Cold Water Supply
3/4" Coupling
for Temperature
Probe (opt.)
Drain Valve (closed during normal operator)
Vent to atmosphere must be full size
Tempered
Blowdown
to Drain
Standard Equipment
• 0-100 lb. Pressure Gauge
• 0-200˚ Temperature Gauge
• Water Level Gauge
