6A2-46 ENGINE MECHANICAL (H25 ENGINE)

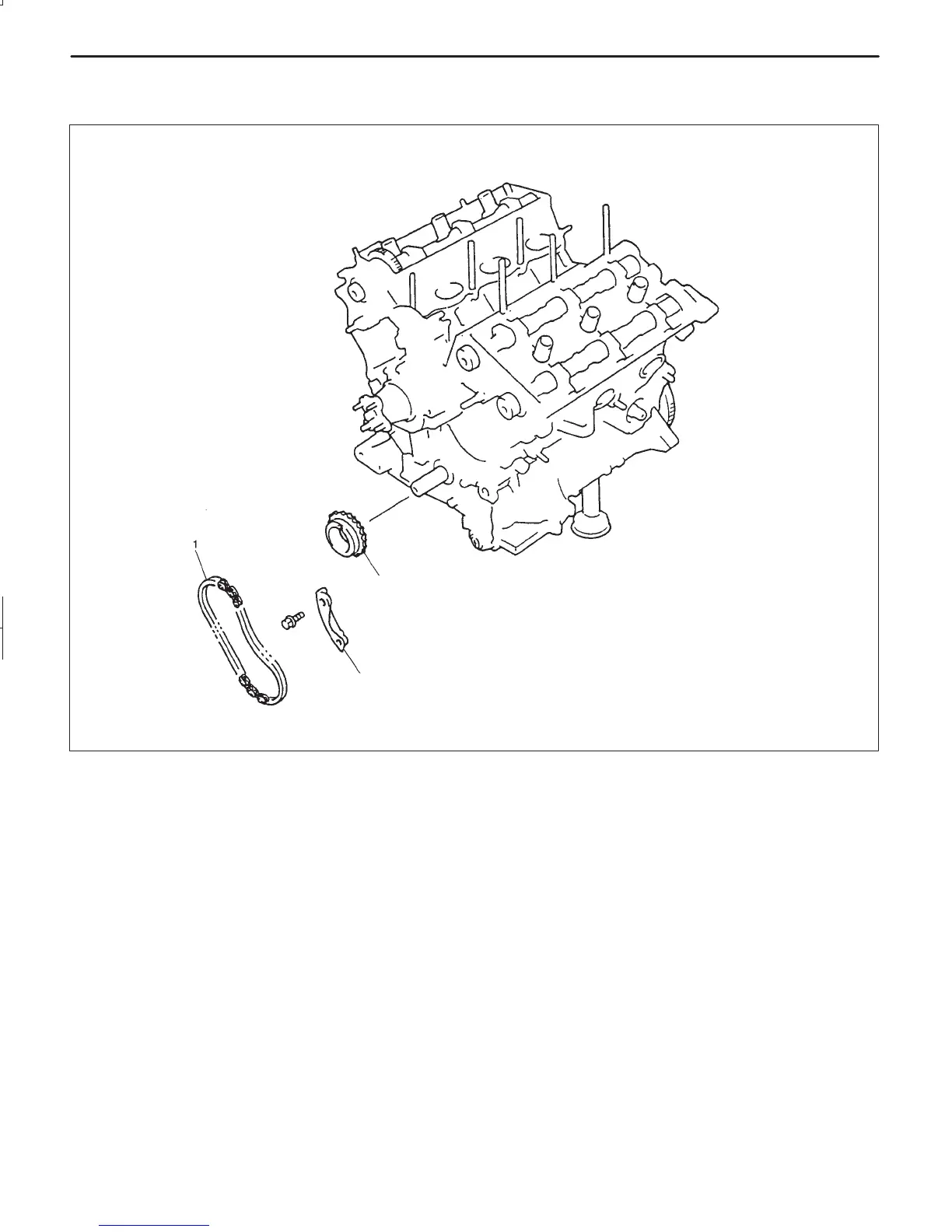

1. Oil pump chain
2. Oil pump drive sprocket
3. Oil pump chain tensioner
(oil pump guide)
3
2
OIL PUMP CHAIN
REMOVAL
1) Disconnect negative cable at battery.
2) Drain engine oil.
3) Drain coolant.
4) Remove timing chain cover.
Refer to item “TIMING CHAIN COVER” in this section for remov-
al.
5) Remove LH bank 2nd timing chain.
Refer to item “LH (NO.1) BANK 2ND TIMING CHAIN AND
CHAIN TENSIONER” in this section for removal.
6) Remove 1st timing chain.
Refer to item “1ST TIMING CHAIN AND CHAIN TENSIONER”
in this section for removal.
To Next Page
