ENGINE AND EMISSION CONTROL SYSTEM (H25 ENGINE) 6E2-13

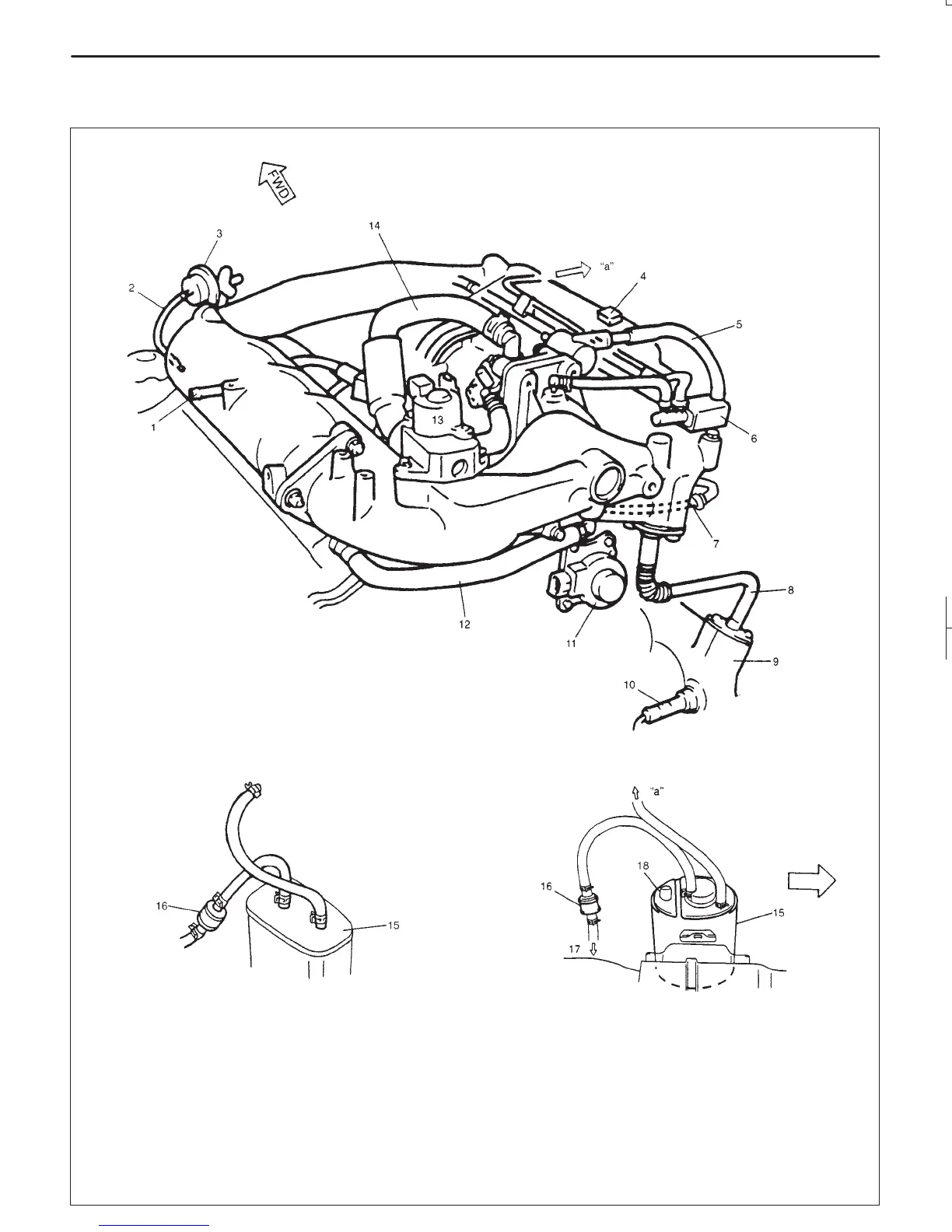

1. Brake booster hose pipe
2. Vacuum hose for fuel pressure regulator
3. Fuel pressure regulator
4. MAP sensor
5. Engine coolant hose
6. EVAP canister purge valve
7. Breather hose
8. EGR pipe
9. Exhaust manifold
10. Heated oxygen sensor
11. EGR valve
12. PCV hose
13. IAC valve
14. IAC hose
15. EVAP canister
16. Tank pressure control valve
17. Fuel tank
18. Air cap
FWD
[A] [B]
[A]: Vehicle without immobilizer indicator lamp
[B]: Vehicle with immobilizer indicator lamp
