YH4
GRAND
VITARA
“a”
6H-26 CHARGING SYSTEM

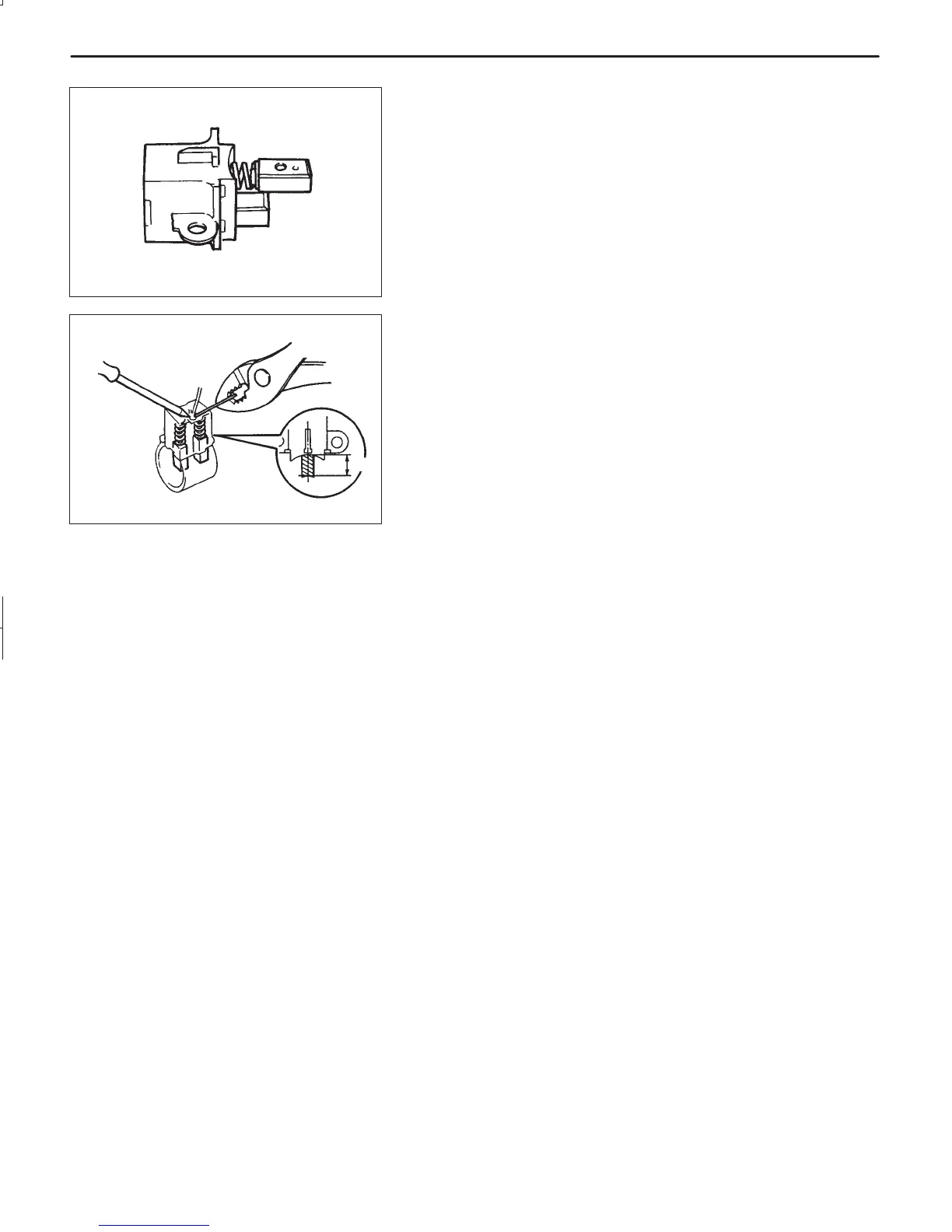

REPLACE BRUSH
[60 A type]
Refer to “DISASSEMBLY” and “REASSEMBLY” of 60 A type.
[70 A and 85 A types]
1) Remove rear end cover and then brush holder.
2) Unsolder and remove the brush and spring.
3) Run the wire of a new brush through the spring and the hole in
the brush holder, and insert the spring and brush into the brush
holder.
4) Solder the brush wire to the brush holder at specified exposed
length.
Exposed length “a”: 10.5 mm (0.413 in.)
5) Check that the brush moves smoothly in the brush holder.
6) Cut off the excess wire.
7) Apply insulation paint to the soldered area.
To Next Page
