Suzuki df2.5 - Driveshaft Housing, Swivel Bracket, and Clamp Bracket Disassembly

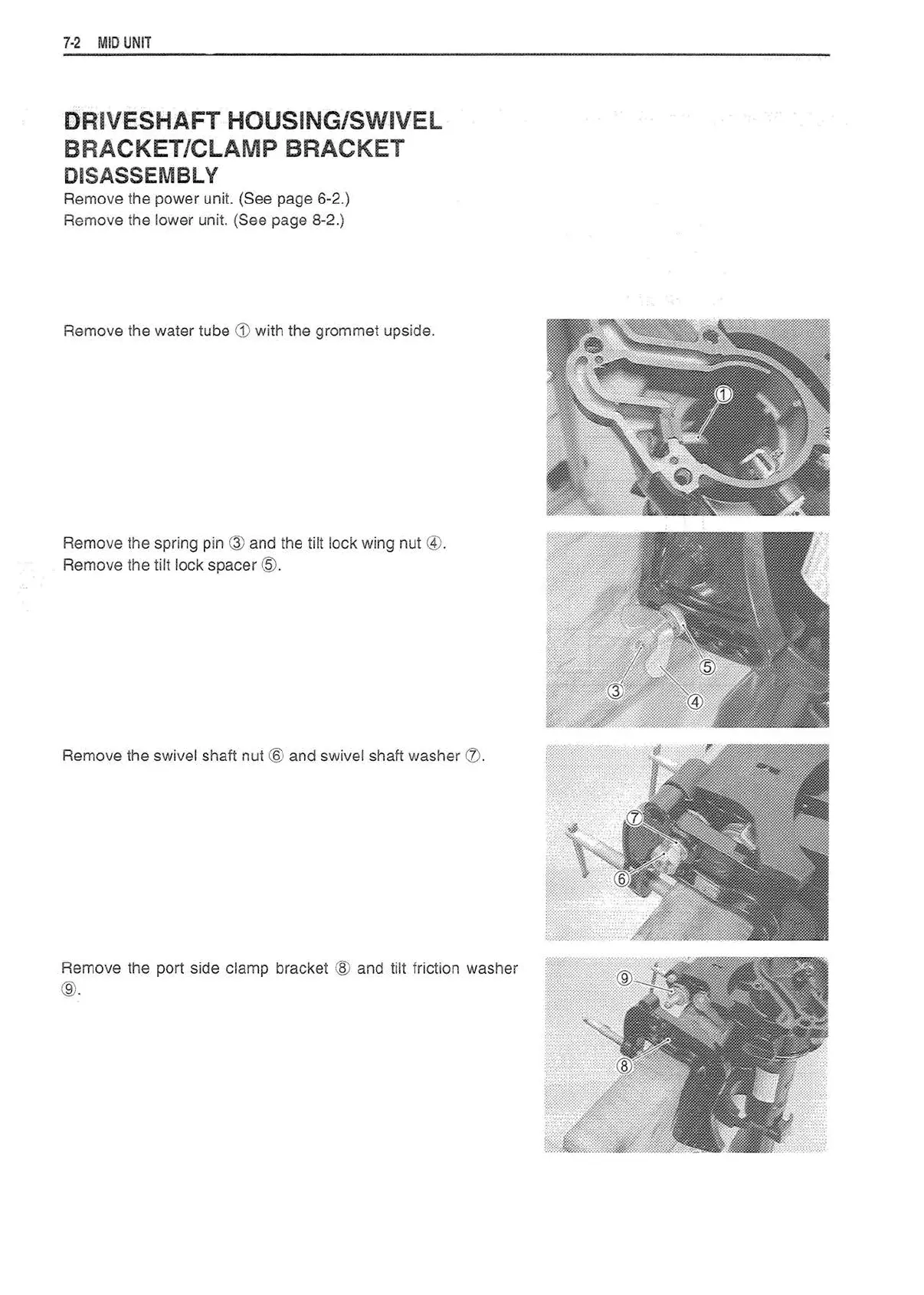

7·2 MID UNIT
DRIVESHAFT ·· HOUSING/SWIVEL
BRACKET/CLAMP BRACKET
DISASSEMBLY
Remove the power unit. (See page 6-2.)
Remove
th e lower unit. (See page 8-2 .)
Remove the water tube
CD with the grommet upside.
Remove the spring pin
@ and th e tilt lo ck wing nut @.
Remove the tilt lock spacer @.
Remove the
swivel shaft nut@ and swivel sha ft washer(/) .
Remove the port side clamp bracket ® and tilt friction washer
® .
