Suzuki df2.5 - Propellers

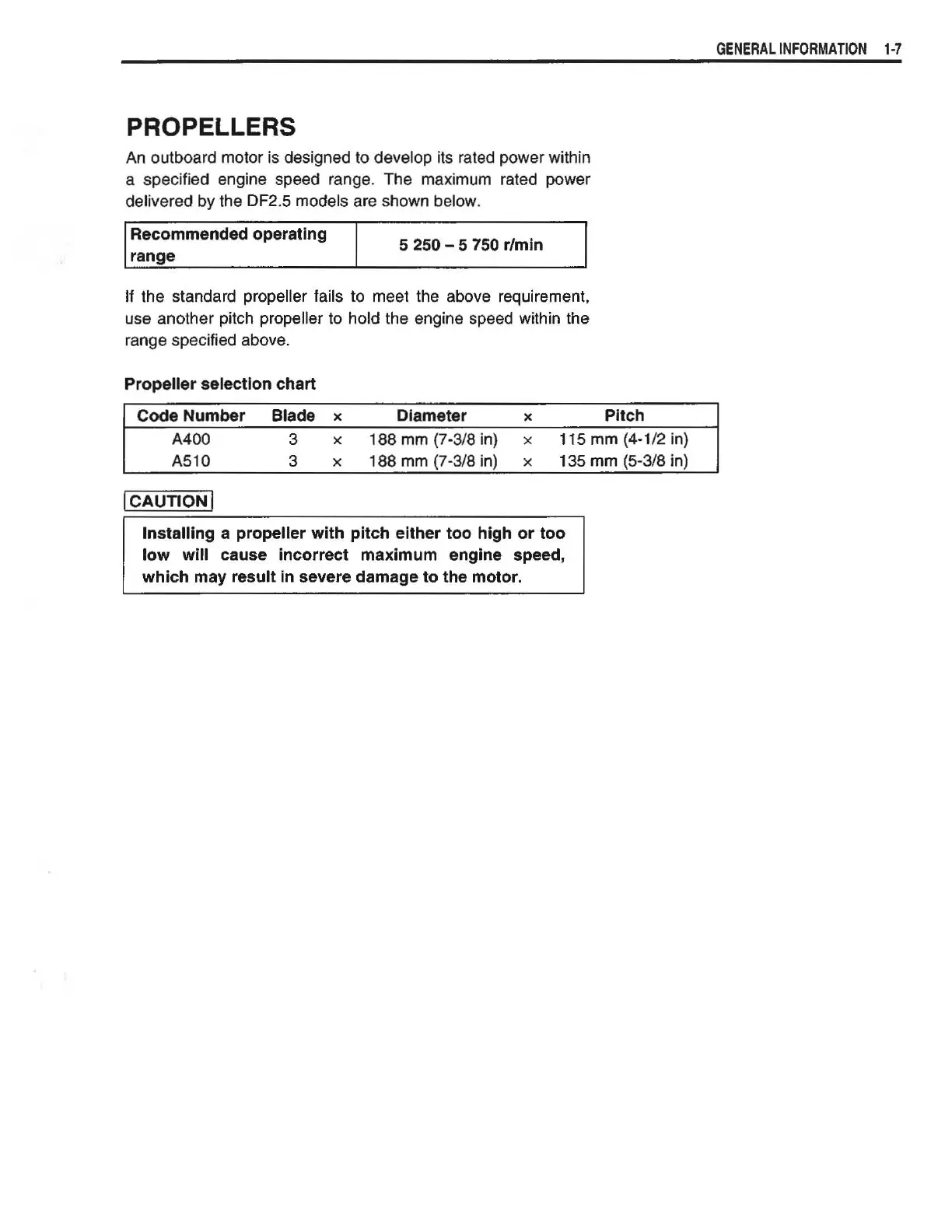

PROPELLERS
An outboard motor is designed to develop its rated power within
a specified engine speed range. The maximum rated power
delivered by the DF2.5 models are shown below.
Recommended operating
5 250 - 5 750 r/min
range
If the standard propeller tails to meet the above requirement,
use another pitch propeller to hold the engine speed within the
range specified above.
Propeller selection chart
Code Number Blade x Diameter x Pitch
A400
A510
3 X
3 X
188 mm (7-3/8 in) x
188 mm (7 -3/8 in) x
115 mm (4-1/2 in)
135
mm (5-3/8 in)
I CAUTION I
Installing a propeller with pitch either too high or too
low will cause incorrect maximum engine speed,
which may result in severe damage to the motor.
GENERAL INFORMATION 1-7
