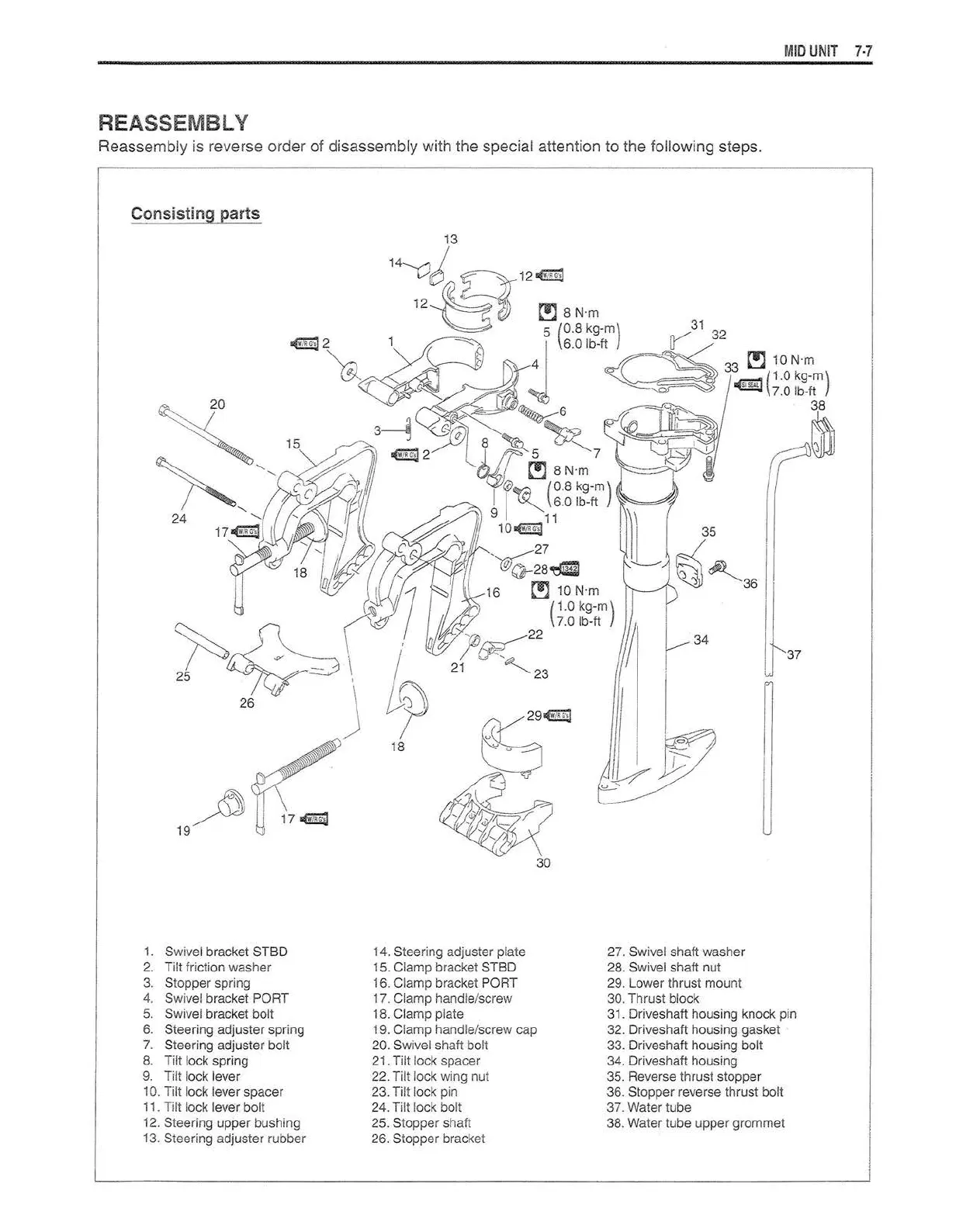

MID UNIT 7·7
REASSE MBLY
Reassembly is reverse order of disassembly with the special attention to the following steps.
Consisting parts
17€E
1. Swivel bracket STBD
2. Tilt friction washer
3. Stopper spring
4. Swivel bracket PORT
5. Swivel bracket bolt
6. Steering adjuster spring
7. Stee ring adjuster bolt
8. Tilt lock spring
9. Tilt lock lever
1
0. Tilt lock lever spacer
11 . Tilt lock lever bolt
12. Steering upper bushing
13. Steering adjuster rubber
14.
Steering adjuster plate
1 5. Clamp bracket STBD
16. Clamp bracket PORT
17. Clamp handle/screw
18. Clamp plate
\
30
19. Clamp handle/screw cap
20. Swivel shaft bolt
21.
Tilt lock spacer
22. Tilt lock wing nut
23.
Tilt l oc k pin
2
4. Tilt lock bolt
25. Stopper shaft
26. Stopper brack
et
27. Swivel shaft washer
28. Swivet shaft nut
29. Lower thrust mount
30. Thrust block
3
1. Driveshaft housing knock pin
32 . Driveshaft housing gasket
·
33. Driveshaft housing bolt
34. Driveshaft housing
35. Reverse thrust stopper
36. Stopper reverse thrust bolt
37. Water tube
38. Water tube upper grommet
