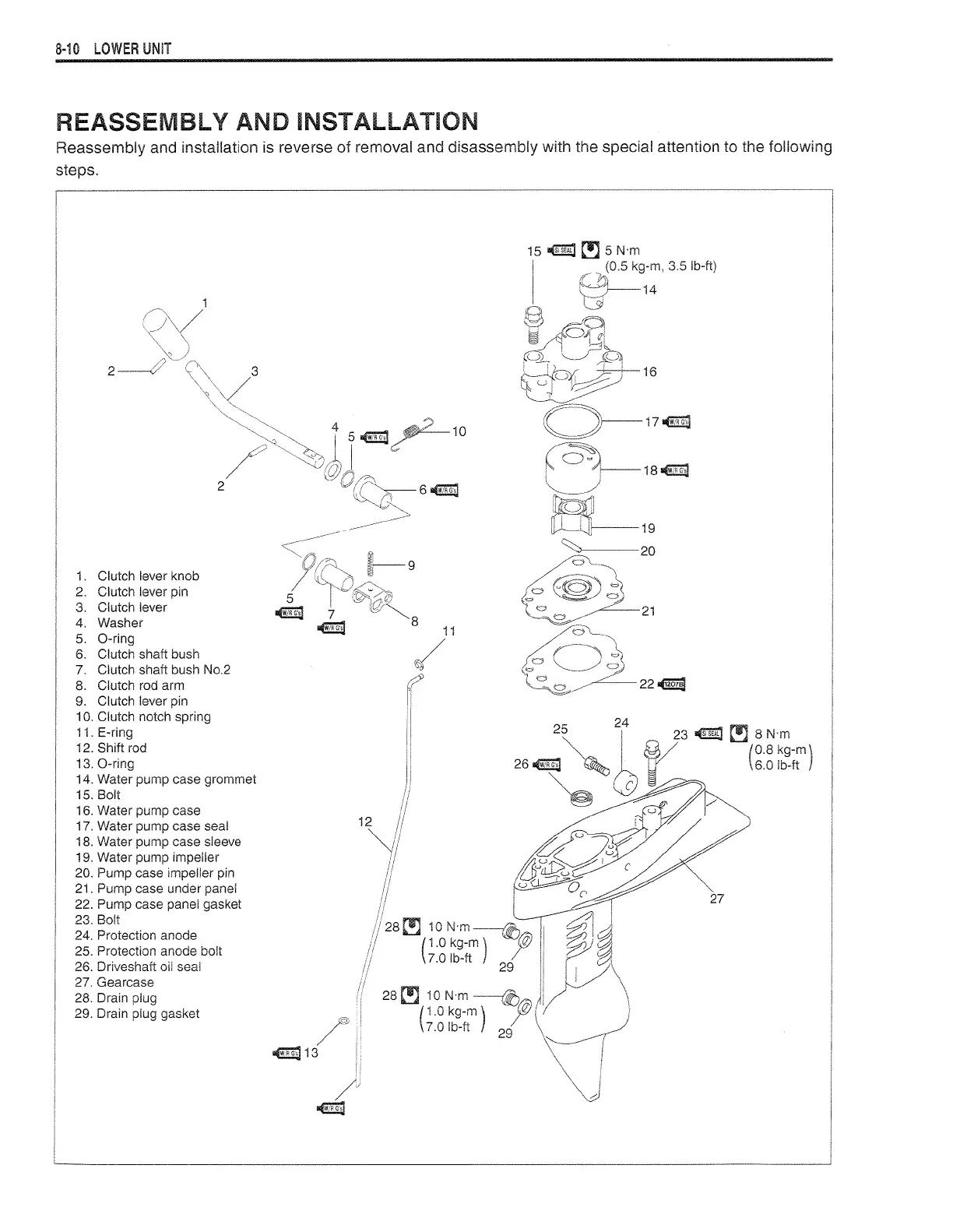

8·10 LOWER UNIT
REASSEMBLY AND INSTALLATION
Reassembly and installation is reverse of removal and disassembly with the special attention to the following
steps.
2
1 Clutch lever knob
2. Clutch lever pin
3. Clutch lever
4. Washer
5. 0-ring
6. Clutch shaft bush
7. Clutch shaft bush No.2
8. Clutch rod arm
9. Clutch lever pin
10. Clutch notch spring
11. E-ring
12. Shift rod
13.
0-ring
14. Water pump case grommet
15. Bolt
16. Water pump case
17. Water pump case seal
18. Water pump case sleeve
19. Water pump
impeller
20. Pump
case impeller pin
21.
Pump case under
22.
Pump case panel gasket
23. Bolt
24. Protection anode
25.
Protection anode bolt
26. Driveshalt oil seal
27. Gearcase
28. Drain
29. Drain
plug gasket
15 €SJ 5 N·m
9
I 1
/
26
28
t!J 10 N·m
(
1.0
kg-m) T
7.0 lb-ft 29
(
1.0
kg-m) T
7.0 lb-ft 29
3.5
lb-ft)
€gj t!J 8 N·m
27
(
0.8
kg-m)
6.0 lb-ft
