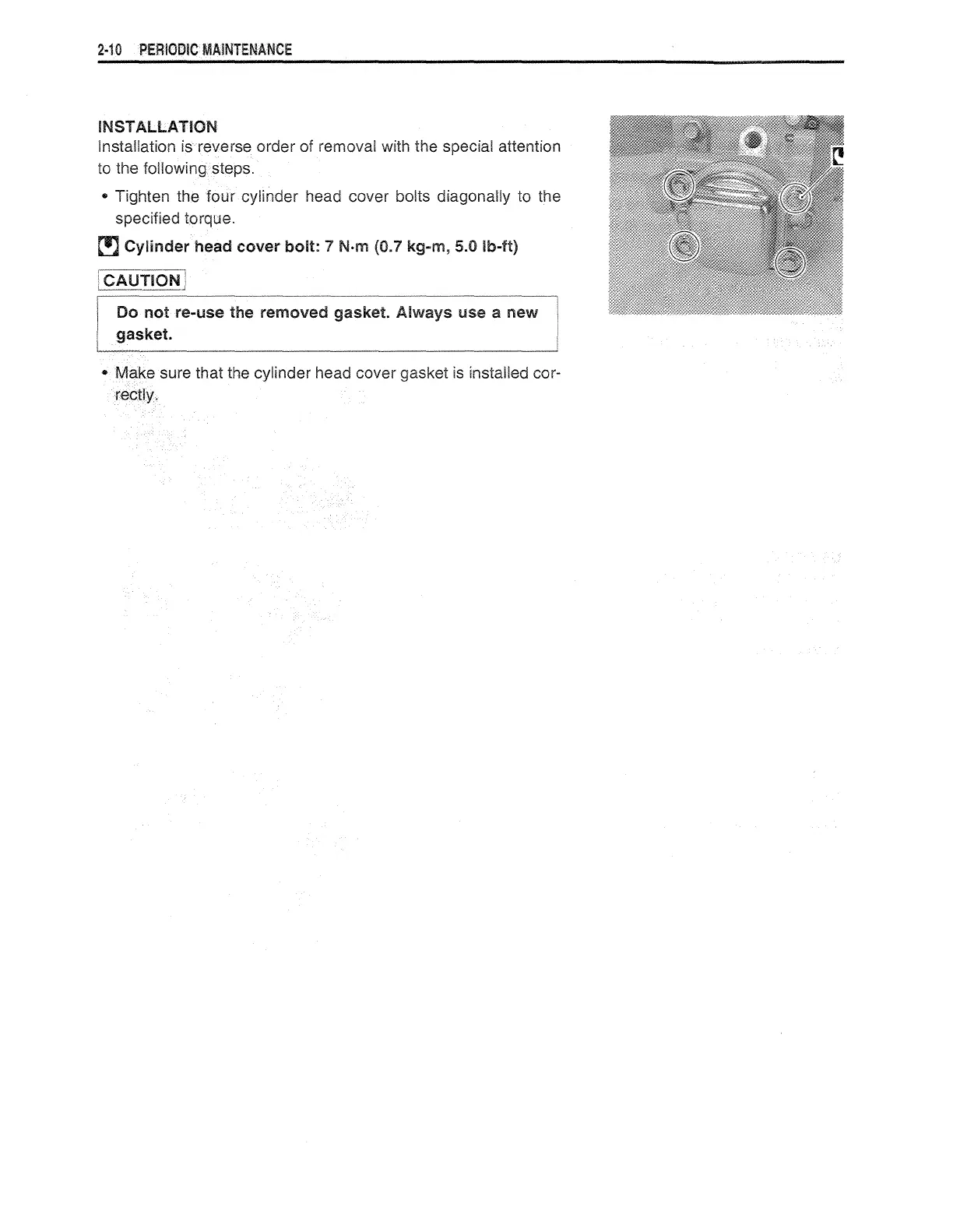

Suzuki df2.5 - Page 28

2·10 P.ERIODIC MAINTENANCE
INSTALLATION
Installation
is reverse order of removal with the special attention
to the
following steps.
• Tighten the four cylinder head cover bolts diagonally to the
specified torque.
Cylinder head cover bolt: 7 N·m (0. 7 kg-m, 5.0 lb-ft)
fCAUTIONI
-' ____ .J
Do not re-use the removed gasket. Always use a new
• Make sure that the cylinder head cover gasket is installed cor-
rectly.
