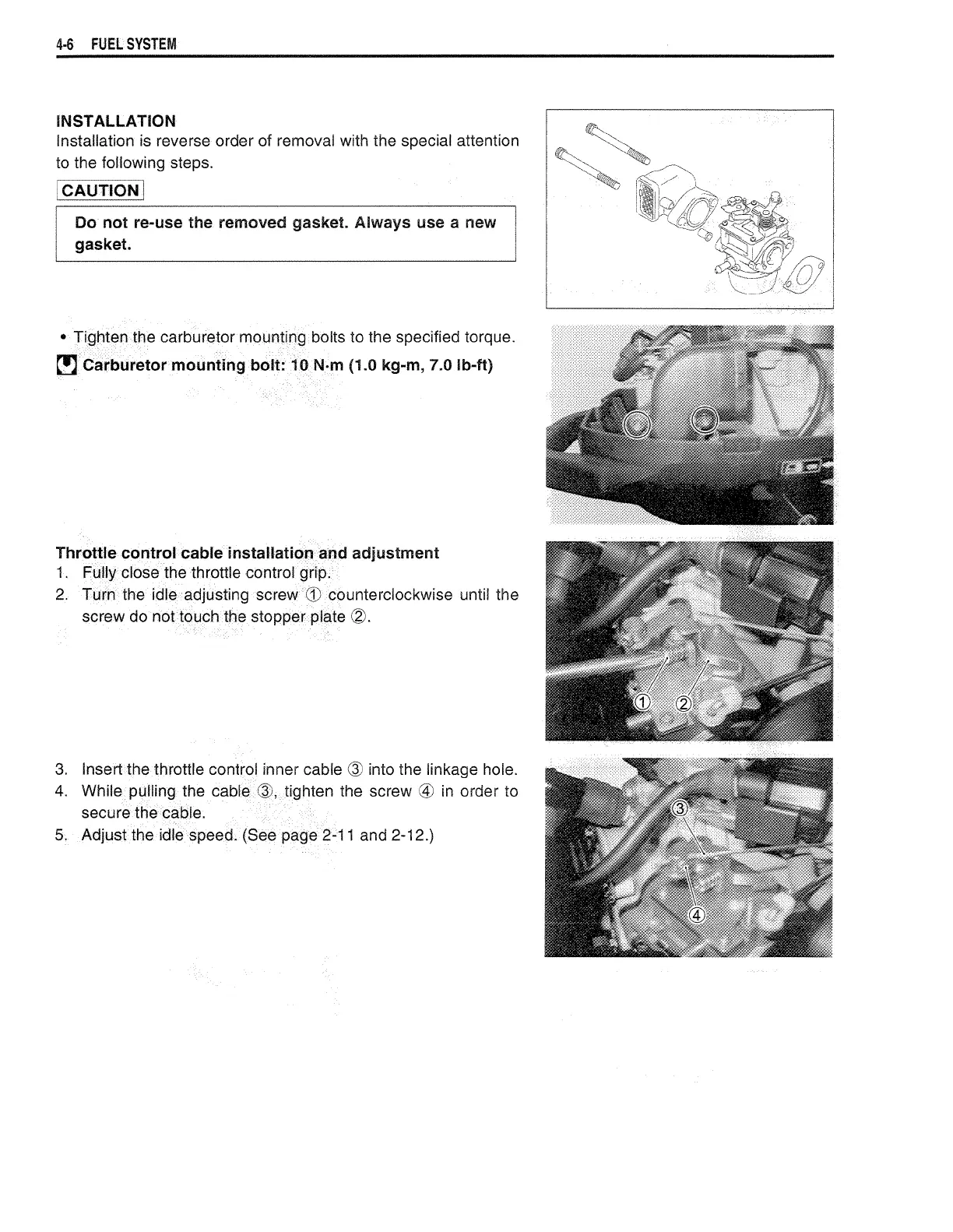

4-6
FUEL
SYSTEM
INSTALLATION
Installation
is
reverse order of removal with the special attention
to the
following steps.
,CAUTION!
Do
not
re-use the removed gasket.
Always
use a new
gasket.
• Tighten the carburetor mounting bolts to the specified torque.
(!]carburetor
mounting
bolt: 10 N·m (1.0 kg-m, 7.0 lb-ft)
Throttle
control
cable installation and
adjustment
1.
Fully close the throttle control grip.
2.
Turn the idle adjusting screw counterclockwise until the
screw do not touch the stopper
3.
Insert the throttle control inner cable @ into the linkage hole.
4.
While pulling the cable @, tighten the screw @
in
order to
secure the
cable.
5.
Adjust the idle speed. (See page
2-11
and 2-12.)
