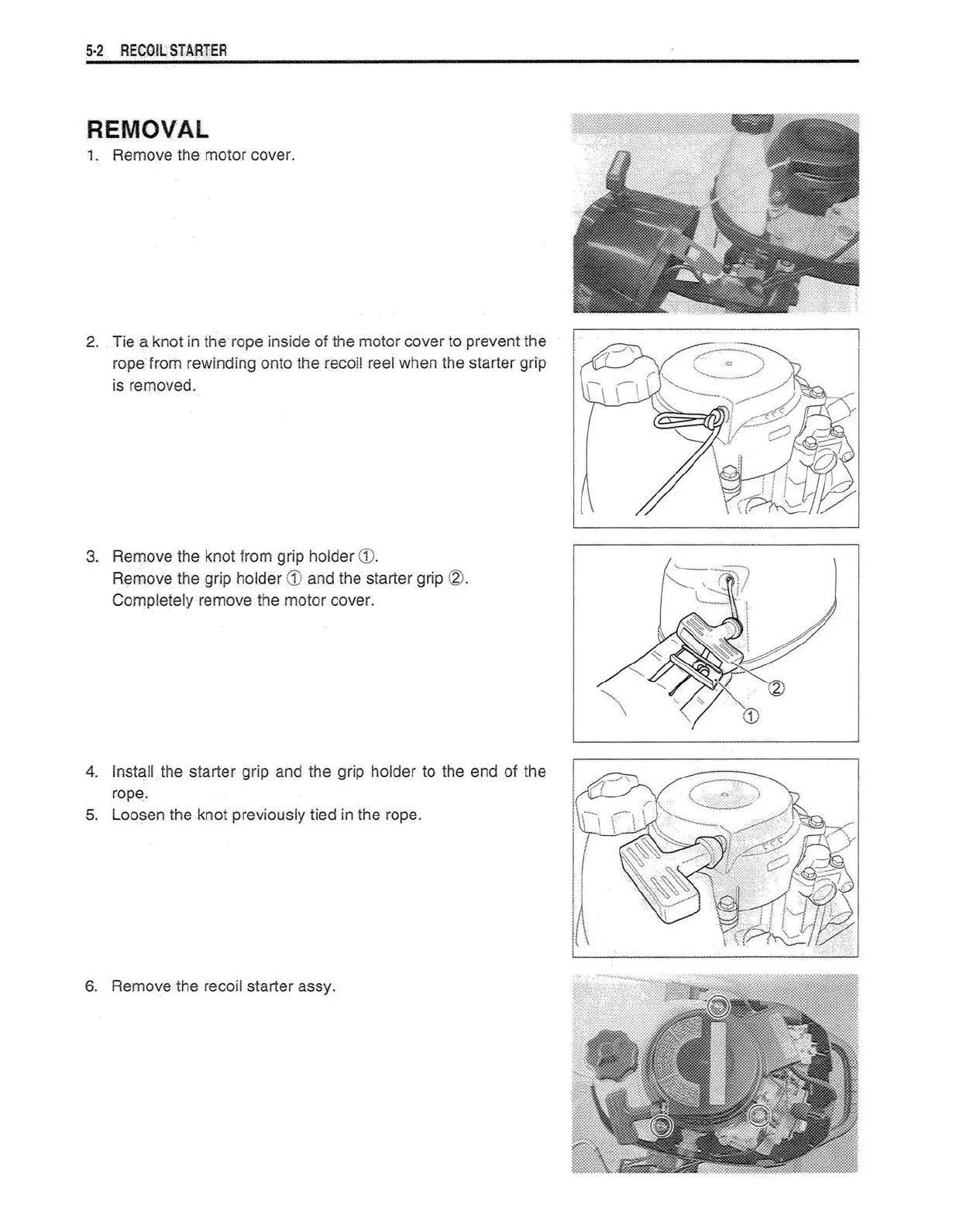

5·2 . RECO . IL SIAB:tER
REMOVAL
i. Re move the motor cover.
2. Tie a knot in the rope in side of the motor cover to preventthe
rope fr
orn rewinding onto the recoH reel when the starter gr ip
is removed .
3. Remove th e knot from grip holder G) .
Re mo ve the grip holder G) and t he sta rt er grip ell.
Co mpletely remove th e motor cover.
4. ln sta iUh e starter g ri p and the grip holder to th e end of th e
5. Loosen the kn ot previously tied in the rope.
6. Re move th e re co il starter assy.
