Suzuki DF225 - Location of Parts; Control System Components; Gauges and Indicators

10

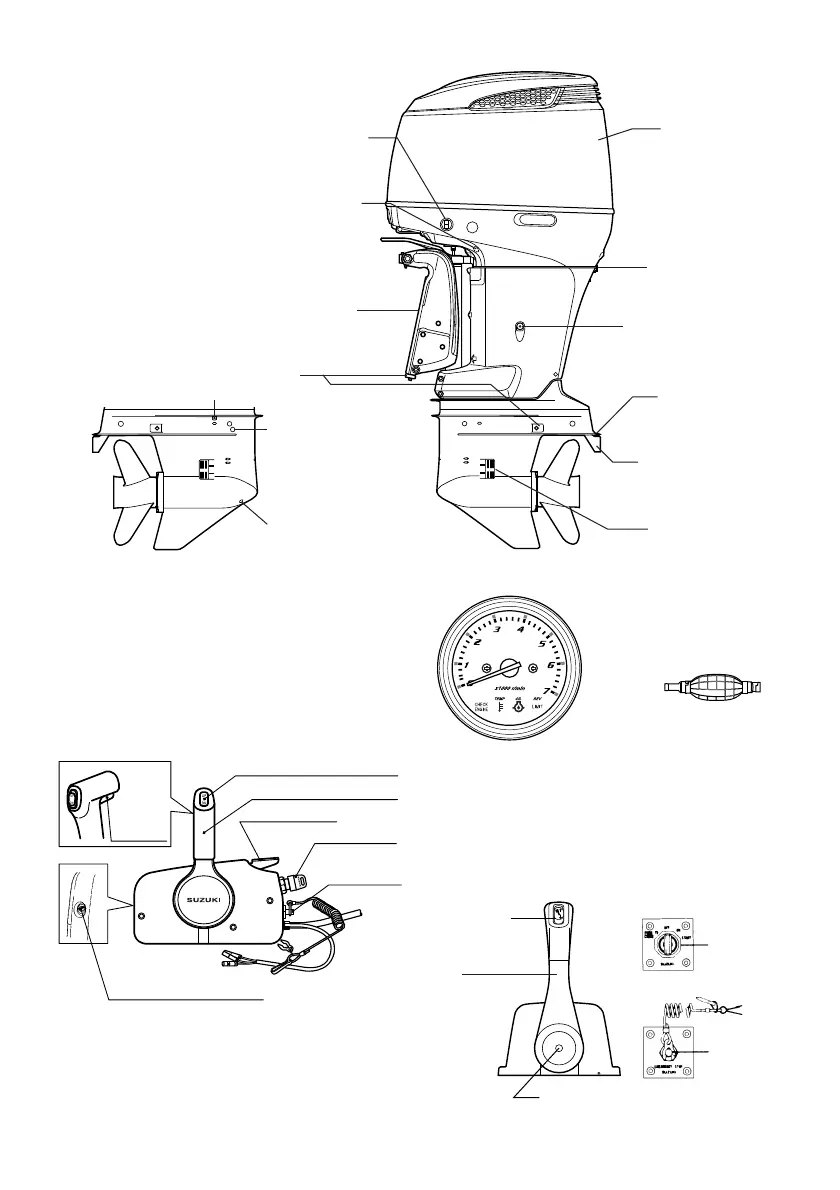

LOCATION OF PARTS
SIDE MOUNT TYPE
TOP MOUNT TYPE
PRIMING BULB
MONITOR-TACHOMETER
Power trim and tilt (P.T.T.)
switch
Remote control handle
Warm-up lever
Lock-out
lever
Ignition key
Emergency
stop switch
Throttle tension adjuster
REMOTE CONTROL BOX (Option)
Power trim and tilt
(P.T.T.) switch
Remote control
handle
Free accelerator button
Ignition key
Emergency
stop switch
Engine oil drain plug
Flush plug
Clamp bracket
Anode
Water intake hole
Power trim and tilt
(P.T.T.) switch
Pilot water hole
(Reverse side)
Anti-cavitation
plate
Trim tab
Motor cover
Gear oil level plug
Air vent hole plug
Gear oil drain plug
