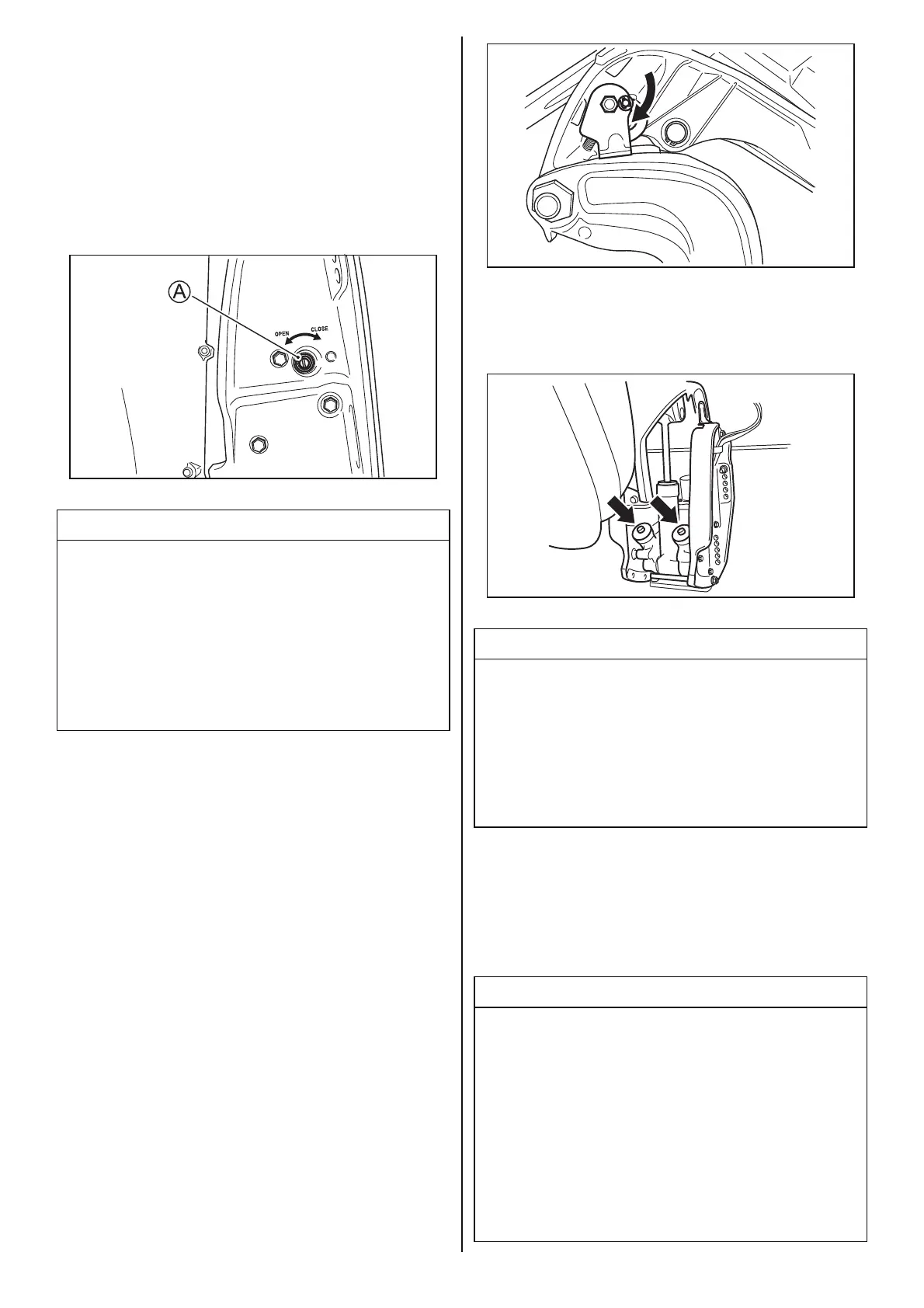

MANUAL TILTING
If you are unable to tilt the motor using the
“Power Trim and Tilt” because of an electrical
problem or some other problem, you can move
the motor manually. To tilt the motor up or
down, turn the manual release valve A two
turns counterclockwise, move the motor to the
desired position, then retighten the release
screw.
TILT LOCK LEVER
The Tilt Lock Lever is provided so you can sup-
port the motor in a tilted position for non-moving
engine support.
To set the Tilt Lock Lever:
1. Tilt the motor all the way up by pressing the
Power Trim and Tilt “UP” switch.
2. Pull down the Tilt Lock Lever as shown in the
illustration.
3. Lower the motor by pressing the Power Trim
and Tilt “DOWN” switch, until the motor is
supported by the Tilt Lock Lever.
8
CAUTION
The motor is very heavy. When you tilt it man-
ually, you could injure your back or slip and
fall causing injury.
When you tilt the motor manually, ensure that
your grip and footing are secure and that you
are able to support the weight of the engine.
4. Continue to operate the Power Trim and Tilt
“DOWN” switch until the trim rods are com-
pletely retracted.
To release the Tilt Lock Lever, tilt the motor all
the way up using the Power Trim and Tilt “UP”
switch, and pull up the Tilt Lock Lever.
If equipped with Keyless Start System:
NOTICE
If you do not retract the trim rams completely
when mooring, they may become deteriorated
or corroded.
Be sure to retract the trim rams completely
when mooring.
8
CAUTION
The remote Power Trim and Tilt switch will
work when the Keyless start system is off. If
someone activates the switch while you are
moving the tilt lock lever, your hand could be
injured.
Keep all persons away from the remote Power
Trim and Tilt switch while you are moving the
tilt lock lever.
