7-39
Headlight

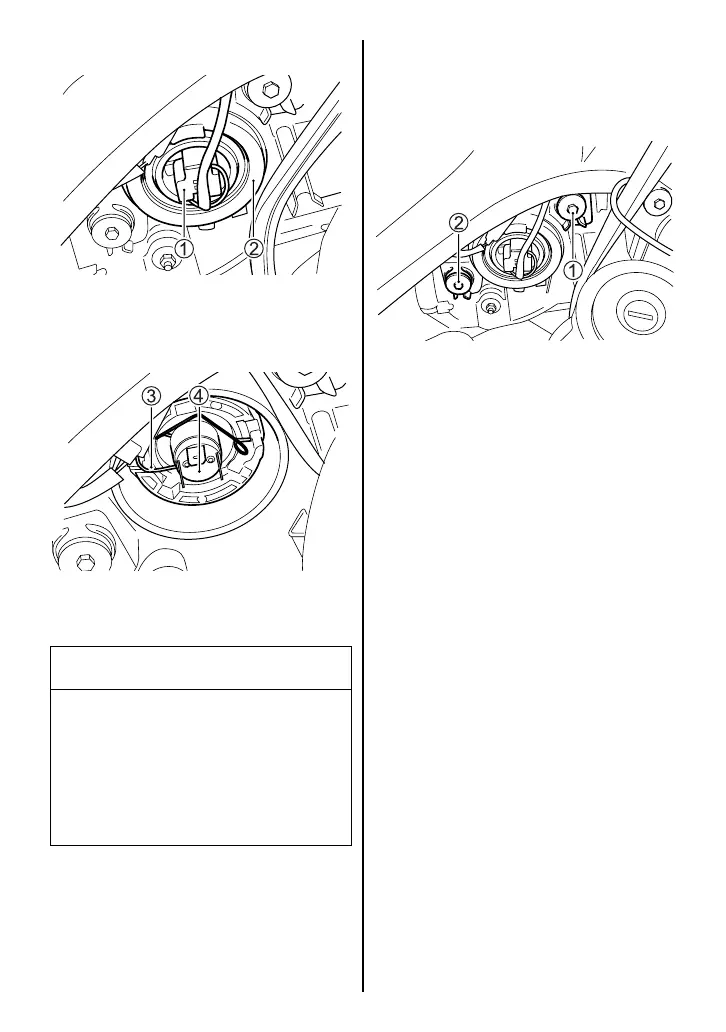

1. Disconnect the socket 1 from
the headlight and remove the
rubber cap 2.
2. Unhook the bulb holder spring
3 and pull out the bulb 4.
Headlight Beam Adjustment
The headlight beam can be
adjusted both horizontally and
vertically if necessary.
To adjust the beam horizontally:
Turn the adjuster 1 clockwise or
counterclockwise.
To adjust the beam vertically:
Turn the adjuster 2 clockwise or
counterclockwise.
NOTE: To adjust the headlight
beam, adjust the beam horizon-
tally first, then adjust vertically.
CAUTION
Oil from your skin may damage
the headlight bulb or shorten
its life.
Grasp the new bulb with a
clean cloth.
