CHASSIS 5-11

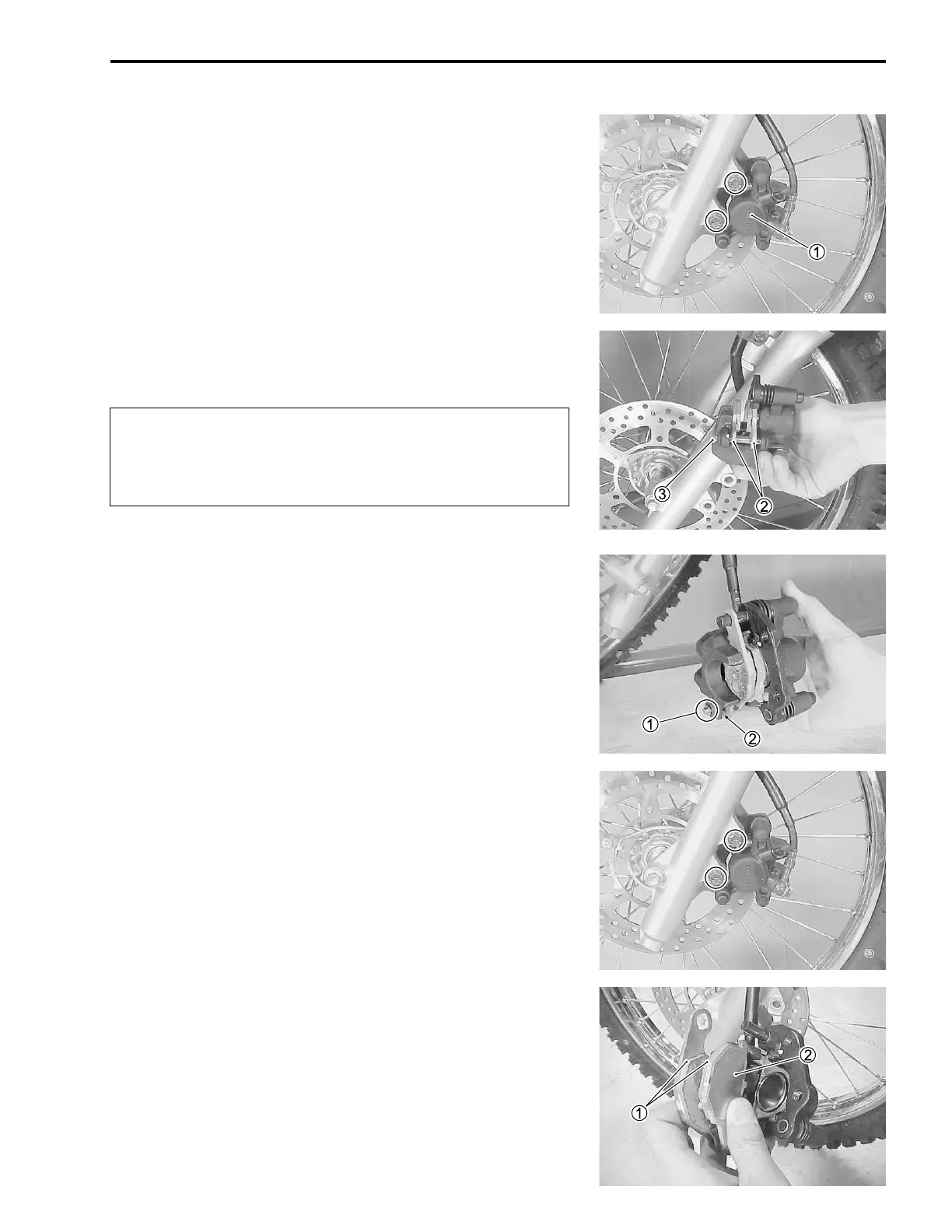

BRAKE PAD REPLACEMENT
REMOVAL
• Remove the brake caliper
1.
• Remove the brake pads
2 and shim by removing the brake
pad mounting pin
3.
#
INSTALLATION
• Remont the brake pad mounting pin
1.
• Install the pin
2.
• Tighten the brake caliper mounting bolts to the specified
torque.
& Brake caliper mounting bolt:
23 N·m (2.3 kgf-m, 16.5 lb-ft)
NOTE:
After replacing the brake pads, pump the brake lever a few times
to check for proper brake operation and then check the brake
fluid level.
• Install the new brake pads
1 and shim 2.
* Do not operate the brake lever after brake pad
removal.
* Replace the brake pad as a set, otherwise braking
performance will be adversely affected.

Suzuki DR 125 Specifications

General

Displacement	124cc
Compression Ratio	9.5:1
Transmission	5-speed constant mesh
Bore x Stroke	57.0 mm x 48.8 mm
Ignition	CDI
Front Suspension	Telescopic, oil damped
Rear Suspension	coil spring, oil damped
Front Brake	Disc brake
Rear Brake	Drum
Ground Clearance	265 mm
