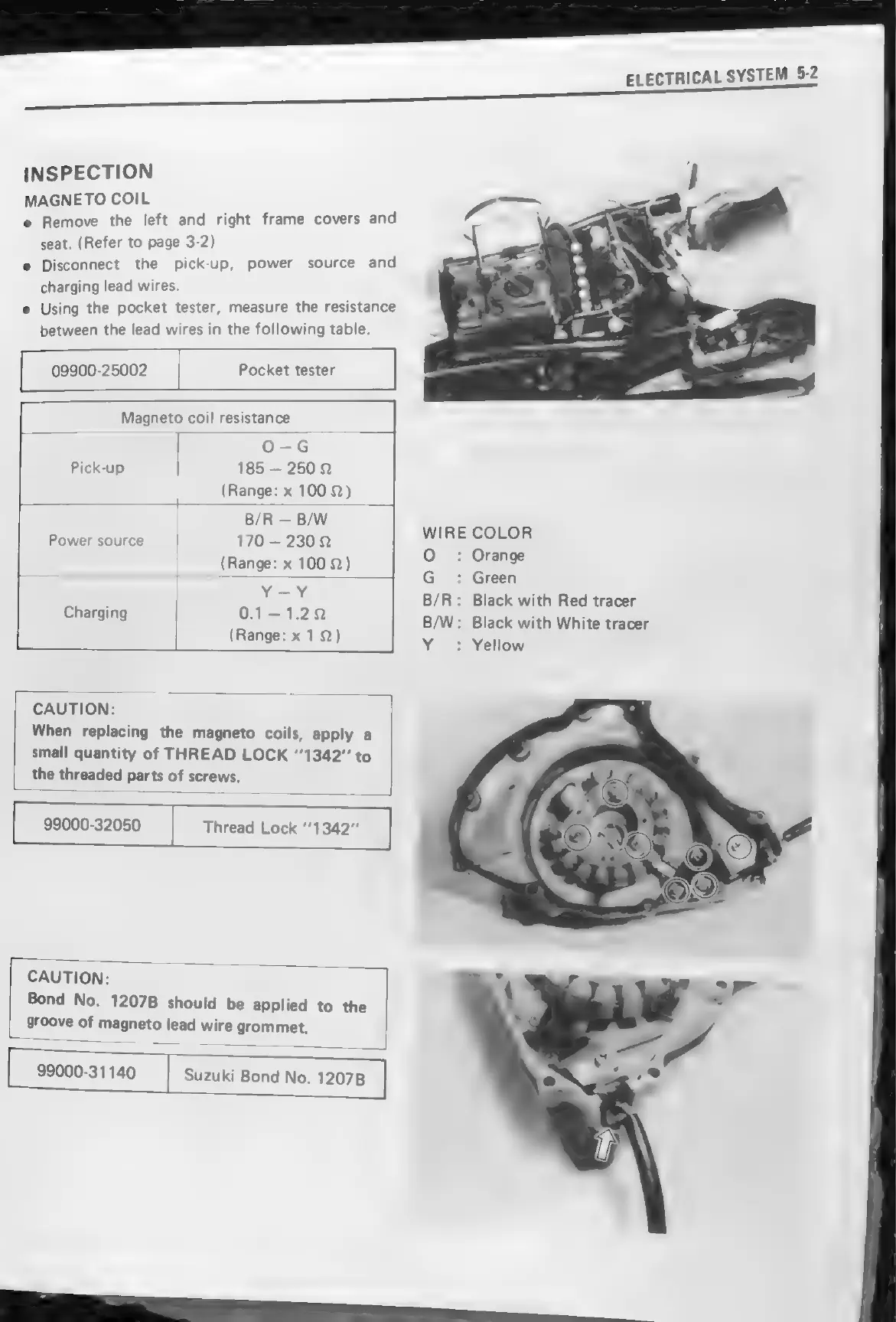

Suzuki DR600S - Magneto Coil Inspection

ELECTRICAL
SYSTEM
5-2
eee
INSPECTION
MAGNETO
COIL
e
Remove
the
left
and
right
frame
covers
and
seat.
(Refer
to
page
3-2)
e Disconnect the pick-up, power
charging lead wires.
e Using the pocket tester, measure the resistance
between the lead wires in the following table.
source and
09900-25002 Pocket tester
Magneto coil resistance
] O=G
Pick-up 185 — 2502
(Range: x 100 2)
— a aS
B/R — B/W
Power source 170 — 2302
(Range: x 100 2)
Y-Y
Charging 0.1-1.22
(Range: x 1 2)
CAUTION:
When
replacing
the
magneto
coils,
apply
a
small
quantity
of
THREAD
LOCK
“1342”
to
the
threaded
parts
of
screws.
_———
99000-32050
|
Thread
Lock
“1342”
CAUTION:
Bond
No.
1207B
should
be
applied
to
the
groove
of
magneto
lead
wire
grommet.
99000-31140
|
Suzuki
Bond
No.
1207B
WIRE COLOR
O- : Orange
G : Green
B/R: Black with Red tracer
B/W: Black with White tracer
Y : Yellow
