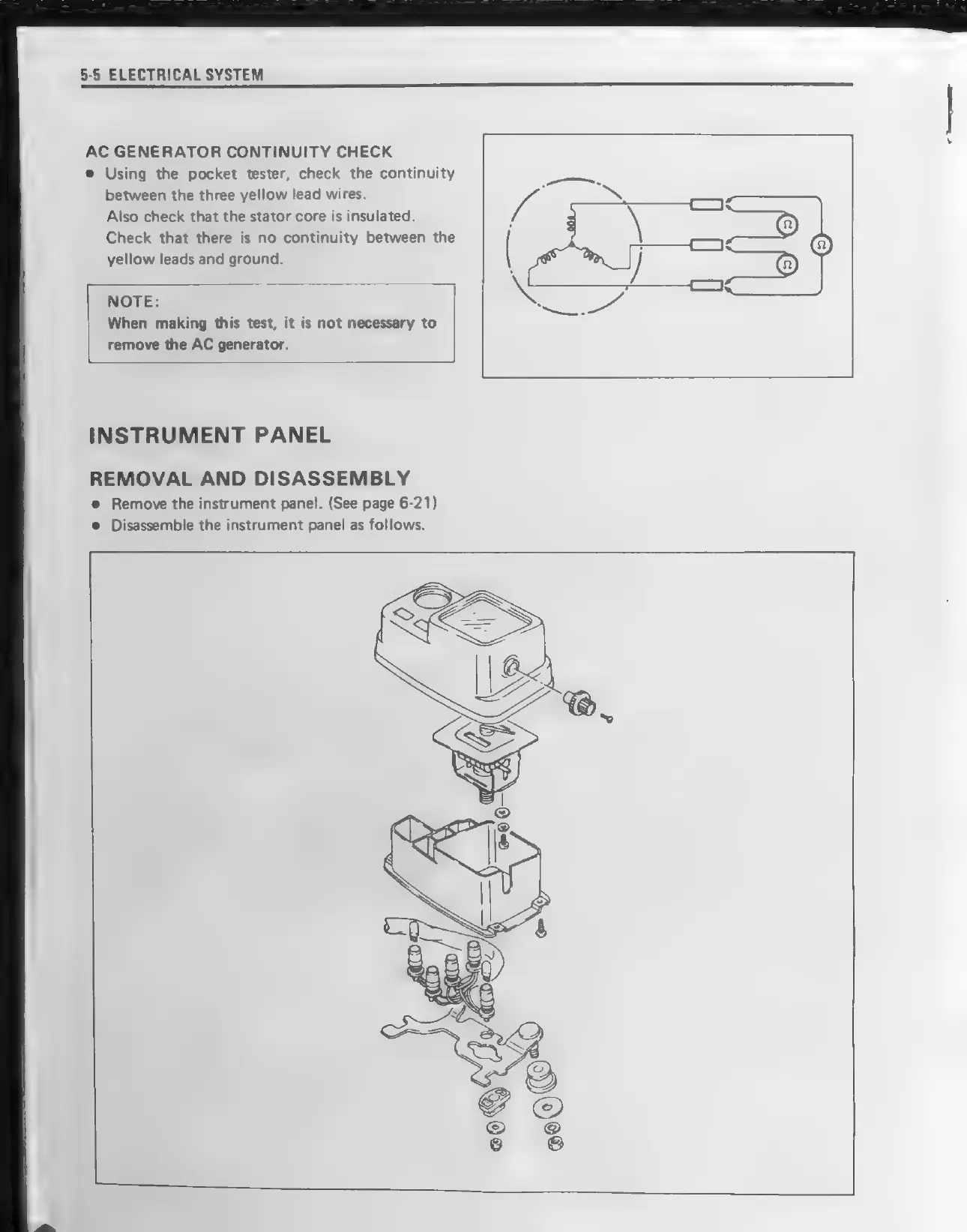

5-5 ELECTRICAL SYSTEM
AC GENERATOR CONTINUITY CHECK
e Using the pocket tester, check the continuity
between the three yellow lead wires.
Also check that the stator core is insulated.
Check that there is no continuity between the
yellow leads and ground.
NOTE:
When making this test, it is not necessary to
remove the AC generator.
INSTRUMENT PANEL
REMOVAL AND DISASSEMBLY
e Remove the instrument panel. (See page 6-21)
@ Disassemble the instrument panel as follows.
