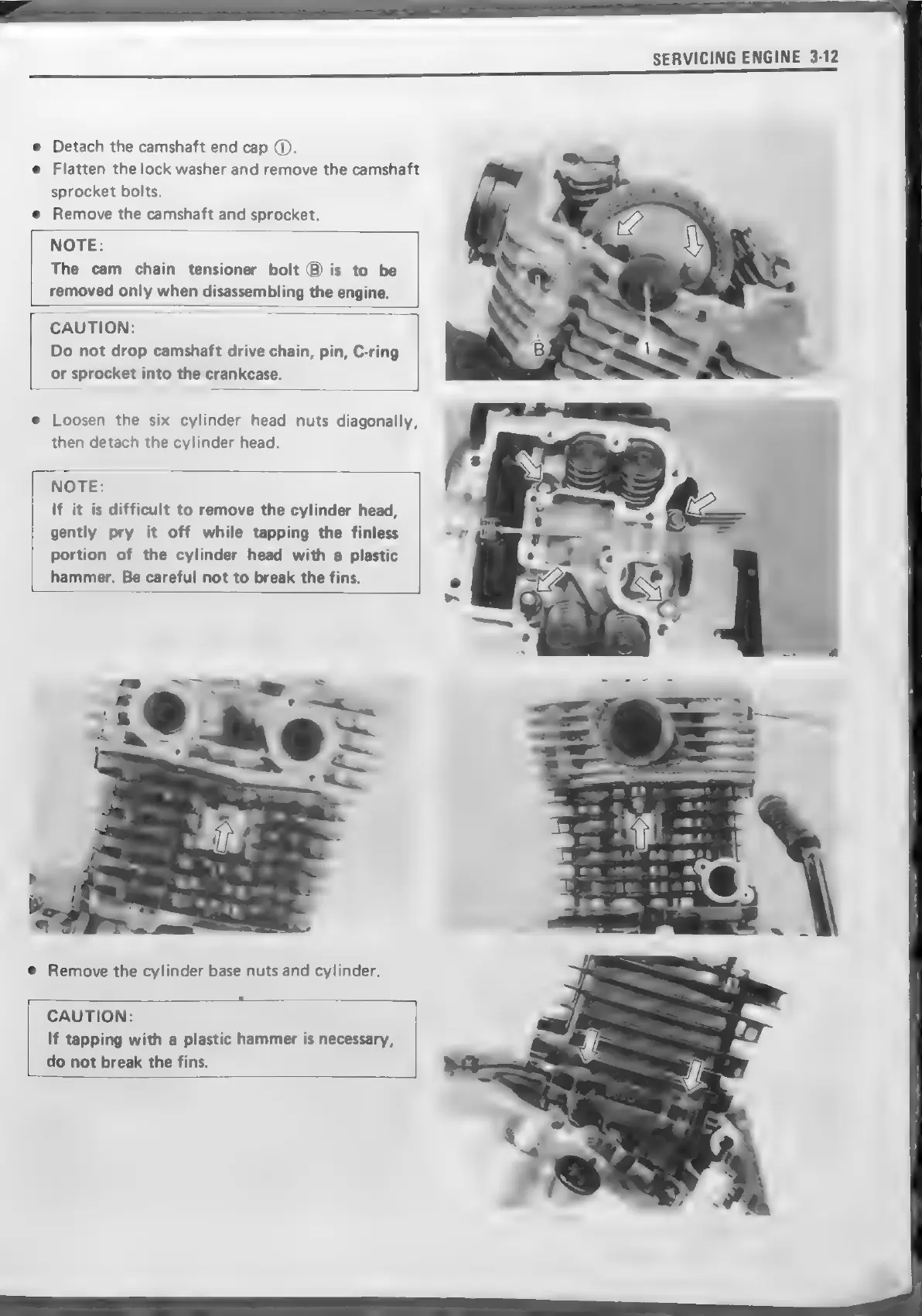

e Detach the camshaft end cap (1).
e Flatten the lock washer and remove the camshaft
sprocket bolts.
e Remove the camshaft and sprocket.
NOTE:
The cam chain tensioner bolt ® is to be
removed only when disassembling the engine.
CAUTION:
Do not drop camshaft drive chain, pin, C-ring
or sprocket into the crankcase.
e@ Loosen the six cylinder head nuts diagonally,
then detach the cylinder head.
NOTE:
If it is difficult to remove the cylinder head,
gently pry it off while tapping the finless
portion of the cylinder head with a plastic
hammer. Be careful not to break the fins.
SERVICING
ENGINE
3-12
@ Remove the cylinder base nuts and cylinder.
4
CAUTION:
If tapping with a plastic hammer is necessary,
do not break the fins.
