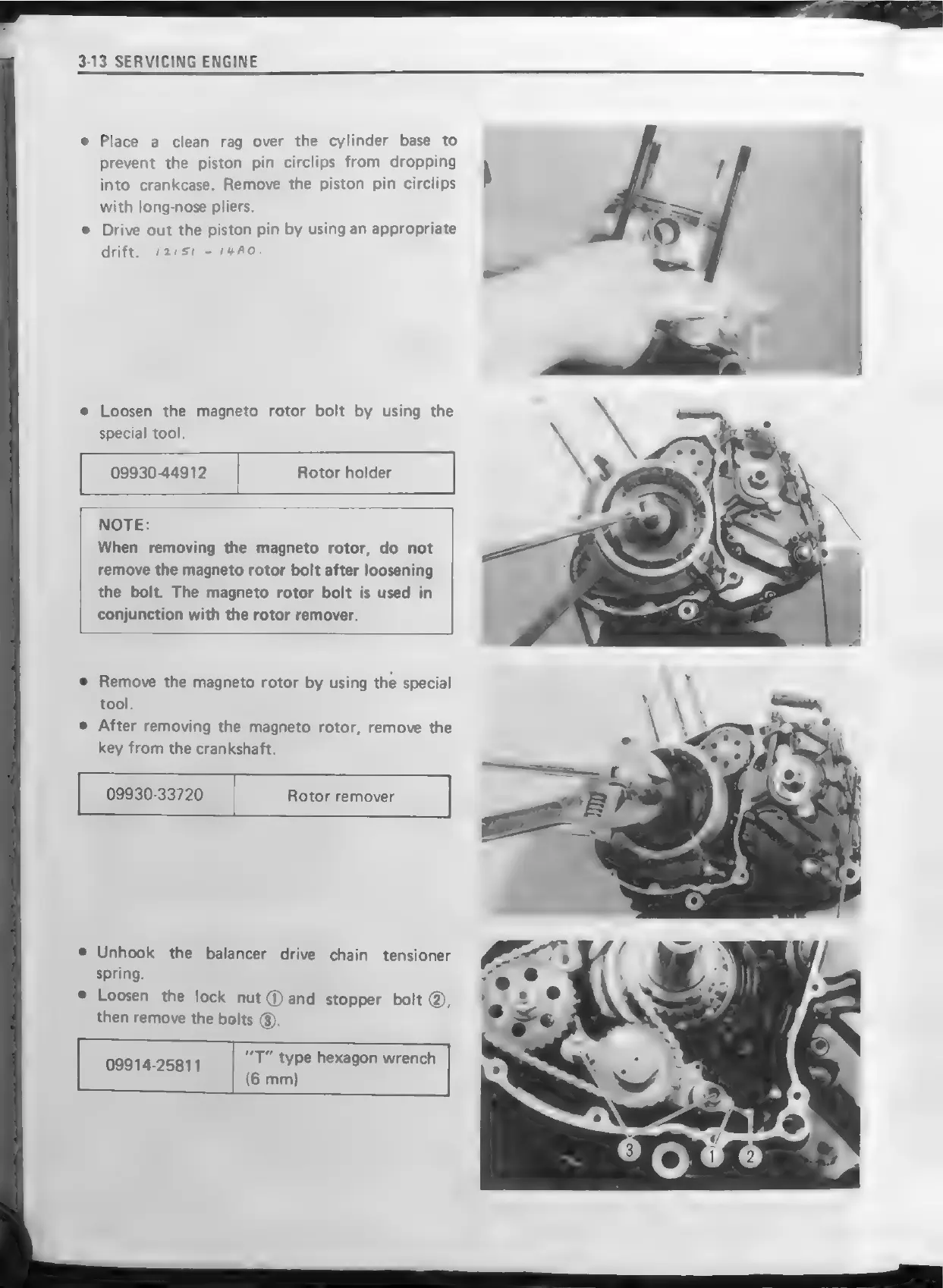

3-13 SERVICING ENGINE
e Place a clean rag over the cylinder base to
prevent the piston pin circlips from dropping
into crankcase. Remove the piston pin circlips
with long-nose pliers.
e Drive out the piston pin by using an appropriate
drift. :2:51 - /¢AO0
@ Loosen the magneto rotor bolt by using the
special tool.
09930-44912 Rotor holder
NOTE:
When removing the magneto rotor, do not
remove the magneto rotor bolt after loosening
the bolt. The magneto rotor bolt is used in
conjunction with the rotor remover.
e@ Remove the magneto rotor by using the special
tool.
e After removing the magneto rotor, remove the
key from the crankshaft.
@
Unhook
the
balancer
drive
chain
tensioner
spring.
©
Loosen
the
lock
nut
@
and
stopper
bolt
@,
then
remove
the
bolts
@),
09914-25811 “T” type hexagon wrench
(6 mm)
