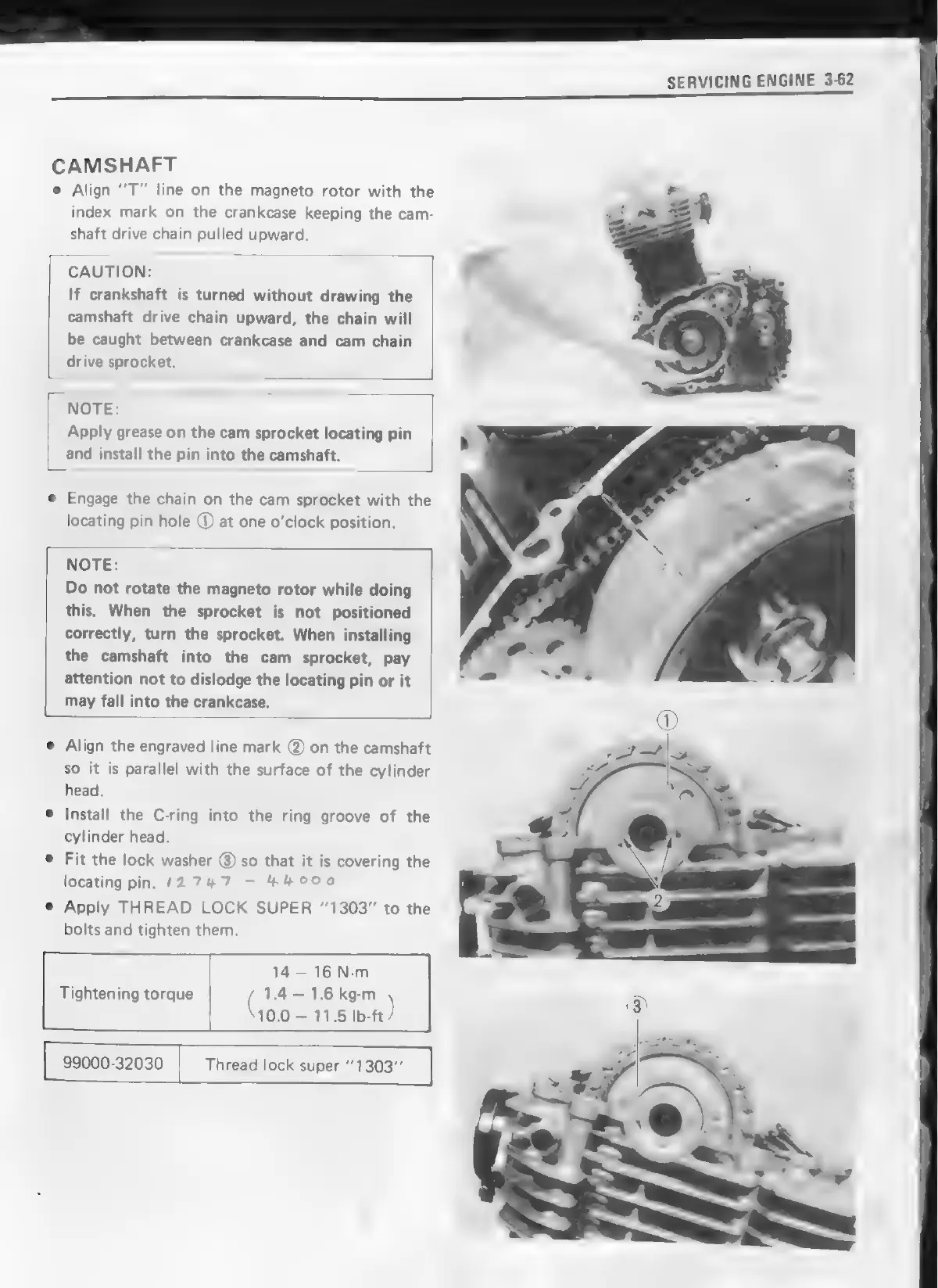

CAMSHAFT
e
Align
‘’T”
line
on
the
magneto
rotor
with
the
index
mark
on
the
crankcase
keeping
the
cam-
shaft
drive
chain
pulled
upward.
CAUTION:
If
crankshaft
is
turned
without
drawing
the
camshaft
drive
chain
upward,
the
chain
will
be
caught
between
crankcase
and
cam
chain
drive
sprocket.
NOTE:
Apply
grease
on
the
cam
sprocket
locating
pin
and
install
the
pin
into
the
camshaft.
e@
Engage
the
chain
on
the
cam
sprocket
with
the
locating
pin
hole
@
at
one
o'clock
position.
NOTE:
Do
not
rotate
the
magneto
rotor
while
doing
this.
When
the
sprocket
is
not
positioned
correctly,
turn
the
sprocket.
When
installing
the
camshaft
into
the
cam
sprocket,
pay
attention
not
to
dislodge
the
locating
pin
or
it
may
fall
into
the
crankcase.
@
Align
the
engraved
line
mark
(@)
on
the
camshaft
so
it
is
parallel
with
the
surface
of
the
cylinder
head.
@
Install
the
C-ring
into
the
ring
groove
of
the
cylinder
head.
@
Fit
the
lock
washer
@)
so
that
it
is
covering
the
locating
pin.
12747
-
44
C00
e
Apply
THREAD
LOCK
SUPER
“1303”
to
the
bolts
and
tighten
them.
14-—16N.m
Tightening
torque
(
1.4
1.6
kg-m
)
‘10.0
11.5
lb-ft
/
99000-32030
|
Thread
lock
super
a
SERVICING
ENGINE
3-62
