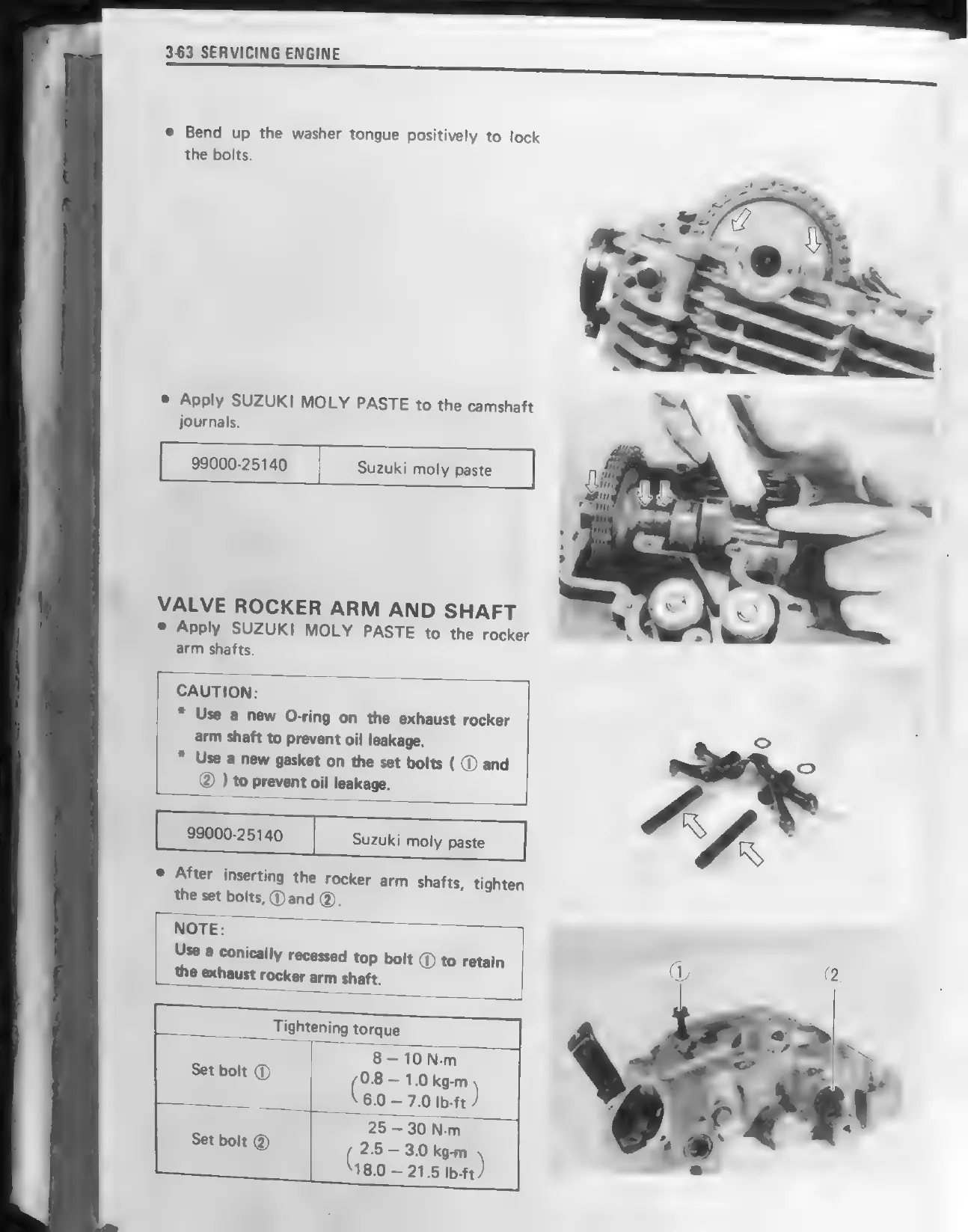

3-63 SERVICING ENGINE
@
Bend
up
the
washer
tongue
Positively
to
lock
the
bolts.
e
Apply
SUZUKI
MOLY
PASTE
to
the
camshaft
journals.
VALVE
ROCKER
ARM
AND
SHAFT
©
Apply
SUZUKI
MOLY
PASTE
to
the
rocker
arm
shafts.
CAUTION:
*
Use
a
new
O-ring
on
the
exhaust
rocker
arm
shaft
to
prevent
oil
leakage.
*
Use
a
new
gasket
on
the
set
bolts
(
(1)
and
(2)
)
to
prevent
oil
leakage.
©
After
inserting
the
rocker
arm
shafts,
tighten
the
set
bolts,
@®and
@).
NOTE:
Use
a
conically
recessed
top
bolt
©
to
retain
the
exhaust
rocker
arm
shaft.
Tightening
torque
8-—10N-m
the
—
1.0
kg-m
)
6.0
—
7.0
Ib-ft
25 — 30 N-m
(
2.5—3.0
kg-m
)
18.0
—
21.5
Ib-ft
Set bolt @
Set bolt @
