6-1-84 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
DTC P0335 Crankshaft Position Sensor Circuit Malfunction

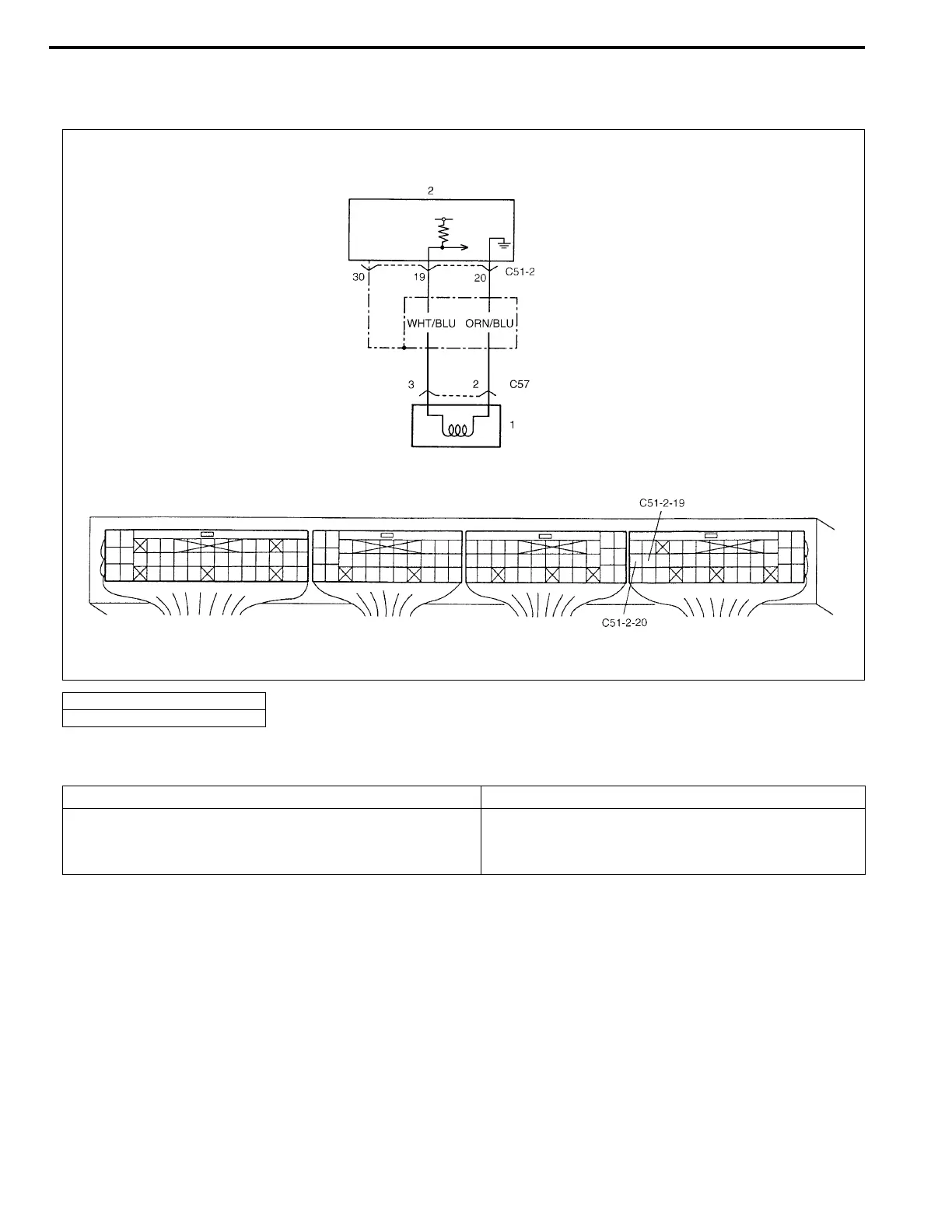

WIRING DIAGRAM
DTC DETECTING CONDITION AND TROUBLE AREA
DTC CONFIRMATION PROCEDURE
1) Connect scan tool to DLC with ignition switch OFF.
2) Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and run
engine at idle speed for 10 sec.
3) Check DTC by using scan tool.
1. CKP sensor
2. ECM (PCM)
DTC DETECTING CONDITION TROUBLE AREA
CKP sensor signal is not input while 100 pulses of
CMP sensor signal are input after engine start.
CKP sensor circuit
CKP sensor
ECM (PCM)
NOTE:
Check to make sure that following condition is satisfied when using this “DTC CONFIRMATION PRO-
CEDURE”.
• Intake air temp. : – 8°C (18°F) or higher
• Engine coolant temp. : – 8 – 110°C (18 – 230°F)
• Altitude (barometric pressure) : 2400 m, 8000 ft or less (560 mmHg (75 kPa) or more)
To Next Page
