9-4 BODY SERVICE

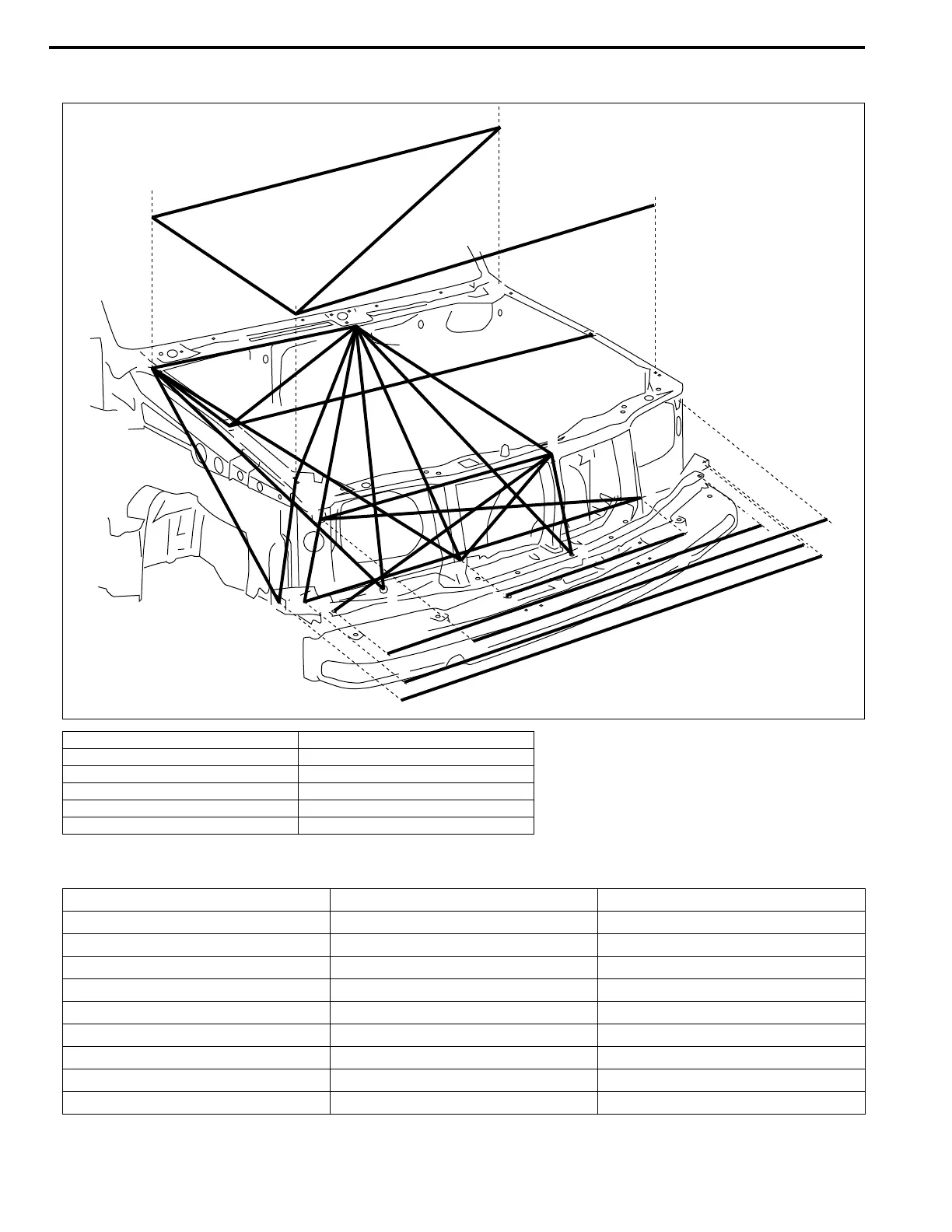

Body Dimensions
Hole to hole distance :
a. Front bumper installation clip hole g. Center member installation hole
b (b’). Front bumper installation hole h (h’). Fender installation reference hole
c (c’). Headlight installation hole i (i’). Fender installation hole
d (d’). Headlight installation resin nut hole j (j’). Fender installation reference hole
e (e’). Headlight installation bolt hole k. Cowl top panel center hole (
φ
6)
f (f’). Front fender installation bolt hole l. Mounting installation hole
k
j’
j’
h’
j
j
i
h
h
f
e
b
l
c
c
g
a
c’
i’
d
b’
c’
d’
f’
e’
f
e
b
d
a – g : 276 mm (10.87 in.) d – d’ : 1302 mm (51.26 in.) h – j : 677 mm (26.65 in.)
a – k : 1000 mm (39.37 in.) d – e : 189 mm (7.44 in.) h – j’ : 1504 mm (59.21 in.)
b – b’ : 1370 mm (53.94 in.) d – g : 672 mm (26.46 in.) h – k : 927 mm (36.50 in.)
b – g : 730 mm (28.74 in.) d – k : 968 mm (38.11 in.) i – i’ : 1344 mm (52.91 in.)
c – c’ : 668 mm (26.30 in.) e – e’ : 1456 mm (57.32 in.) i – j : 391 mm (15.39 in.)
c – e : 414 mm (16.30 in.) f – f’ : 1550 mm (61.02 in.) i – k : 760 mm (29.92 in.)
c – g : 406 mm (15.98 in.) f – h : 299 mm (11.77 in.) j – j’ : 1348 mm (53.07 in.)
c – j : 1029 mm (40.51 in.) f – j : 811 mm (31.93 in.) j – k : 676 mm (26.61 in.)
c – k : 1000 mm (39.37 in.) g – k : 854 mm (33.62 in.) l – j : 961 mm (37.83 in.)
d – c’ : 1016 mm (40.00 in.) h – h’ : 1339 mm (52.72 in.) l – k : 1018 mm (40.08 in.)
