BODY SERVICE 9-19
Exterior and Interior Trim
Floor Carpet
Front floor carpet
REMOVAL
1) Remove front and second seats.
2) Remove third seat cushion (if equipped).
3) Remove front and second seat belt lower anchor bolts.
4) Remove dash side trims (1), front side sill scuffs (2), center
pillar inner lower trims (3), rear side sill scuffs (4) and rear
quarter lower trims (5).
5) Remove parking brake lever cover, console box and console
box front extension.
6) Remove front floor carpet.
INSTALLATION
Reverse removal sequence to install front floor carpet noting the
following point.
• Tighten seat belt anchor bolts as specified torque referring to
Section 10A.

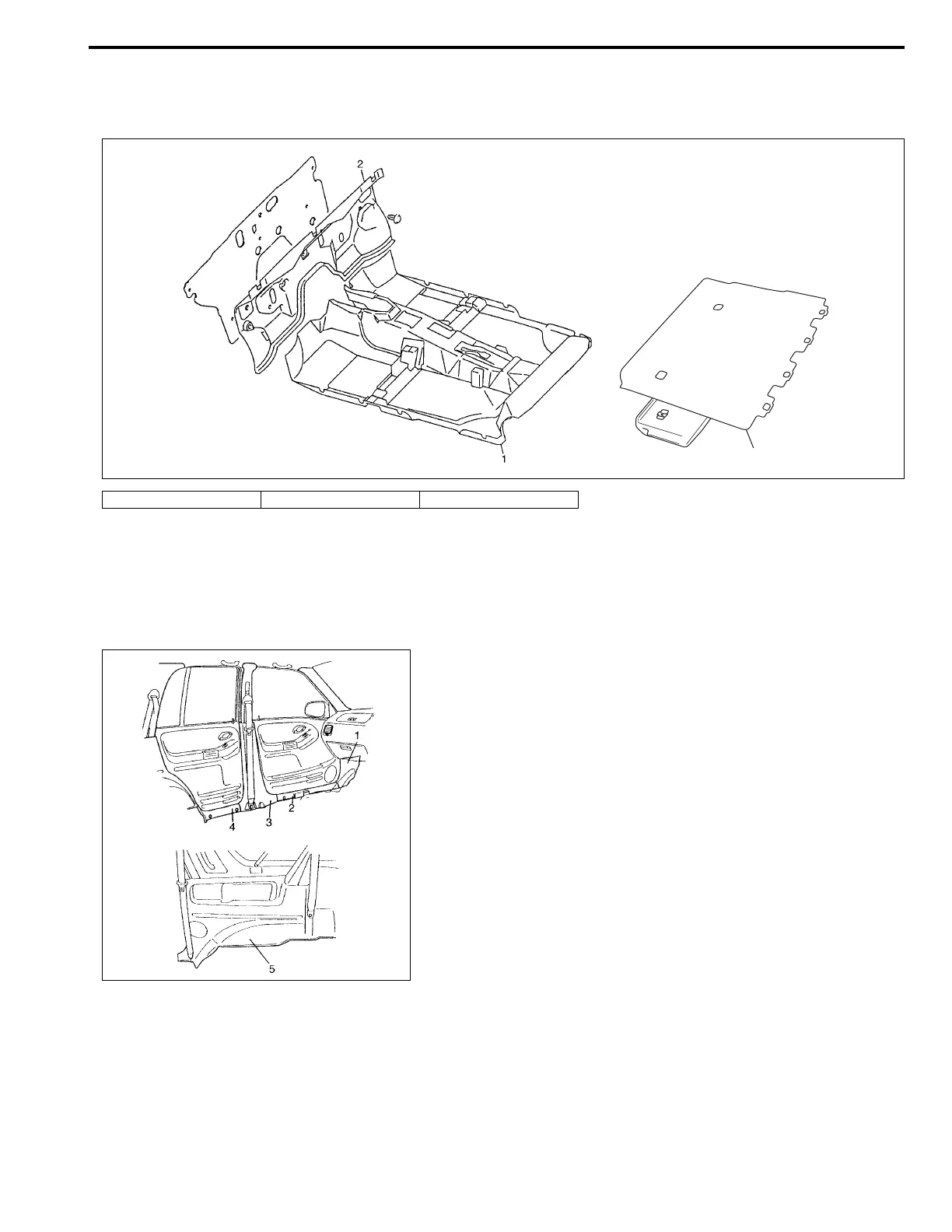

1. Front floor carpet 2. Dash panel insulation 3. Rear floor carpet
3
To Next Page
