6-1-116 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
Table B-1 Fuel Pump Circuit Inspection

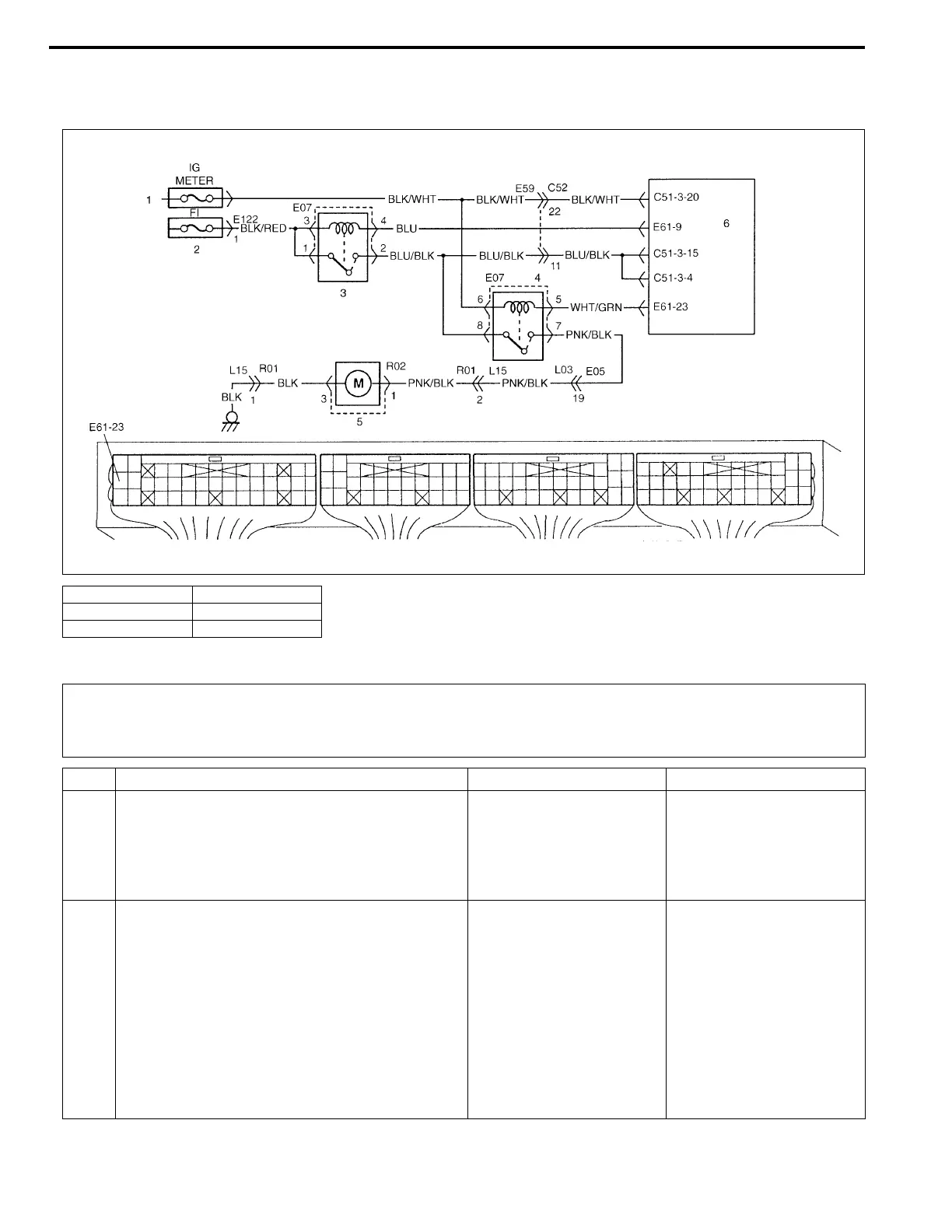

WIRING DIAGRAM
INSPECTION
1. To ignition switch 4. Fuel pump relay
2. Main fuse 5. Fuel pump
3. Main relay 6. ECM (PCM)
CAUTION:
Check to make sure that connection is made between correct terminals.
Wrong connection can cause damage to ECM, wire harness etc.
Step Action Yes No
1 Fuel pump operation check :
1) Remove fuel filler cap.
2) Turn ON ignition switch.
Is fuel pump operation sound heard for 3 sec.
after ignition switch ON?
Fuel pump circuit is in
good condition.
Go to Step 2.
2 Fuel pump circuit check :
1) With ignition switch OFF, remove fuel pump
relay from connector.
2) Check for proper connection to relay at
each terminal.
3) If OK, using service wire, connect terminals
E07-7 and E07-8 of relay connector. (See
Fig.)
Is fuel pump heard to operate at ignition switch
ON?
Go to Step 3. “BLU/BLK”, “PNK/BLK” or
“BLK” circuit open or fuel
pump malfunction.
