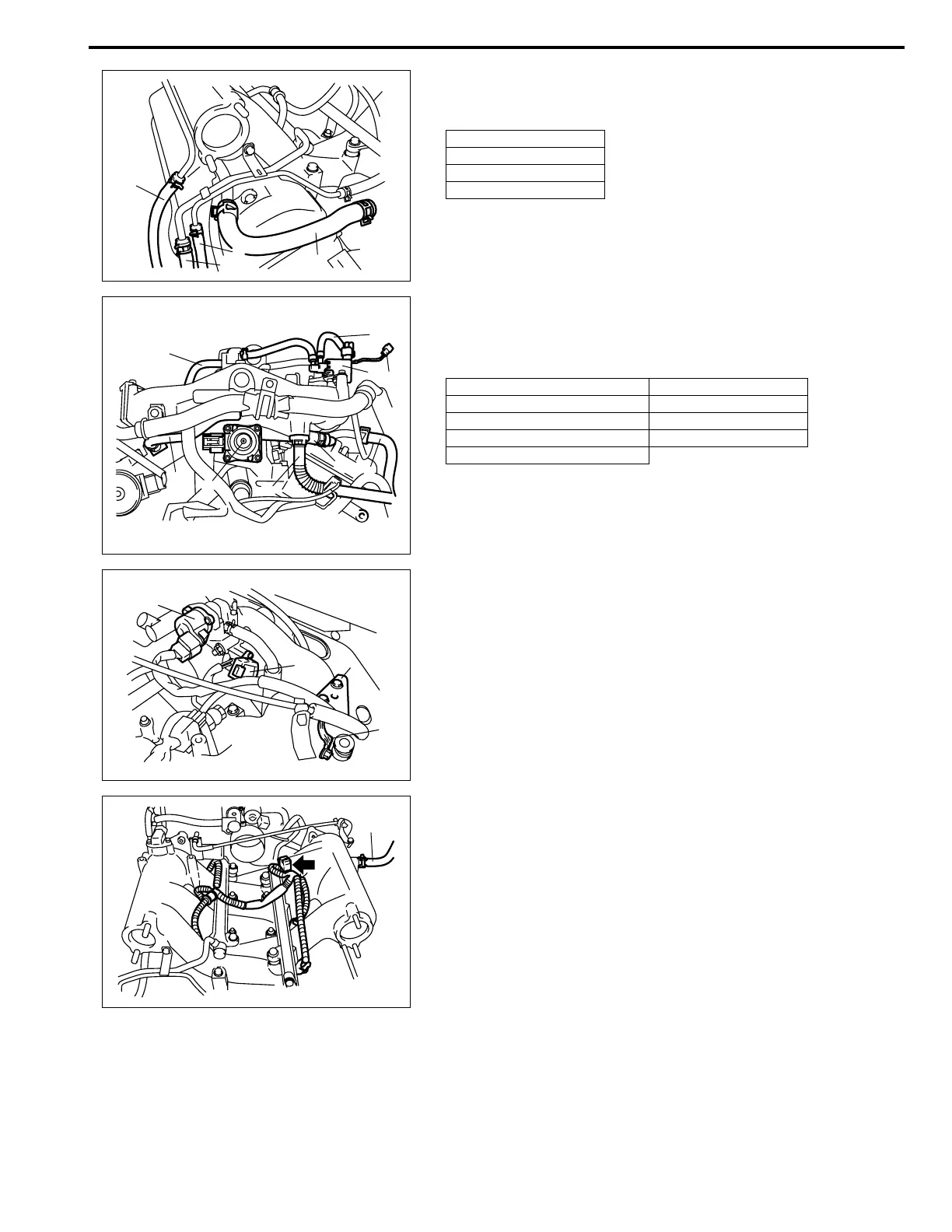

ENGINE MECHANICAL (H27 ENGINE) 6A2-7
6) Connect hoses of heater, EVAP canister, fuel feed and fuel
return.
7) Install EGR pipe with new gaskets.
8) Connect hoses of EVAP canister purge valve and heater.
9) Connect hoses of PCV, breather and water.
10) Connect couplers of manifold absolute pressure (MAP) sen-
sor, EVAP canister purge valve and EGR valve.
Fix wire harness with clamps.
11) Install clamp bracket (4) to intake collector.
12) Connect earth terminal (3) to intake collector.
13) Connect couplers of TP sensor (1) and IAC valve (2).
14) Connect brake booster hose (2) to intake manifold.
15) Connect injector wire (1) coupler.
1. Heater hose
2. Fuel feed hose
3. Fuel return hose
4. EVAP canister hose
1
3
2
4
1. EVAP canister purge valve 6. PCV hose
2. EGR valve 7. Water hose
3. EGR pipe 8. Breather hose
4. EVAP canister purge valve hose 9. Earth terminal coupler
5. Heater hose
9
4
1
7
6
2
3
5
8
2
1
4
3
2
1
To Next Page
