REAR SUSPENSION 3E-3

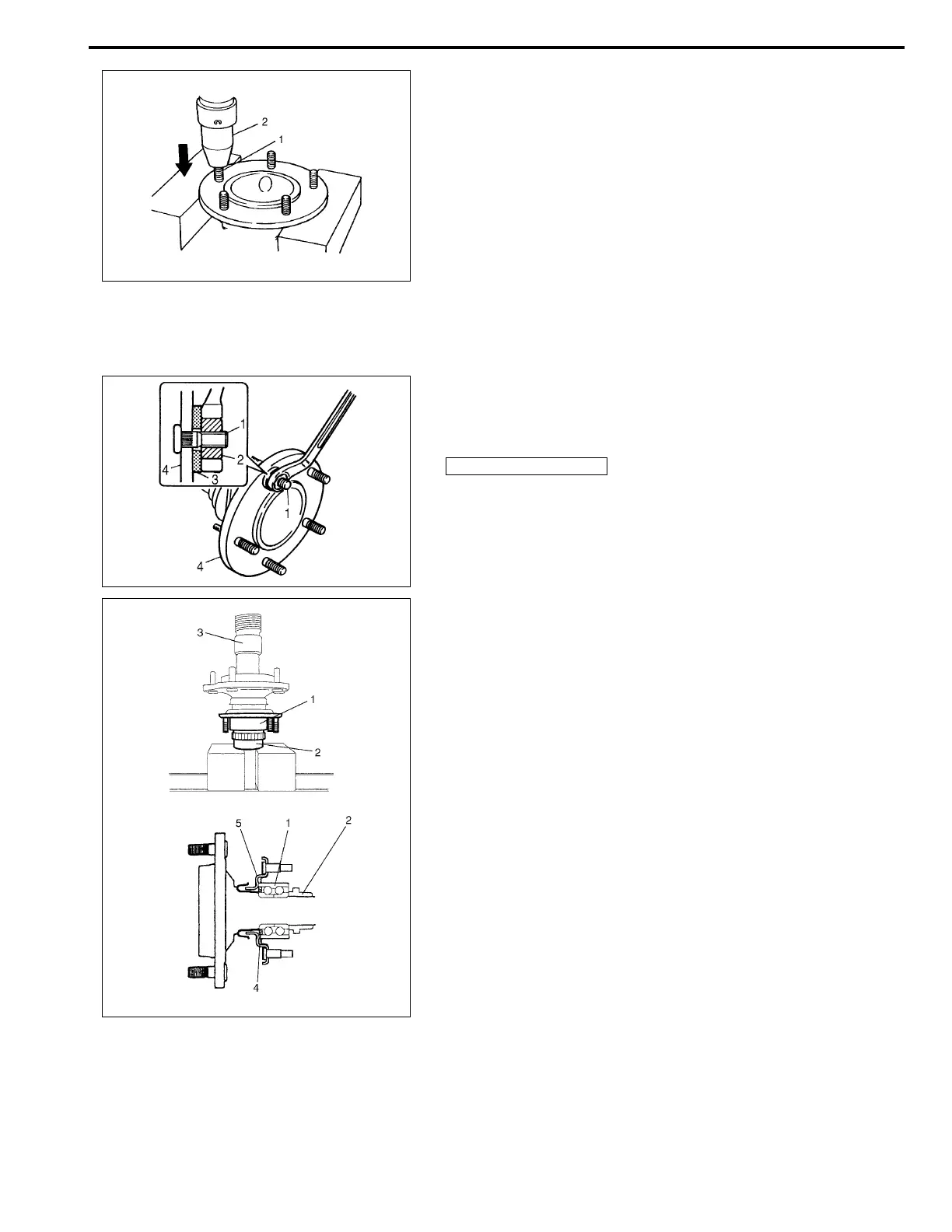

6) Remove stud bolt(s) (1) by using hydraulic press (2).
INSTALLATION
Install removed parts in reverse order of removal procedure, not-
ing the following.
1) Aligning serrations between new stud bolt(s) (1) and flange
(4), install new stud bolt(s) (1) by tightening nut (2) as shown
in the figure.
2) Install bearing retainer (2) to axle shaft (1).
3) Press fit new wheel bearing (1) and new retainer ring (2)
using press (3).
4) Install circlip to axle shaft.
3. Washer
NOTE:
• Use care not to cause any damage to outside of
retainer ring (2).
• Seal side (4) of wheel bearing must face bearing
retainer (5) side.
